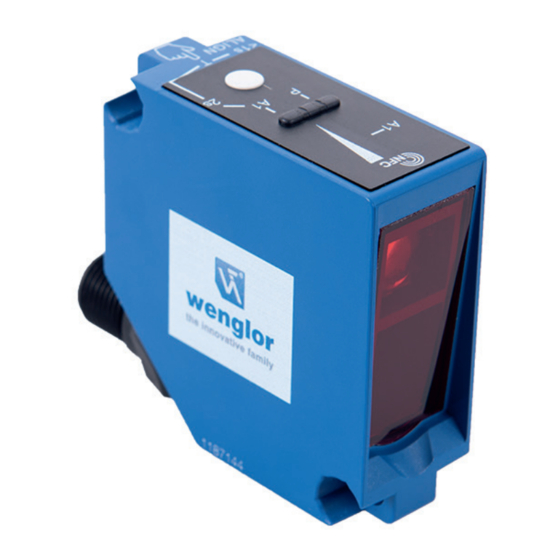

- Page 1 P1PKxxx Retro-Reflex Sensors for Transparent Objects High-End with Teach-in Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 08.08.2019 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General �������������������������������������������������������������������������������������������������������������������������������������� 4 1.1 Information Concerning these Instructions .....................4 1.2 Explanations of Symbols ........................4 1.3 Limitation of Liability ..........................5 1.4 Copyrights ...............................5 2. For Your Safety ������������������������������������������������������������������������������������������������������������������������ 6 2.1 Use for Intended Purpose ........................6 2.2 Use for Other than the Intended Purpose ....................6 2.3 Personnel Qualifications .........................7 2.4 Modification of Products .........................7 2.5 General Safety Precautions ........................7... - Page 3 12� Appendix ��������������������������������������������������������������������������������������������������������������������������������� 21 12.1 List of Abbreviations ...........................21 12.2 Change Index, Operating Instructions ....................21 12.3 EU Declaration of Conformity ......................21 Retro-Reflex Sensors for Transparent Objects...
-
Page 4: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 5: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 6: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 7: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 8: Technical Data
3� Technical Data P1PK Order Number Technical Data Optical Data Range 3,500 mm Reference reflector RQ100BA Clear glass recognition Switching hysteresis < 5 % Light source Red light Polarization filter Service life (ambient temp. = +25° C) 100,000 h Max. permissible ambient light 10,000 Lux Aperture angle 3°... -
Page 9: Spot Diameter
3�6�1 Spot diameter Range 0,3 m 1,7 m 3,5 m Spot diameter 20 mm 55 mm 110 mm Table 1 3�6�2 Smallest detectable part Range 0,3 m 1,7 m 3,5 m Smallest detectable part 1 mm 5 mm 10 mm Table 2 3�6�3 Switching distance Achievable switching distance depends on the utilized reflector. -
Page 10: Complementary Products
3�1 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. IO-Link master wTeach2 software DNNF005 3�2 Layout 1= Optical axis M4 screw = 0,5 Nm Dimensions specified in mm (1 mm = 0.03937”) -
Page 11: Control Panel
3�3 Control Panel 2a = NFC interface 06 = teach-in key 30 = switching status indicator / contamination warning 60 = Display 68 = supply power indicator 3�4 Scope of Delivery • Sensor • Safety precautions • Mounting-Set 14 • Spacer sleeves Z1PE002 4�... -
Page 12: Installation And Electrical Connection
5� Installation and Electrical Connection 5�1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 13: Diagnostics
DANGER! Risk of personal injury or property damage due to electric current! Voltage conducting parts may cause personal injury or damage to equipment. • The electric device may only be connected by appropriately qualified personnel. 5�3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination... - Page 14 • Shut down the machine. • Analyze and eliminate the cause of error with the help of the diagnostics information. • If the error cannot be eliminated, please contact wenglor’s support department. • Do not operate in case of indeterminate malfunctioning.
-
Page 15: Settings
6� Settings 6�1 Alignment • Briefly press the teach-in key (< 1 second). • The display is switched to the alignment mode. • Align the sensor to the reflector. The light path must not be obstructed by any objects. No Signal or Weak Signal Adequate Signal from the Strong Signal from the from the Reflector... -
Page 16: Teach-In
6�2 Teach-In • Press and hold the teach-in key until the switching status indicator LED starts blinking. • Release the teach-in key after 2 seconds. • Teach-in is conducted and the switching status indicator LED lights up in acknowledgment. 3 LEDs above A1 light up at the LED display. -
Page 17: 7� Functions Overview
7� Functions Overview Further settings can be entered to the sensor via IO-Link or NFC. 7�1 Teach-In Mode 7�1�1 Minimal Teach-In (default setting) With this teach-in mode, the switching point is to a value just below momentary signal strength in considera- tion of signal quality. -
Page 18: Pin Function, E/Ao2
7�3 Pin Function, E/AO2 The function of E/A2 can be configured either as an output or an input. 7�3�1 Input External Teach-In Teach in output A1 via the teach-in input. 1. Set the E/A2 pin function to external teach-in. With Ub setting active (default): 2. -
Page 19: Additional Functions And Settings Via Io-Link
Android smartphone and wenglor’s “Sensor Configurator” app. Process data cannot be read out via NFC but they’re available via IO-Link. The wenglor app can be downloaded free of charge from the Google Play Store. Download the app and follow the installation instructions. - Page 20 HINWEIS! • Bei jedem Smartphone befindet sich die NFC Antenne an einer anderen Stelle • Wo genau die Antenne sich befindet ist aus der Bedienungsanleitung des Smartphones zu entnehmen If a connection isn’t established immediately, move the smartphone across the sensing face until connection is successful.
-
Page 21: 10� Maintenance Instructions
12�2 Change Index, Operating Instructions Version Date Description/Change 1.0.0 08.08.19 Initial version of the operating instructions 12�3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Retro-Reflex Sensors for Transparent Objects...
