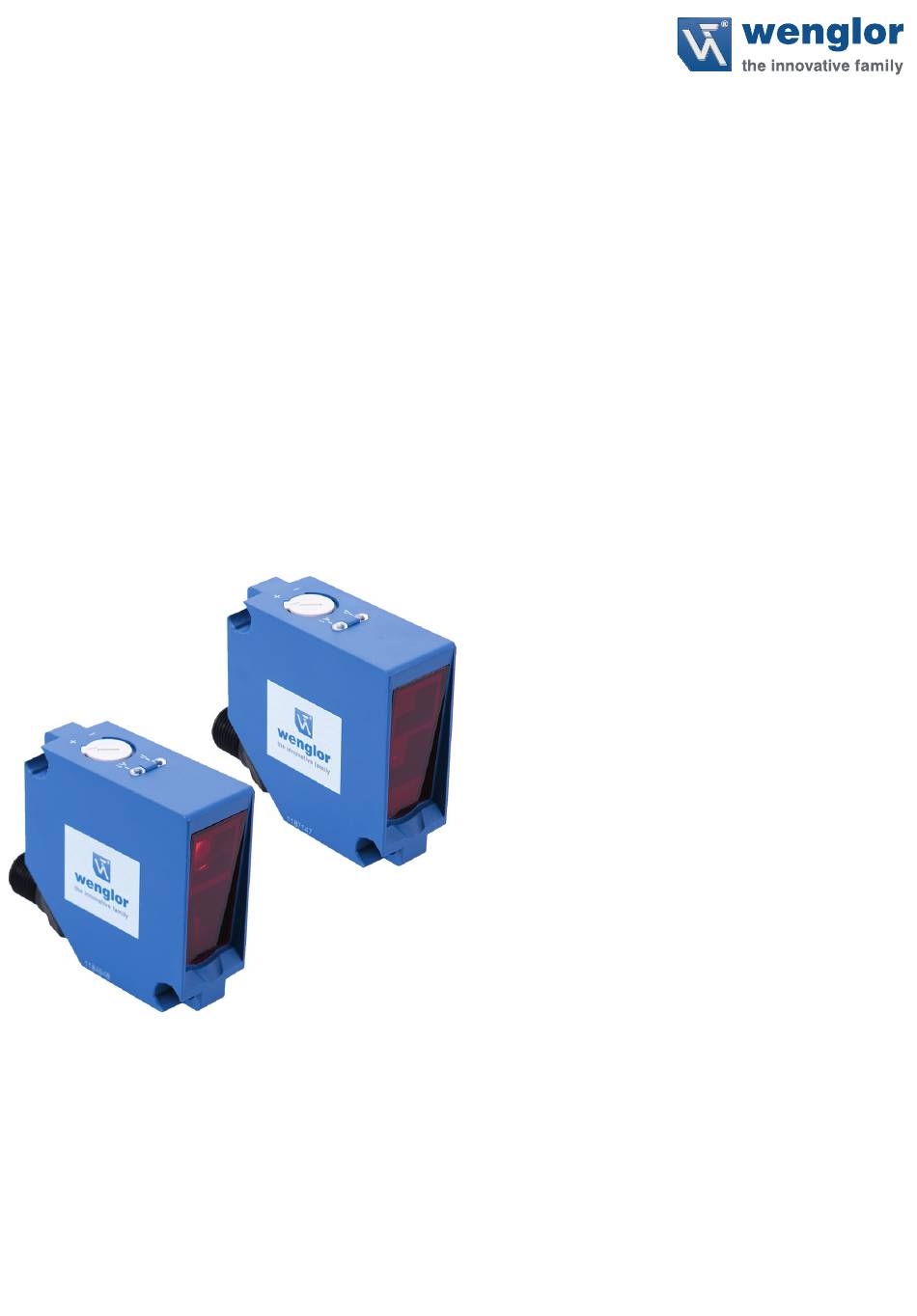

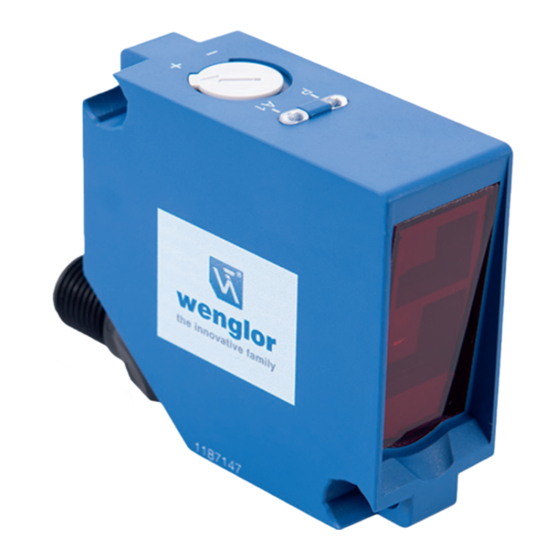

- Page 1 P1PLxxx Retro-Reflex Sensor Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 31.08.2018 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ..........................3 1.1 Information Concerning these Instructions .....................3 1.2 Explanations of Symbols .........................3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose ....................5 2.3 Personnel Qualifications ..........................6 2.4 Modification of Products .........................6 2.5 General Safety Precautions ........................6... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data Optical Data Polarisation Filter Service life (ambient temp. = +25° C) 100000 h Max. permissible ambient light 10000 Lux Electrical Data Supply power 10…30 V DC Supply power IO-Link 18…30 V DC Temperature drift < 10 % Temperature range −40…60 °C Current consumption (operating voltage = 24 V) -
Page 8: Spot Diameter
3.7.1 Spot diameter Range 1,5 m 3,5 m Spot diameter 60 mm 120 mm 250 mm Table 1 Range 5,5 m 11 m Spot diameter 120 mm 270 mm 500 mm Table 2 Range 9,5 m Spot diameter 20 mm 50 mm 70 mm Table 3... -
Page 9: Switching Distance
3.7.3 Switching distance Achievable switching distance depends on the utilized reflector. Nominal switching distance is achieved with reflector types RQ100BA (red light) and RE6151BM (laser). Achievable ranges for other reflectors are listed in the following tables: Red Light Laser Reflector Single-Lens Optic Two-Lens Optic Single-Lens Optic... -
Page 10: Complementary Products
3.1 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. IO-Link master wTeach2 software DNNF005 3.2 Layout P1PL101, P1PL102 1 = Optical axis Technical Data... - Page 11 P1PL201, P1PL202 1 = Emitter diode 2 = Receiver diode P1PL301, P1PL302 1 = Optical axis 2 = Receiver diode M4 screw = 0,5 Nm Potentiometer = 40 Nmm Dimensions specified in mm (1 mm = 0.03937”) Retro-Reflex Sensor...
-
Page 12: Control Panel
3.3 Control Panel 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.4 Scope of Delivery • Sensor • Safety precautions • Mounting-Set 14 • Spacer sleeves Z1PE002 Technical Data... -
Page 13: Transport And Storage
4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit. -
Page 14: Electrical Connection
5.2 Electrical Connection Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Supply Voltage 0 V Encoder A Test Input Supply Voltage (AC Voltage) Encoder B Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Switching Output... -
Page 15: Diagnostics
5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking Aged emitter diode Replace the sensor. at approx. 2.5 Hz • Increase the sensor’s switching distance. Unreliable working range •... -
Page 16: Settings
• Turn the potentiometer back if required (detection of small or transparent objects). • Move the object into the sensor’s working range and check for correct functioning. 7. I/O-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. Settings... -
Page 17: Maintenance Instructions
10.2 Change Index, Operating Instructions Version Date Description/Change 1.0.0 08.11.18 Initial version of the operating instructions 10.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Retro-Reflex Sensor...
