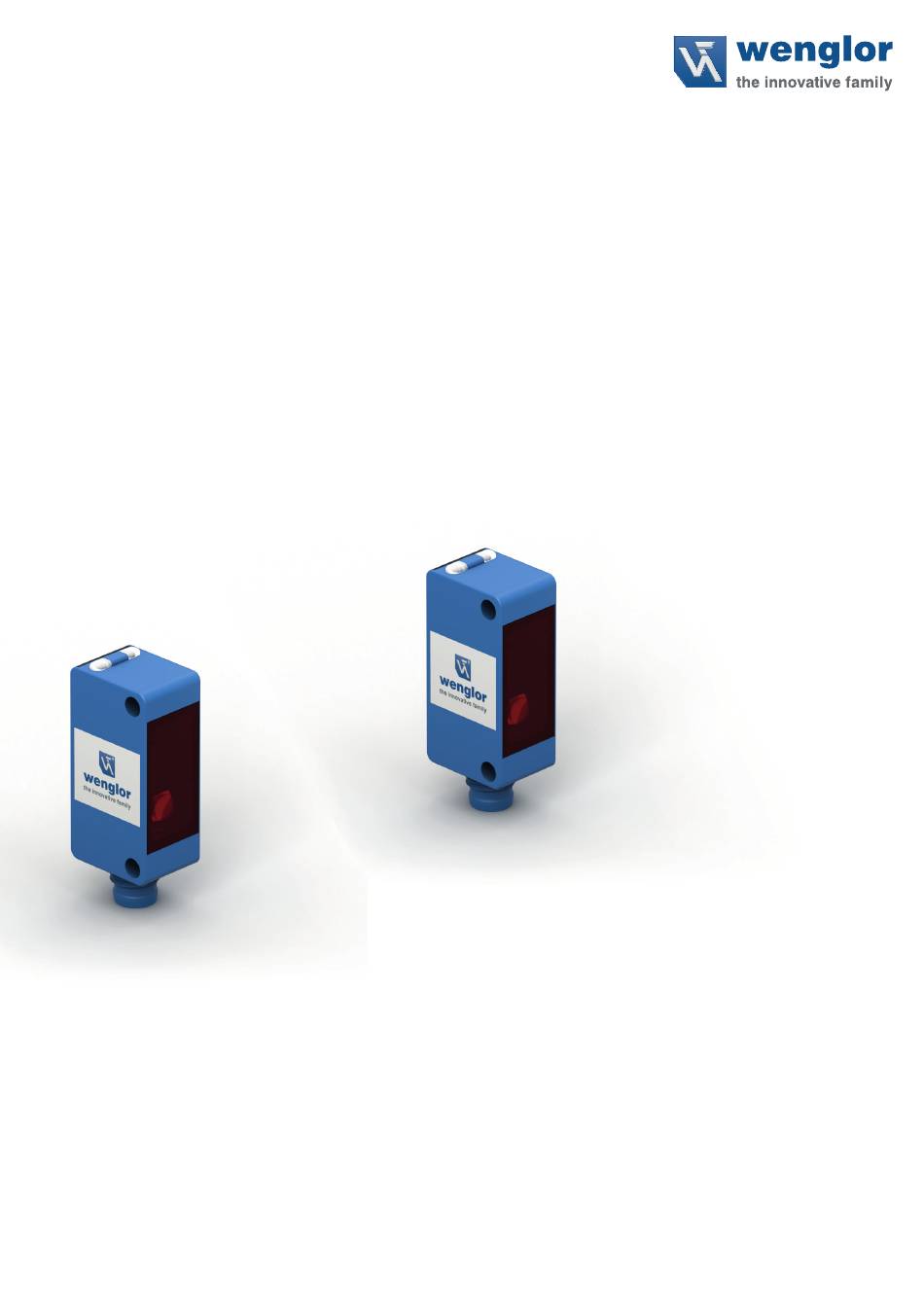

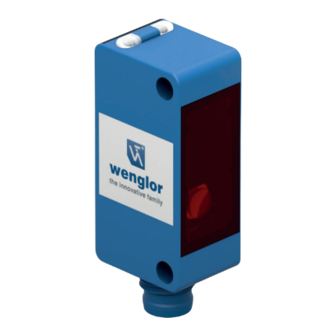

- Page 1 P1KExxx P1KSxxx Through-Beam Sensors Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.5.0 Status: 10.11.2023 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ............................3 1.1 Information Concerning these Instructions .....................3 1.2 Explanations of Symbols ........................3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ...............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose ....................5 2.3 Personnel Qualifications .........................6 2.4 Modification of Products .........................6 2.5 General Safety Precautions ........................6... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data 3.1 Technical Data Optical Data Service life (ambient temp. = +25° C) 100000 h Max. permissible ambient light 10000 Lux Electrical Data Supply power 10…30 V DC IO-Link supply voltage 18…30 V DC Temperature drift < 10 % Temperature range −40…60 °C Switching output voltage drop... -
Page 8: Spot Diameter
Order No. P1KS P1KE 001 002 002 003 004 005 006 008 009 012 007 010 019 Technical Data Emitter Receiver Sensor Type 10.000 6.000 Range 6.000 mm 6.000 mm 10.000 mm Laser Light Source Red Light Red Light Laser (red) (red) Light Laser Class... -
Page 9: Smallest Detectable Part
Smallest detectable part 2,5 mm 1,0 mm 1,5 mm Table 4 3.2 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. PNP-NPN converter BG7V1P-N-2M IO-Link master wTeach2 software DNNF005... -
Page 10: Layout
3.3 Layout P1KE001, P1KE003, P1KE005, P1KE008 = Receiving diode = Alignment tool / switching status indicator P1KS001 = Emitter diode P1KE002, P1KE004, P1KE006, P1KE007, P1KE008, P1KE010, P1KE012, P1KE019 = Receiving diode = Alignment tool / switching status indicator Technical Data... -
Page 11: Control Panel
P1KS002, P1KS003, P1KS005 = Emitter diode Screw M3 = 0,5 Nm Potentiometer = 40 Nmm Dimensions specified in mm (1 mm = 0,03937 Inch) 3.4 Control Panel Receiver Emitter 04 = Function indicator 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.5 Scope of Delivery •... -
Page 12: Transport And Storage
4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit. -
Page 13: Electrical Connection
5.2 Electrical Connection Through-Beam Sensors... -
Page 14: Diagnostics
Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Switching Output (NC) Digital output MAX... - Page 15 Contamination Warning Flowcharts Through Beam Sensor no contamination Emitter Emitter Emitter Object Object Object Receiver Receiver Receiver Object not detected detected not detected Switching Status Indicator beginning contamination Emitter Emitter Emitter Object Object Object Receiver Receiver Receiver not detected detected not detected Object Switching Status Indicator...
-
Page 16: Settings
If it is connected with plus, the sensor switches off. The barrier is tested via this changing of the switching status. 7. IO-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. Settings... -
Page 17: Maintenance Instructions
3 “Technical Data” on page 7 1.5.0 10.11.23 new type, see 3 “Technical Data” on page 7 (P1KE019) 10.3 Declarations of Conformity The declarations of conformity can be found on our website at www.wenglor.com in the product’s download area. Through-Beam Sensors...
