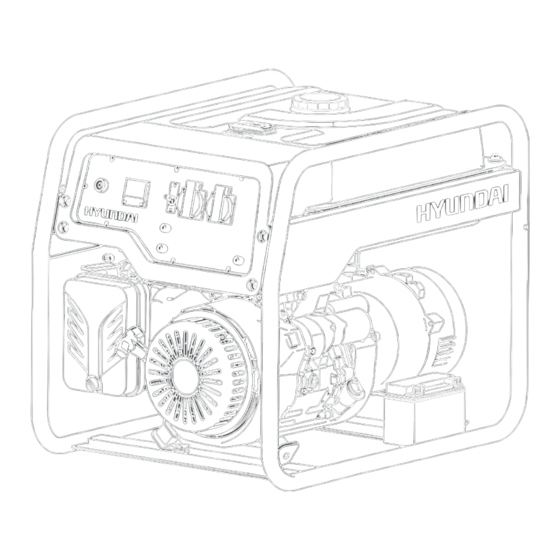

- Page 1 Petrol Generators HOME SERIES User’s Manual...
-
Page 2: Table Of Contents
CONTENTS 1 . S A F E T Y I N F O R M A T I O N … … … … … … … … … … … … … … … … … … 2 2 . C O N T R O L F U N C T I O N …... -
Page 3: S A F E T Y I N F O R M A T I O N
! WARNING ────────────────────────────────── PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THE MATCHINE. ──────────────────────────────────────── 1．SAFETY INFORMATION 1）EXHAUST FUMES ARE POISONOUS Never operate the engine in a closed area or it may cause unconsciousness and death within a short time. Operate ... -
Page 4: C O N T R O L F U N C T I O N
Avoid connecting the generator in parallel with any other generator. 6）BATTERY No smoking while handing the battery. The battery emits flammable hydrogen gas, which can explode if exposed to electric arcing or open flame. Keep the area well-ventilated and keep open flames/sparks away ... -
Page 5: Pre-Operation Check
3. PRE-OPERATION CHECK NOTE: ────────────────────── Pre-operation checks should be made each time the generator is used. ───────────────────────── 1）CHECK ENGINE FUEL Check fuel level at fuel level gauge. If fuel level is low, refill with unleaded automotive gasoline. Be sure to use the fuel filter screen on the fuel filter neck. ... -
Page 6: Operation
3）GROUND (Earth) Make sure to ground (earth) the generator. 4. OPERATION NOTE: ────────────────────── The generator has been shipped without engine oil. Fill with oil or it will not start. ────────────────────────── 1）STARTING THE ENGINE NOTE: ────────────────────── Before starting the engine, do not connect the electric apparatus. ... - Page 7 3）STOPPING THE ENGINE 1. Turn off the power switch of the electric apparatus or unplug the cord from receptacle of the generator. Turn the AC switch to “OFF”. 2. Turn the engine switch to “OFF”. 3. Turn the fuel cock lever to “OFF”. 4）BATTERY (for electric starting system) 1.
-
Page 8: Periodic Maintenance
5.PERIODIC MAINTENANCE 1) MAINTENANCE CHART Regular maintenance is most important for the best performance and safe operation. Pre- Initial Every Every Every operation Item Remarks check months months months months or100Hr or 300Hr (daily) or 20 Hr or 50Hr Spark Check condition adjust gap and ... - Page 9 2）ENGINE OIL REPLACEMENT Place the machine on a level surface and warm up the engine for several minutes. Then stop the engine. Remove the oil filler cap Place an oil pan under the engine. Remove the oil drain plug so that the oil can be completely drained.
- Page 10 5）FUEL COCK Stop the engine. Turn the fuel cock lever to “OFF”. Clean with solvent. Wipe off. Check the gasket. Replace it if damaged. ! WARNING ─────────── BE sure the fuel cock cup is tightened securely. ──────────────── 6）FUEL TANK FILTER ①...
- Page 11 6．TROUBLE SHOOTING ENGINE TROUBLE SHOOTING Condition Probable Cause Corrective Action Loose spark plug Tighten plug properly Insufficient Loose cylinder Tighten bolt properly compression head bolt Damaged gasket Replace gasket Insufficient Pull rope sharply pulling speed for Fuel systems problems Engine starting rope won't start No fuel supplied...
- Page 12 GENERATOR TROUBLE SHOOTING Condition Probable Cause Corrective Action Tripped circuit Reset breaker Poor Connection Check and Repair or faulty lead Indicator light ON No AC output Broken Receptacle Faulty circuit Check and Repair breaker Indicator light OFF Generator problem No AC output Tripped circuit Reset breaker...
-
Page 13: S T O R A G
1）Engine won’t start 1. Fuel systems No fuel supplied to combustion chamber. No fuel in tank….Supply fuel. Clogged fuel line….Clean fuel line. Foreign matter in fuel cock….Clean fuel cock. clogged carburetor….Clean carburetor. 2．Engine oil system - Insufficient ... - Page 14 Imported by: GRV POWER PRODUCTS, S.L. Av. Àlguema, 8A 17771 Santa Llogaia d’Àlguema (Girona) T: (+34) 972 673 836 www.grvpower.com Licensed by HYUNDAI CORPORATION, KOREA...
