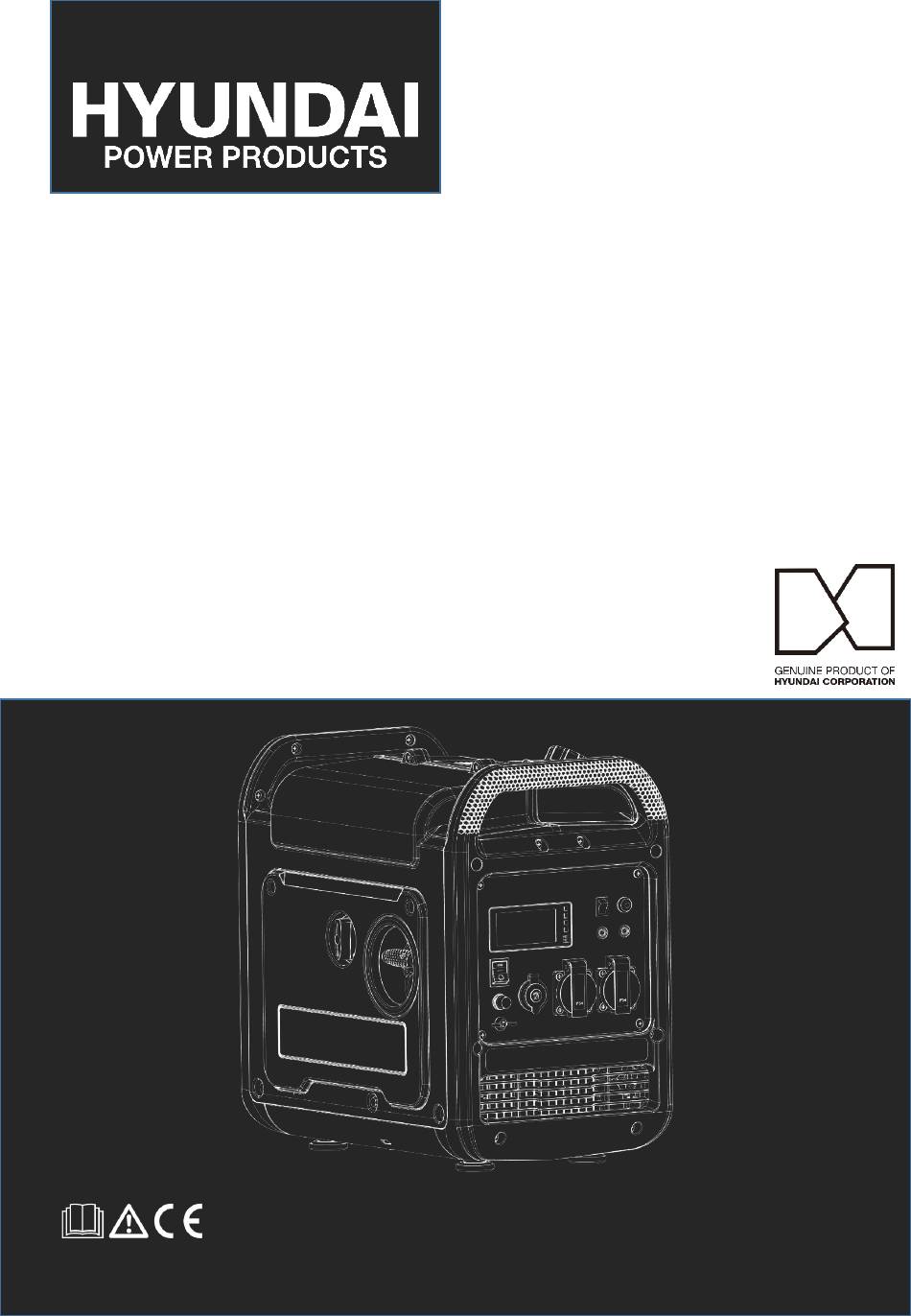

- Page 1 INVERTER GENERATOR HY2250SEi & HY2250Si Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Stopping……………………………………..25 Parallel Operation………………………….25 Connecting Appliances…………………..26 Generator Status Indicators………………27 Maintenance & Care…..……………..28-36 General Maintenance………………….28 Service Schedule………………………...29 Oil Maintenance…………………………30 Air Filter Maintenance……………….….31 Spark Plug Maintenance……………….32 Spark Arrestor Maintenance…………...33 Transportation and Storage……………34 Machine Troubleshooting……...35-37 Troubleshooting………………………….35 HY2250SEi Wiring Diagram…………….36 HY2250SE Wiring Diagram……………..37 Specifications……………………....38 www.hyundaipowerproducts.co.uk... -
Page 3: Introduction
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Fuel Safety
Safety Information Fuel Safety CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE & PETROL VAPOUR IS EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF REACH OF CHILDREN. • NEVER smoke when handling fuel. • ALWAYS avoid inhaling fumes. • ALWAYS carry fuel in the correct and clearly marked container. •... - Page 7 Safety Information Fuelling/De-Fuelling • ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel, only outdoors. Do not smoke during this and each time fuel is handled. • Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine is running or when it is hot.
-
Page 8: Work Area
Safety Information Work Area • You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area. -
Page 9: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Never attempt to make any adjustments, while the machine is running. •... -
Page 10: Battery Safety
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. - Page 11 Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. •...
-
Page 12: Vibration, Noise & Residual Risks
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 13: Intended Use

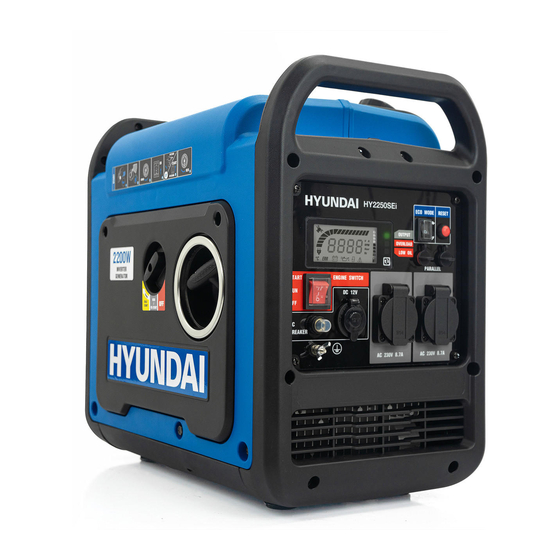

Safety Information Intended Use The HY2250SEi & HY2250Si are Inverter Generators from Hyundai, ideally suited for 2000W outputs. They are powered by a 79CC 4-Stroke motor. These machines are manufactured according to the latest safety requirements. These include automatically overload protection and low oil shut off. Every precaution is only effective when it is followed exactly. -
Page 14: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 15: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement. - Page 16 Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement.
-
Page 17: Unboxing
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 18: In The Box
Features Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 19 Features A. Choke Control J. Power Switch B. Recoil Starter K. DC Breaker C. Control Panel L. Grounding Connection D. Fuel Cap M.12V DC Outlet E. Air Filter Maintenance Panel N. AC Outlets F. Maintenance Panel O. Parallel Output G. Rear Maintenance Panel P.
-
Page 20: Pre-Operation Checks
Pre-Operation Checks Oil Level ALWAYS ensure the machine is on level ground when filling/checking the oil level. This will give the most accurate measurement. • Remove side Maintenance panel • Remove the oil filler cap • Using a funnel or spouted container, fill the machine with 0.41L of oil. We recommend using SAE 10W-30 grade oil for optimum performance. -
Page 21: Fuel Level
Pre-Operation Checks Fuel Level ALWAYS ensure the machine is on level ground when fueling or checking the fuel level. This will give the most accurate measurement. • Remove the fuel cap. • Using a funnel or spouted container, carefully fill with fuel. We recommend using 95 Octane premium fuel. -
Page 22: Air Filter Checks
Pre-Operation Checks Air Filter Check A dirty air filter will restrict air flow to the carburettor, reducing engine and output performance • Remove the Maintenance Panel (F) • Remove the retaining screws on the Air Filter Cover • Remove the Air filter and inspect for cleanliness. If any debris or blockages are present clean or replace. -
Page 23: Electrical Unloading
Pre-Operation Checks Electrical Unloading Before operating the machine, always ensure the machine is unloaded. This means, ensure there are no external accessories which are powered by the machine are connected. Machine Grounding During any form of operation, grounding the machine is always recommended. This means connecting the machine to a reliable, dedicated ground via a wire from the Ground Terminal on the main panel. -
Page 24: Operation
10 seconds at a time. If it fails after 3 attempts complete the following steps. Put the Power Switch (J) into the On (=) position, or for the HY2250SEi into the Run (-) position. Pull the Recoil Starter (B) grip lightly until resistance is felt, then pull it briskly. Do not allow the recoil starter grip to snap back against the engine. -
Page 25: Parallel Operation
You cannot use different specifications or brand of machine. The HY2250SEi & HY2250Si can be ran in parallel. This means 2 machine can be linked together to increase power output. You can purchase the parallel connection from our parts department. -
Page 26: Connecting Appliances
WORKING ORDER BEFORE CONNECTING. FAULTY OR DAMAGED APPLIANCES ARE LIKELY TO CAUSE DAMAGE OR INJURY. The HY2250SEi & HY2250SE have a rated power of 2000W. This is the maximum amount of power the machine can supply, anything over this will cause the machine to stall, and operate outside of stated specification. -
Page 27: Generator Status Indicators
Operation Generator Status Indicators The HY2250SEi & HY2250Si have Output, Overload and Low Oil Warning indicator lights on the Generator Monitor. Output Indicator – The Output indicator will illuminate Green when the machine is ready to be used. It will remain illuminated during operation. -
Page 28: Maintenance & Care
Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 29: Service Schedule
Maintenance & Care Service Schedule Item Task Each First 10 Every 50 Every Every 300 Hours Hours Hours Hours Generator General Inspection Engine Oil Inspect Oil Level Change Air Filter Inspection Clean Sediment cup Clean Spark Plug Inspect & Clean Replace Spark Arrestor Inspect &... -
Page 30: Oil Maintenance
Maintenance & Care Oil Maintenance WARNING – When changing the oil, ensure it’s warmed. If changing the oil after more than 10 minutes of operation, allow the machine to cool for a short period of time. • To change the oil, firstly remove the Maintenance Panel (F). •... -
Page 31: Air Filter Maintenance
Maintenance & Care Air Filter Maintenance WARNING – NEVER use petrol or Low Ignition point solvents for cleaning. Being highly flammable they can cause fire or explosions when the machine is turned on. • To clean the Air filter, firstly remove the Maintenance Panel (F). •... -
Page 32: Spark Plug Maintenance
Maintenance & Care Spark Plug Maintenance 1. Remove the Spark Plug Maintenance Panel (E). 2. Remove the sparkplug cap, and remove with a suitable spark plug socket/wrench. 3. Inspect your sparkplug, if it’s dirty you can simply use a wire brush and a suitable cleaning solution to remove any carbon deposits. -
Page 33: Spark Arrestor Maintenance
Maintenance & Care Spark Arrestor Maintenance WARNING – Allow the machine to fully cool down before carrying out this maintenance step. There’s 6 screws that can be removed to get easy access to the Muffler and Spark arrestor. Remove the Muffler and Spark Arrestor. Using a soft bristle brush, clean the spark arrestor, a cleaning fluid can be used to help aid the cleaning process. -
Page 34: Transportation And Storage
Maintenance & Care Transportation & Storage WARNING – Never store the machine long term or transport the machine in a vehicle when it’s full of fuel and oil. WARNING – When storing the machine long term, it should be in a well ventilated area away from direct sunlight. -
Page 35: Machine Troubleshooting
Troubeshooting Machine Troubleshooting Fault Cause Action Fill the oil tank with No fuel gasoline Choke control is not set to Turn the fuel valve to Choke Choke The Fuel valve is blocked Clean carb The Machine doesn't Start No engine oil or the engine Add oil oil level is low The engine switch is turned... -
Page 36: Hy2250Sei Wiring Diagram
Troubeshooting HY2250SEi Wiring Diagram www.hyundaipowerproducts.co.uk... -
Page 37: Hy2250Se Wiring Diagram
Troubeshooting HY2250Si Wiring Diagram www.hyundaipowerproducts.co.uk... -
Page 38: Specifications
Engine Speed (RPM) 3200-5400 Ignition System Full Transistor Spark Plug NGK-BPR6HS Spark Plug Gap 0.024-.0.028 inches / 0.6-0.7mm Starting System Electric Start (HY2250SEi Only) & Recoil Fuel Type Unleaded Petrol Oil Capacity (L) 0.41 SAE 10W30 Frequency 50Hz Rated Voltage... -
Page 39: Recycling And Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 40: Declaration Of Conformity
Country of Origin: China Description: Petrol Inverter Generator SKU Code: HY2250SEi & HY2250SE Date of Issue: 01/10/2023 Regulations and Directives of Compliance • 2006/42/EC - The Machine Directive • 2014/30/EU – harmonisation of the laws of the Member States relating to electromagnetic compatibility •... -
Page 41: Useful Information
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 42: Product Record
Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:……………………………………………………………………………….. -
Page 43: Contact Us
Contact Us Need Help? Talk To Our Experts Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk... - Page 44 For Inquiries, Please Contact: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for Licensed by Hyundai Corporation Holdings, Korea the United Kingdom & Ireland...
