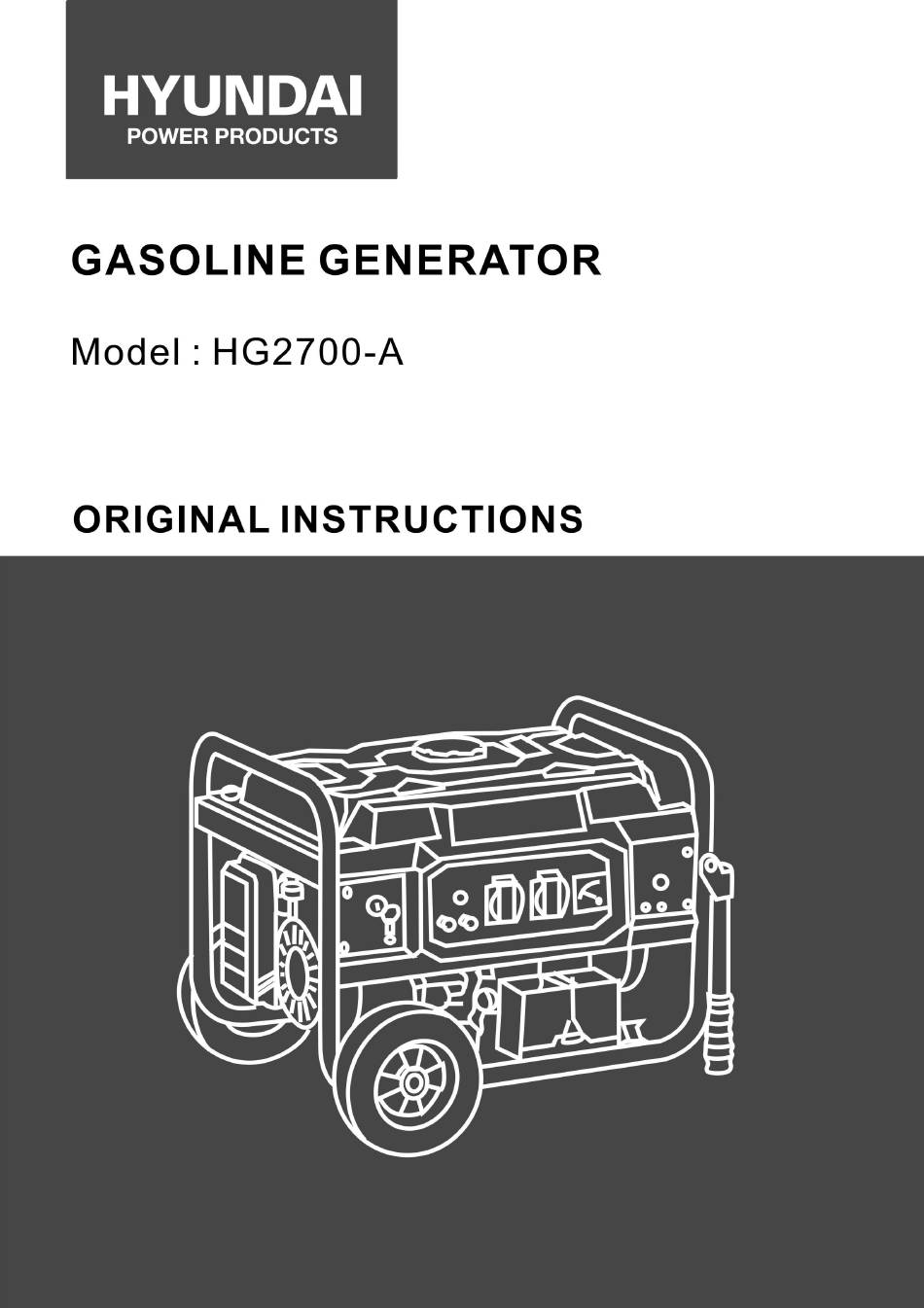

Hyundai power products HG2700-A Original Instructions Manual

Gasoline generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

EN-
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HG2700-A and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HG2700-A

Summary of Contents for Hyundai power products HG2700-A

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTION 2. COMPONENT IDENTIFICATION 3. CONTROLS 1) Engine Switch 2) Recoil Starter 3) Fuel Valve 4) Choke 5) Circuit Breaker 6) Ground Terminal 7) Oil Alert System 4. GENERATOR USE 1) Connections to a Building's Electrical System 2) Ground System 3) AC Applications 4) AC Operation...

  • Page 3: Safety Instruction

    1. SAFETY INSTRUCTION Warning: 1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2. Children should be protected by keeping them at a safe distance from the generator set! 3. Refilling of the generating sets are not allowed during the operation! 4.
  • Page 4  Run the generator in respect of the power indicated in the user’s manual. Do not run the generator with an overload or at excessive speed.  The silencer of the generator becomes extremely hot when the motor runs or even for a time after it has stopped.
  • Page 5 Security measures when filling the fuel tank  The fuel is extremely flammable and poisonous.  This generator only uses petrol (gasoline); any other kind of fuel will damage the motor.  Do not overfill the tank with petrol to avoid spilling. If you notice a spill, it must be wiped up completely with a dry cloth before starting the motor.
  • Page 6  Connect the generator to earth. Use a sufficiently thick conductor for the earth wire.  Do not operate the generator in parallel with another generator.  If using electrical extensions, make sure that they are sufficiently thick to transport the current and that they are used correctly.
  • Page 7 Do not dispose of old appliances with domestic rubbish . Add engine oil. Guaranteed sound power level No naked flames Ground connection It is forbidden to run the generator in a closed room, since exhaust emissions can lead humans or animals to coma or even death. Keep away from the machine Danger ! Electrical shock ! Exhaust emissions are harmful to health of body...

  • Page 8: Component Identification

    2. COMPONENT IDENTIFICATION NOTE: Diagrams may vary according to the types. 3. CONTROLS 1) Engine Switch To start and stop the engine. Switch position: OFF: To Stop the engine. Key can be removed/inserted. ON: To run the engine after starting. START: To start the engine by turning the starter motor.
  • Page 9 2) Recoil Starter To start the engine, pull the starter grip lightly until resistance is felt, then pull briskly. NOTICE Do not allow the starter to snap back against the engine. Return it gently to prevent damage to the starter. 3) Fuel Valve The fuel valve is located between the fuel tank and carburetor.

  • Page 10: Generator Use

    6) Ground Terminal The generator ground terminal is connected to the panel of the generator, the metal non- current carrying parts of the generator, and the ground terminals of each receptacle. Before using the ground terminal, consult a qualified electrician, electrical inspector or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.
  • Page 11 Special Requirements There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction. •...
  • Page 12 Do not exceed the current limit specified for any one receptacle. If an overloaded circuit causes the AC circuit breaker to switch OFF, reduce the electrical load on the circuit, wait a few minutes and then reset the circuit breaker. 5) DC OPERATION ( If available) DC Terminals The DC terminals may ONLY be used for charging 12 volt automotive type batteries.

  • Page 13: Pre-Operation Check

    NOTICE Do not start the vehicle while the battery charging cables are connected and the generator is running. The vehicle or the generator may be damaged. An overloaded DC circuit will fuse the DC fuse, if this happens, replace fuse. An overloaded DC circuit, excessive current draw by the battery, or a wiring problem will trip the DC circuit protector (PUSH button extends out).
  • Page 14 NOTICE Engine oil is a major factor affecting engine performance and service life. Non-detergent and 2-stroke engine oils will damage the engine and are not recommended. Check the oil level BEFORE EACH USE with the generator on a level surface with the engine stopped.
  • Page 15 2) Fuel Recommendation 1. Check the fuel level gauge. 2. Refill the tank if the fuel level is low. Do not fill above the shoulder of the fuel strainer. WARNING • Gasoline is extremely flammable and is explosive under certain conditions. •...

  • Page 16: Starting/Stopping The Engine

    Oxygenated Fuels Some gasoline are blended with alcohol or an ether compound to increase the octane. These gasoline are collectively referred to as oxygenated fuels. Some areas of the United States use oxygenated fuels to help meet clean air standards. If you use an oxygenated fuel, be sure its pump octane rating is 86 or higher.

  • Page 17: Maintenance

    NOTICE Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter or housing. • With electric starter: (Optional kit) Turn the engine switch to the START position and hold it there for 5 seconds or until the engine starts.
  • Page 18 1) MAINTENANCE SCHEDULE REGULAR SERVICE PERIOD Each First Every 3 Every 6 Every Performed at every indicated month or month or months months year or operating hour interval, whichever 20 Hrs. or 50 or 100 300 Hrs. comes first. Hrs. (3) Hrs.
  • Page 19 NOTE: Diagrams may vary according to the types. 3) Engine oil change Drain the oil while the engine is warm to assure complete and rapid draining 1. Remove the drain plug and sealing washer, oil filler cap, and drain the oil 2.
  • Page 20 1) Unsnap the air cleaner cover clips, remove the air cleaner cover, and remove the element. 2) Wash the element in a solution of household detergent and warm water, then rinse thoroughly; or wash in nonflammable or high flash point solvent. Allow the element to dry thoroughly 3) Soak the element in clean engine oil and squeeze out the excess oil.
  • Page 21 6) Spark Plug Service Recommended spark plugs: F5T or F6TC or F7TJC or other equivalents To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. If the engine has been running, the muffler will be very hot. Be careful not to touch the muffler. 1) Remove the spark plug cap.

  • Page 22: Transporting And Storage

    NOTICE The spark plug must be securely tightened. An improperly tightened spark plug can become very hot and could damage the engine. Never use spark plugs which have an improper heat range. Use only the recommended spark plugs or equivalent. 8.
  • Page 23 WARNING Gasoline is extremely flammable and is explosive under certain conditions. Perform this task in a well ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area during this procedure. The fuel of this machine is combustible and deflagrating. After the machine has been shut down, the additional fuel must be treated properly and the local environmental requirements must be met.

  • Page 24: Troubleshooting

    9. TROUBLESHOOTING When the engine will not start: Is there fuel in the tank? Refill the fuel tank Is there oil in the tank? Add the recommended oil. STILL SPARK Is there spark from Replace the Take the generator to an spark plug.
  • Page 25 No electricity at the AC receptacles Is the AC circuit breaker ON Turn the AC circuit breaker ON NO DEFECTS Check the electrical appliance or Take the generator to an equipment for any defects. authorized generator dealer. Replace the electrical appliance DEFECTS or equipment.
  • Page 26 10. CIRCUIT DIAGRAM...

  • Page 27: Specifications

    11. SPECIFICATIONS Engine Engine model LT208 Engine type Single cylinder, 4-strokes, Forced air cooling, OHV. Displacement( CC) 208cc Rated speed 3000/min Igniting system Transistor magneto Starting system Recoil Fuel Volume (L) 15 L Continuous operation time (h) 10 h Min. Fuel consumption (g/kW.h) 360 g/kW.h Lube Oil capacity (L) 0.6 L...

  • Page 28: Ec Declaration Of Conformity

    BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: Gasoline Generator HG2700-A Model: Serial number: 20210122000-20210122197 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it: Also complies with the following European directives:...

  • Page 29: Warranty

    13. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 30: Product Failure

    14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 31: Warranty Exclusions

    15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
