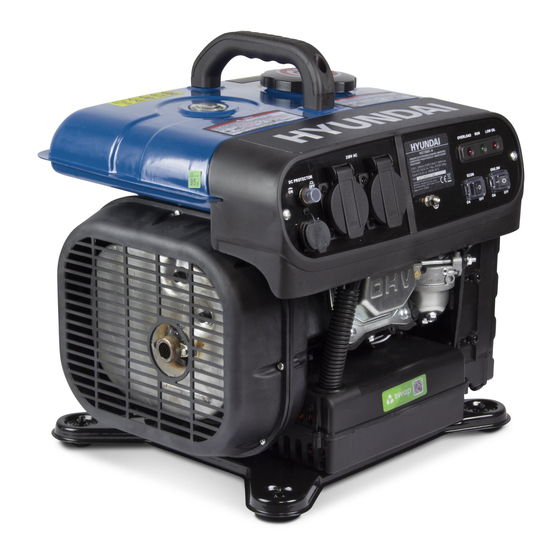

Summary of Contents for Hyundai power products HG1800i-A
-
Page 2: Table Of Contents
CONTENT 1. SAFETY INSTRUCTION 2. SYMBOL EXPLNATION 3. QUICK START 4. SAFETY LABEL LOCATION 5. PARTS IDENTIFICATION 6. CHECK BEFORE OPERATION 7. START THE ENGINE 8. OPERATING THE GENERATOR 9. SHUT OFF THE GENERATOR 10. MAINTENANCE 11. TRANSPORTATION/STORAGE 12. TROUBLESHOOTING 13. -
Page 3: Safety Instruction
1. SAFETY INSTRUCTION Warning: 1.Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2.Children should be protected by keeping them at a safe distance from the generator set! 3.Refilling of the generating sets are not allowed during the operation! 4.If the generator will be mounted in a closed room, relevant safety regulations against fire and explosion should be followed! 5.Do not connect to household circuit! - Page 4 Perform periodic maintenance and resolve problems that appear immediately. Do not run the generator before correcting any fault detected. The generator uses a system of air-cooling, and it is necessary to clean its components regularly, including the grilles, the cover of the fan and the fan itself so as to ensure cooling. ...
- Page 5 Engine exhaust gases are toxic. Do not operate the generating set in unventilated rooms. When installed in ventilated rooms, additional requirements for fire and explosion protection shall be observed. Before use, the generating set and its electrical equipment (including lines and plug connections) should be checked to ensure that they are not defective.
- Page 6 While using or transporting the generator, make sure you keep the generator upright, otherwise the fuel may escape from the carburettor or the fuel tank. Electrical safety Before each use ensure that the load to be connected does not exceed the power of the current produced by the generator.
-
Page 7: Symbol Explnation
§ Drain fuel from the fuel tank § Empty carburettor fuel 2. SYMBOL EXPLANATION Attention! Please read the manual carefully before using the unit! Conforms to relevant safety standards Do not dispose of old appliances with domestic rubbish . Guaranteed sound power level Ground connection Fill in engine oil It is forbidden to run the generator in an enclosed room because... - Page 8 Do not connect with the electricity system. Danger ! Electrical shock ! No fire when refueling...
-
Page 9: Quick Start
QUICK START WARNING! Only use outdoors. The generator emits carbon monoxide, a toxic colorless and odorless gas that can cause death or serious injury. Ensure that the generator is placed horizontally. Never work in the rain, snow or other humid environment. ... - Page 10 Forewords Thank you for Choosing our generator. This manual includes the operation and maintenance of Model HG1800i-A series inverter generator. All contents of this manual are consistent with the latest products (when this manual is printed). Our company reserves the right to make changes without notice and without any liability.
-
Page 11: Safety Label Location
4. SAFETY LABEL LOCATION These decals indicate serious accident that you may cause. Please read the decals, safety precautions and precautions mentioned in this manual carefully. -
Page 12: Parts Identification
5. PARTS IDENTIFICATION... -
Page 13: Check Before Operation
Control Panel CHECK BEFORE OPERATION BE CAUTIOUS Be sure to check whether the generator is placed horizontally, and the engine is off. Check the Oil Level BE CAUTIOUS Use non-detergency oil or 2-stroke engine oil could shorten the engine life. ... - Page 14 Loosen the screw on the side maintenance cover to remove the cover. Remove the oil dipstick, wipe the dipstick with a clean cloth, insert it into the oil port without tightening the dipstick to check the oil level. If the oil level is below the bottom of the dipstick, add the recommended oil. BE CAUTIOUS ...
- Page 15 WARNING Under certain conditions gasoline is extremely flammable and explosive. Please refuel in the ventilated place and turn off the engine when refueling. Generator refueling area and gasoline storage area is strictly prohibited smoking and lighting fires. Never add fuel when the generator is running. EXTREMELY DANGEROUS! ...
-
Page 16: Start The Engine
7. START THE ENGINE Recoil Start Disconnect the load from the socket before starting the generator. 1. Turn the oil switch to “ON” position. Oil Switch Turn the oil switch 2. Turn the power switch to “ON” position. 3. Turn the throttle arm to “OFF” position. BE CAUTIOUS ... - Page 17 Pull the starter handle until you feel resistance, then quickly pull the handle as the direction shown above to start the generator. BE CAUTIOUS Never allow the starting handle to rebound. Slowly put it back. When pulling the cable, hold the generator tightly to prevent the generator from overturning.
-
Page 18: Operating The Generator
Working at high altitudes In high altitude areas, the air-fuel mix in a standard carburetor is relatively thick, so the engine operating performance will reduce, while the fuel consumption increases. At this point you can adjust the main jet on the carburetor (smaller), while adjusting the ratio-mixing screw, then you can change the performance of the engine in high altitude areas. - Page 19 the cable of 3mm is 100 meters long. The generator should be away from other electric wires or cables, such as: electricity transmission network. NOTICE When using AC power, you can use DC power at the same time. Please pay attention to the sum of the power of AC and DC.
- Page 20 BE CAUTIOUS If the connected device is not turned off before you start the generator, it will start suddenly, resulting in personal injury. If the generator is overloading or the connected device is internally faulty, the power indicator (green) will go off and the overload indicator (red) will light up and there is no power output.
- Page 21 When using the generator with a pure inductive load, the pure inductive load cannot exceed the rated power of the generator. The power can only run 40% to 75% of rated power on pure inductive load. Model HG1800i-A Rated Power (W) 1600 Frequency（Hz）...
- Page 22 1. Start the generator as the above instruction. 2. Connect the charging cable to the generator DC socket and connect it to the battery terminal Charging Cable WARNING Connect the charging cable to the battery first, and then connect it to the generator. Disassembly must start from the generator side, which prevents sparks start beside the battery.
- Page 23 If you accidentally swallow the electrolyte, drink plenty of water or milk immediately, and then drink milk or vegetable oil with magnesium oxide and seek medical care. Batteries and electrolytes should be placed where children are not accessible. DC protector When using AC power, you can have use DC output.
-
Page 24: Shut Off The Generator
9. SHUT OFF THE GENERATOR If you need to shut down the engine urgently, turn the key to “stop” position. For Electric Start and Remote Start model, you can turn the power switch to “OFF” position. For Remote Start model, you can also press the red “STOP”... -
Page 25: Maintenance
10. MAINTENANCE Maintenance and adjustment schedules are developed to keep the generator in the best working condition. WARNING Turn off the engine before any maintenances. If the engine must be operated during maintenance, be sure to operate it in a ventilated area because the exhaust contains toxic carbon monoxide. - Page 26 Oil Change When the engine is warm, you can quickly and completely discharge the oil. BE CAUTIOUS Make sure that the engine switch and the fuel switch are off before draining the oil. a. Loosen the oil drain screw, drain the oil. b.
- Page 27 BE CAUTIOUS In order to comply with environmental requirements, we recommend that collect the waste oil into a sealed container, send to the repair station or recycling center near your location. Do not spill the oil on the ground or garbage. Maintenance of Air Filter The dirty air filter will block the air into the carburetor.
- Page 28 Maintenance of Spark Plug Use recommended spark plug: In order to ensure the best operation of the engine, the spark plug clearance must be appropriate. Spark plug cannot have coke. 1) Remove the top maintenance cover screws and remove the top maintenance cover plate. 2) Pull the anode cap out.
- Page 29 4) If the insulator has been ruptured, it must be scrapped. If you want to use the spark plug again, use a brush to clean the spark plug. 5) Measure the spark plug clearance with a feeler gauge, and the spark plug clearance should be 0.6-0.7mm (0.024-0.028 in) 6) Install the spark plug carefully.
-
Page 30: Transportation/Storage
11. TRANSPORTATION/STORAGE To prevent fuel leakage during transport or temporary storage, turn off the oil switch and place the generator in a location where no fuel leaks. WARNING When transporting the generator： Do not fill too much fuel into fuel tank. (There should be no fuel in the filler). ... -
Page 31: Troubleshooting
2) Exhaust oil. 3) Remove the spark plug, pour a tablespoon of clean oil into the cylinder, pull the start handle a few times to scatter the oil, and then install the spark plug back. 4) Pull the handle slowly until it feels pressure. At this moment, the piston is rising to the top of its compression stroke and the exhaust valve is closed. - Page 32 4. Pull the start handle, spark should jump from the gap. NOTICE Ensure that the engine is cooled down when you check the spark plug, or the high temperature of the engine and spark plug will cause burns. Connected device does not work Is the output indicator ON or OFF? Return the generator to an authorized Is overload indicator ON?
-
Page 33: Specification
13. SPECIFICATION Size and Weight HG1800i-A Model L x W x H (mm) 375x340x405 Net weight (kg) 18.5kg Engine Model XG160F Type 4-Stroke, 1-Cylinder, OHV Displacement 119cm Compression Ratio Engine Speed 2.1kW@5000rpm Cooling System Forced Air-Cooled Ignition System T E I Oil Capacity 0.4 L... -
Page 34: Declaration Of Conformity
Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 States that the designated below machine: Product: Petrol Inverter generator Model: HG1800i-A Serial number: 20210752355-20210752674 is in confirmity with the essential requirements and other relavant provisions of the applicable European Directives,based on the application of European harmonized standerds.Any unauthorized modification of the apparatus voids this declaration. -
Page 35: Warranty
15. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 36: Productfailure
16. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 37: Warranty Exclusions
17. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 38 NOTES...
- Page 39 NOTES...
