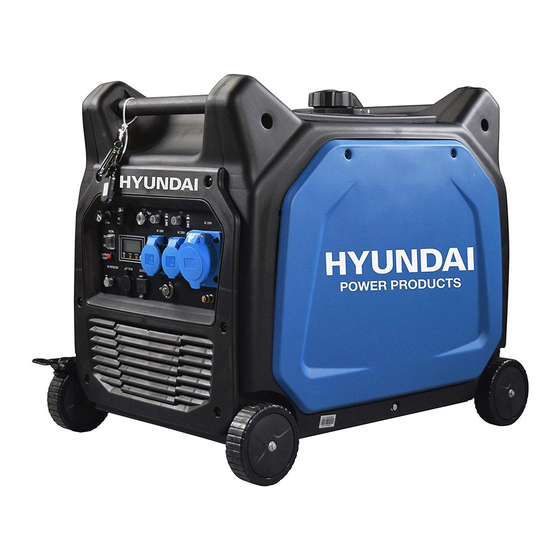

Hyundai power products HY6500SEi User Manual

Hyundai power products HY6500SEi User Manual

Inverter generator
Hide thumbs Also See for HY6500SEi:

Advertisement

User's Manual
INVERTER GENERATOR
HY6500SEi
EN
Licensed by Hyundai Corporation, Korea

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY6500SEi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hyundai power products HY6500SEi

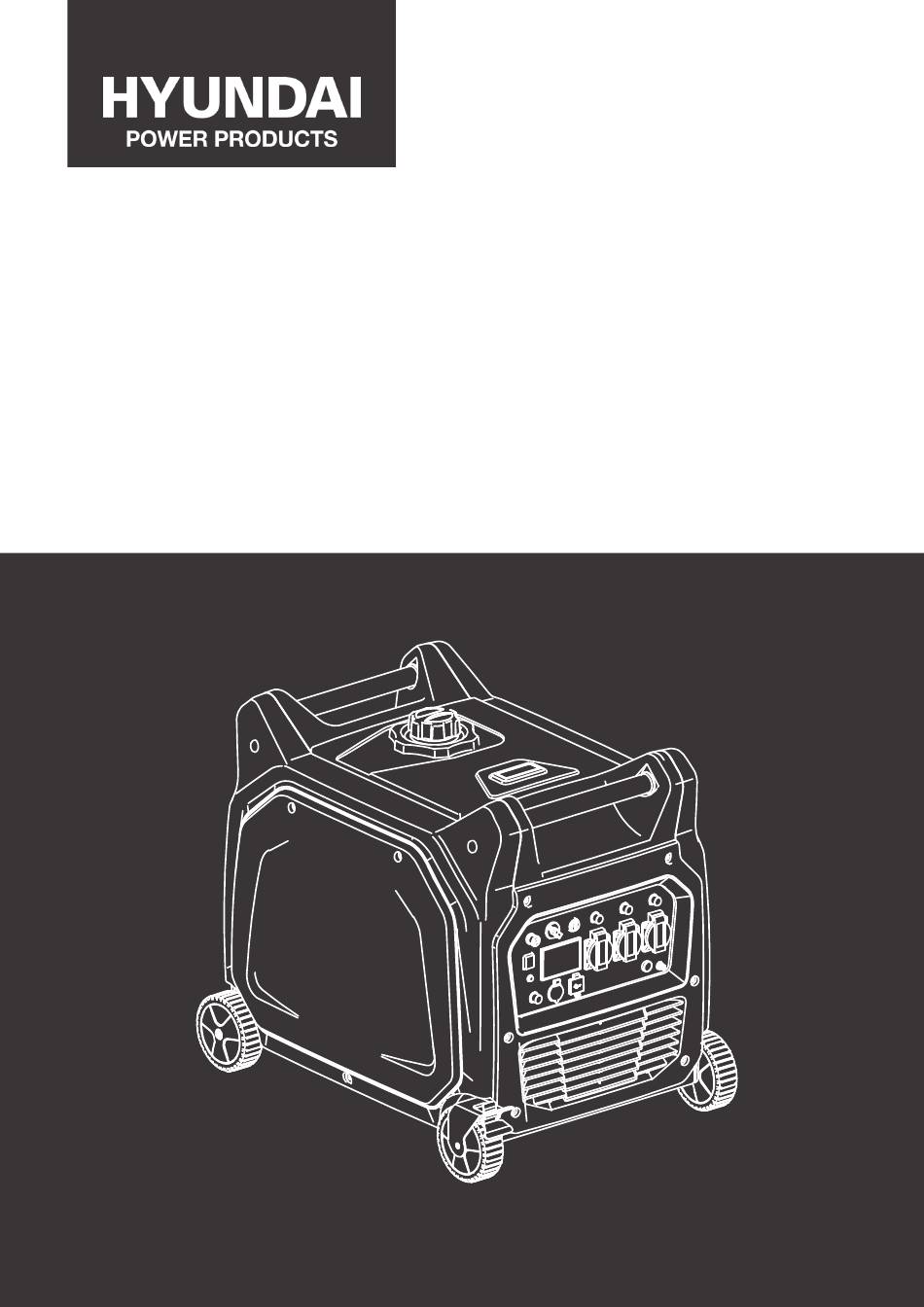

  • Page 1 User’s Manual INVERTER GENERATOR HY6500SEi Licensed by Hyundai Corporation, Korea...
  • Page 2: Table Of Contents

    INTRODUCTION Thank you for purchasing this Inverter Generator. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. C O N T E N T S SAFETY INFORMATION .........................
  • Page 3: Safety Information

    WARNING PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THE MATCHINE. SAFETY INFORMATION EXHAUST FUMES ARE POISONOUS Never operate the engine in a closed area or it may cause unconsciousness and death within a short time. Operate  the engine in a well ventilated area. FUEL IS HIGHLY FLAMMABLE AND POISONOUS Always turn off the engine when refueling ...
  • Page 4: Control Function

    CONNECTION NOTES Avoid connecting the generator to commercial power outlet.  Avoid connecting the generator in parallel with any other generator.  CONTROL FUNCTION (1) Spark plug (2) Fuel tank (3) Fuel tank cap (4) Fuel filter (5) Carrying handle (6) Fuel level gauge (7) Muffler (8) Battery...
  • Page 5 OIL WARNING SYSTEM When the oil level falls below the lower level, the engine stops automatically. Unless you refill with oil, the engine will not start again. ENGINE SWITCH The engine switch controls the ignition system. ① Ignition circuit is switched on. The engine can be started. STOP ②...
  • Page 6 REMOTE CONTROL SWITCH The remote control switch controls the ignition system ① The starter motor starts. ② The engine will not run. BRAKE LEVER The function of brake lever is preventing generator moving. ① Brake lever is not working, generator can move. ②...
  • Page 7: Pre-Operation Check

    PRE-OPERATION CHECK NOTE: Pre-operation checks should be made each time the generator is  used. CHECK ENGINE FUEL  Make sure there is sufficient fuel in the tank.  If fuel is low, refill with unleaded automotive gasoline.  Be sure to use the fuel filter screen on the fuel filter neck. ...
  • Page 8: Operation

    GROUND (Earth) Make sure to ground (earth) the generator. CONNET BATTERY Loosen the screw and remove the battery cover.  Clamp the red wire to the positive (+) terminal and the black wire  to the negative (-) terminal of the battery. Do not reverse these positions.
  • Page 9 4. Turn the engine switch to the RUN position. ENGINE SWITCH 5. Push choke rod to the RUN position. 6. Warm up the engine without a load for a few minutes. B Remote start 1. Please make sure the fuel shutoff valve to the ON position, the CHOKE ROD choke rod to the RUN position, the engine switch to the RUN position.
  • Page 10 USING ELECTRIC POWER 1. AC APPLICATION (a) Check the AC pilot lamp for proper voltage. (b) Turn off the switch(es) of the electrical appliance(s) before connecting to the generator. (c) Insert the plug(s) of the electrical appliance(s) into the receptacle. CAUTION: ...
  • Page 11 3. DC APPLICATION (option) Aim for specific gravity and charging time This usage is applicable to 12V battery charging only. 1.30 (a) Charging instruction for battery 1.26  Disconnect the leads for the battery. 1.22  Make the battery fluid filler cap loose fully. 1.18 ...
  • Page 12 STOPPING THE ENGINE ENGINE SWITCH 1. Turn off the power switch of the electric apparatus or disconnect any STOP electric devices. 2. Turn the engine switch to STOP position. Click remote switch to the position. 3. Turn the fuel cock lever to OFF.
  • Page 13: Periodic Maintenance

    PERIODIC MAINTENANCE MAINTENANCE CHART Pre-operation Initial Every Every Every check 1 months 3 months 6 months 12 months Item Remarks (daily) or 20 Hr or 50Hr or 100Hr or 300Hr Spark Check condition adjust gap and  Plug clean. Replace if necessary. Engine Check oil level ...
  • Page 14 ENGINE OIL REPLACEMENT Place the machine on a level surface and warm up the engine for several minutes. Then stop the engine and turn the fuel cock knob to OFF. Turn the fuel tank cap air vent knob clockwise. Loosen the screw and remove the cover. Remove the oil filler cap Place an oil pan under the engine.
  • Page 15 CAUTION: The engine should never run without the element; excessive piston and/or cylinder wear may result. CLEANING AND ADJUSTING SPARK PLUG 1. Remove the cover. 2. Check for discoloration and remove the carbon. 3. Check the spark plug type and gap. 4.
  • Page 16: Trouble Shooting

    Use the flathead screw driver to pry the spark arrester out from the muffler Remove the carbon deposits on the muffler screen and spark arrester using a wire brush. Install the muffler screen. Install the cover TROUBLE SHOOTING Engine won’t start 1.
  • Page 17: Storage

    STORAGE Long term storage of your machine will require some preventive procedures to guard against deterioration. DRAIN THE FUEL Remove the fuel tank cap, drain the fuel from the fuel tank Remove the cover, drain fuel from the carburetor by loosening the drain screw. ENGINE Remove the spark plug, pour in about one tablespoon of SAE 10W30 or 20W40 motor oil into the spark plug hole and reinstall the spark plug.
  • Page 18: Specification

    SPECIFICATION MODEL HY6500SEi Type Inverter Generator AC Voltage 230V,240V Frequency 50Hz Max. Output 6.5 kW Rated Output 6.0 kW Power Factor DC Output 12V / 5.0A 5V/3.1A Model IC188F-1 Type Air-cooled, 4 cycle, OHV, Gasoline Engine Bore×Stroke mm×mm 88×64 Displacement 389cc Max.
  • Page 19: Wiring Diagram

    WIRING DIAGRAM CONTROL PANEL BLOCK GENERATOR BLOCK FUSE 15A DC 12V OUTPUT DC PROTECTOR 6A WINDING RECTIFIER WINDING DC5V OUTPUT GROUND TERMINAL MAIN WINDING INVERTER PROTECTOR PROTECTOR UNIT AC OUTPUT WINDING U-I-P-Hz-T OUTPUT RESET ECON. SWITCH IGNITION IGNITION CONTROLLER WINDING ELECTRIC LOCK STEPPER MOTOR ASSY.
  • Page 20 Imported by: GRV POWER PRODUCTS, S.L. Av. Àlguema, 8A 17771 Santa Llogaia d’Àlguema (Girona) T: (+34) 972 673 836 www.grvpower.com Licensed by Hyundai Corporation, Korea...
