1. Fasten spacers onto metal pems configuration (A) of backplane (Fig. 4, pg. 5).
2. Position SALTO modules over corresponding spacers and mount them utilizing pan head screws (provided) (Fig. 4a, pg. 5).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
SALTO Access Controller
CU42E0, CU4200 or CU4EB8

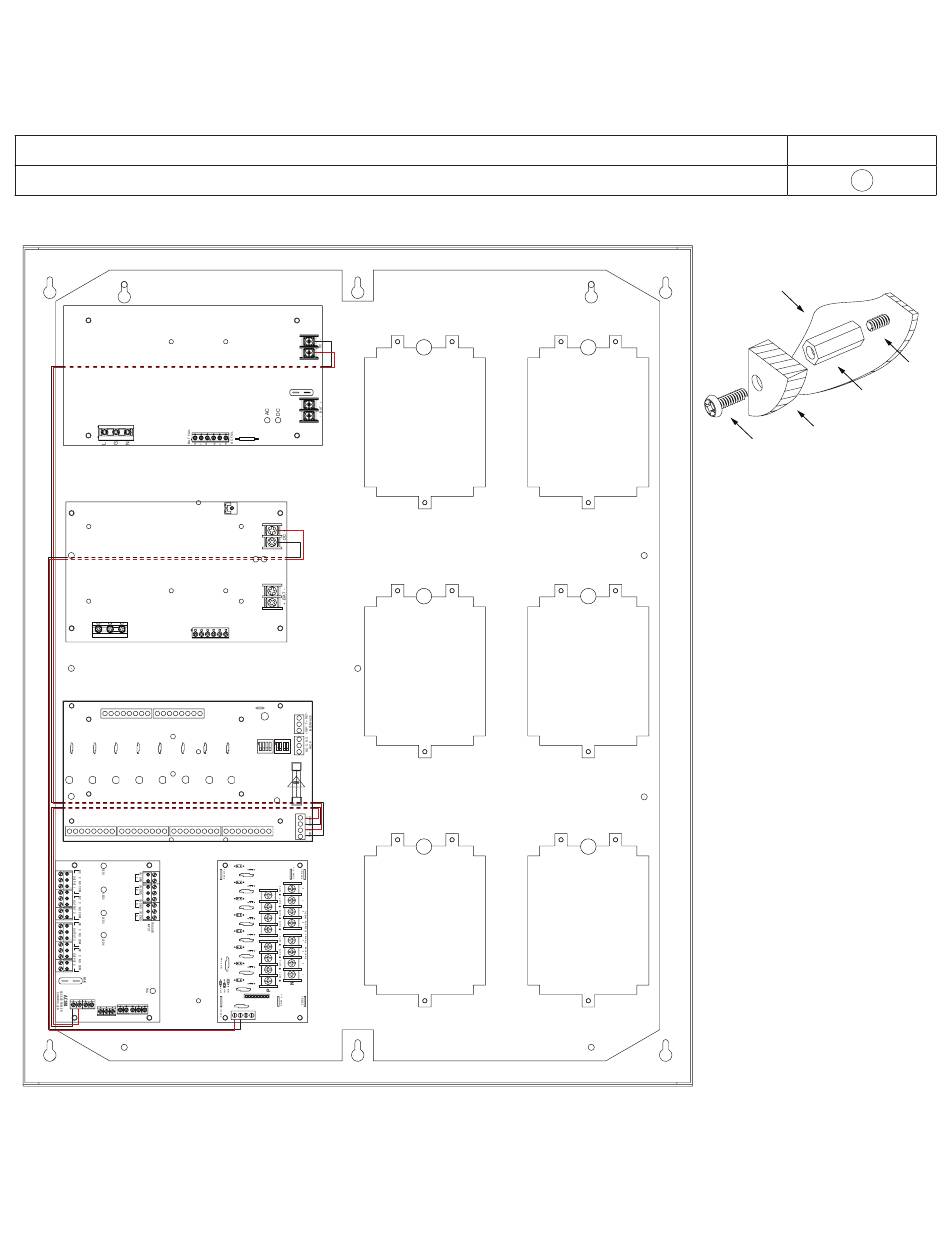

Fig. 4
Altronix
AL1024ULXB2
Altronix
AL1012ULXB
L G N
BAT FAIL NC C NO NC C NO AC FAIL
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
1 2 3 4 5 6 7
F1 F2 F3 F4 F5 F6
Altronix - ACM8CB
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5
Altronix
ACM4CB
-- + -- +
POWER CONTROL
+INP- T +RET-
NO C NC
INTERFACE
FACP
Trove SALTO ULXB D Kits Installation Guide
T2SAK7512D: Configuration of SALTO Modules:
AC DELAY
AC DC
FACP
TRIGGER
TRG
INPUT
8
F7 F8
O N O N O N O N
1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4
MAIN
10A 250V
OUTPUT 6 OUTPUT 7 OUTPUT 8
Out8
<1 off 2>
Out7
<1 off 2>
Out6
<1 off 2>
Out5
<1 off 2>
Out4
<1 off 2>
Out3
<1 off 2>
Out2
<1 off 2>
Out1
<1 off 2>
IN2 Fuse
+ INP1 -- + INP2 --
Altronix - PDS8CB
A A
A A
A A
Pem Mounting
A
Fig. 4a
Backplane
Spacer
HS4 Module
Pan Head Screw
Pem
