Anti-Rebound Ball-Catch Adjustment (Sa / Prima Maxi Version) - Opera PRIMA Installation Instructions Manual

PRIMA / P . OP /
2
CLASSICA

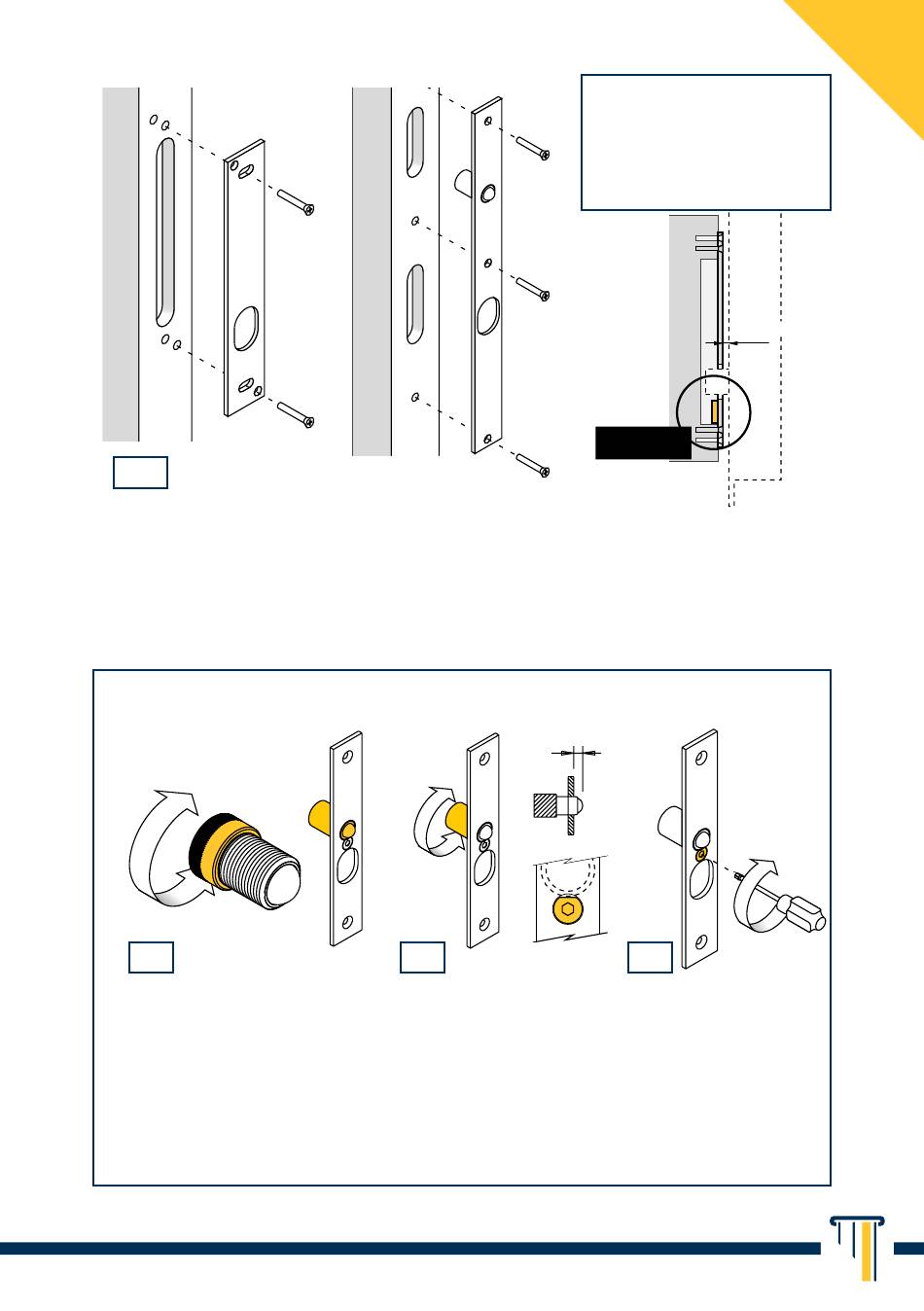

(2) Install the striking plate using appropriate screws (not supplied).
Pay attention to the orientation of the magnet: it must be installed wall side
and below the deadbolt axis, otherwise the solenoid bolt will not work.

ANTI-REBOUND BALL-CATCH ADJUSTMENT (SA / PRIMA MAXI version)

1
(1) Adjust the ball-catch strength by turning the rear ring nut while holding
the threaded portion steady until the optimum holding strength is reached.
(2) Checking that the screw on the striking plate is in the "unlocked" position,
adjust the ball-catch protrusion by turning the rear ring nut relative to the
striking plate. (3) When the adjustement is �nished, lock the thread by turning
the screw on the striking plate 90° clockwise.
PRIMA MAXI
2
"Unlocked" screw
If installed on ferro-
magnetic frames leave
at least 1-2 mm clearance
around the magnet.
max 6 mm
Magnet
Continues...
3
9 9
90°
