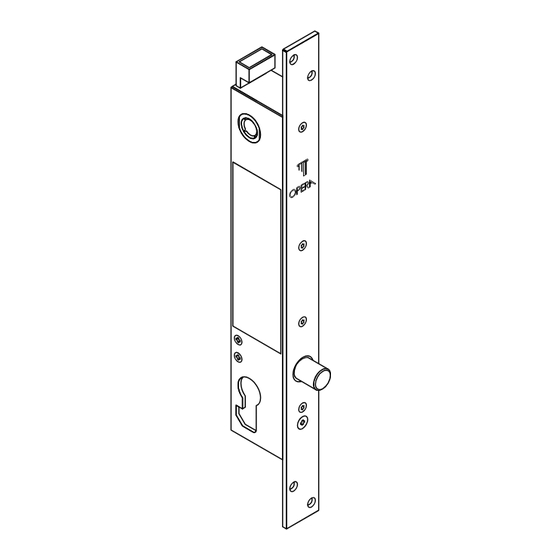

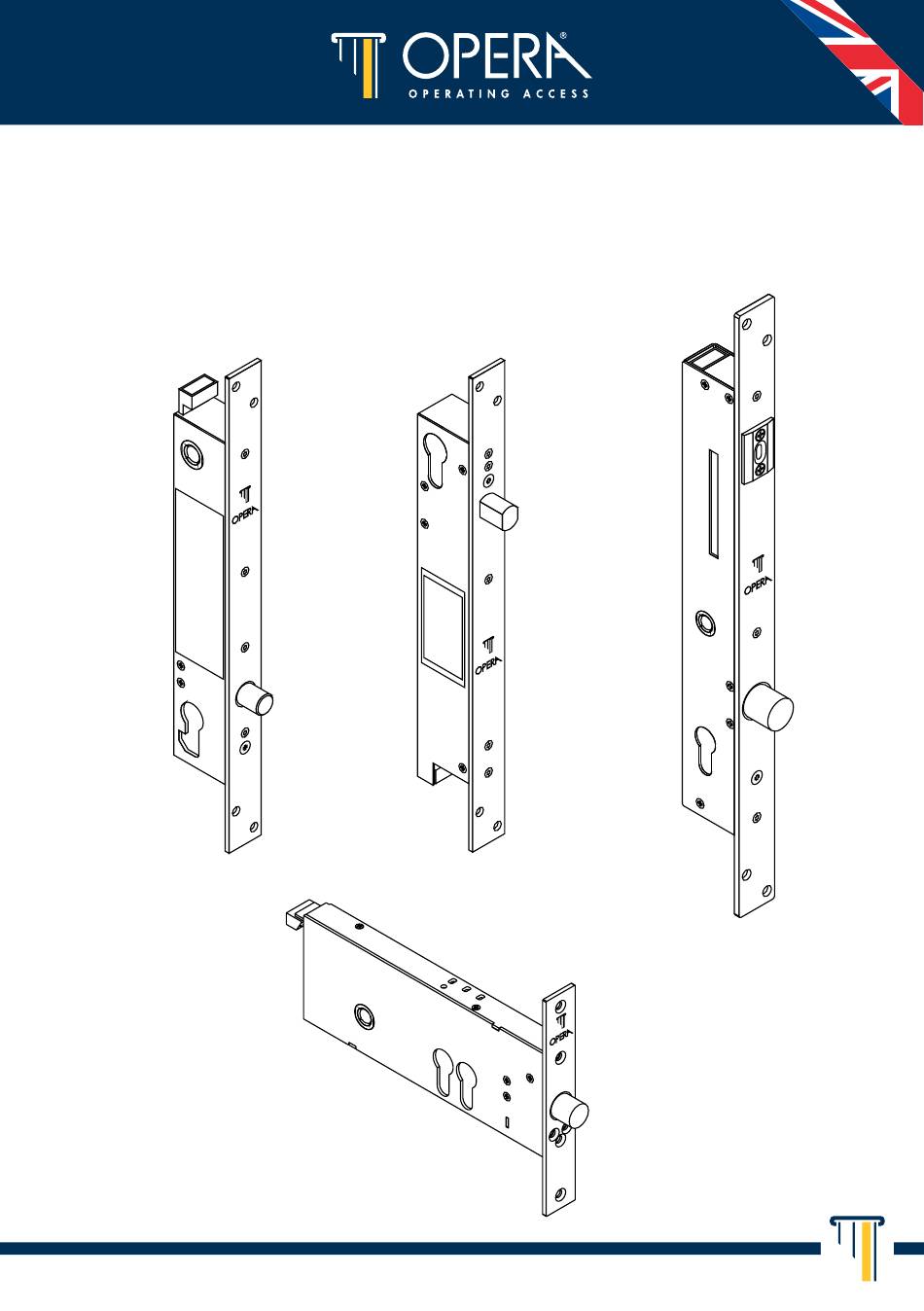

- Page 1 PRIMA AND CLASSICA INSTALLATION INSTRUCTIONS PRIMA PRIMA OP PRIMA MAXI CLASSICA...
- Page 2 Do not make modi�cations or repair to the electrical or electronic components. Check for proper grounding when connecting to the power supply. Disposal of packaging in the appropriate containers is recommended. For further information: www.opera-italy.com Tel: +39 059 451708 e-mail: info@opera-access.it...
-
Page 3: Table Of Contents
PRIMA MAXI series • PRIMA OP series • CLASSICA series INSTALLATION ANTI-REBOUND BALL-CATCH ADJUSTMENT (SA / PRIMA MAXI version) SPRING LATCH REVERSIBILITY (item 25900 / 25910 ONLY) TIMING ADJUSTMENT TABLE OF FUNCTIONS APPLICATION EXAMPLES SAMPLE CONNECTION FOR APARTMENT BUILDING DOOR... -
Page 4: Prima Series
TECHNICAL SPECIFICATIONS AND DIMENSIONS - PRIMA series 38/43/ 48/73 20.5 176.5 96.5 101.5 25/30/ 35/60 OP57036/38 Striking plate UPRIGHT SECURITY SOLENOID LOCK › Stainless steel face plate and striking plate, hardened steel deadbolt/spring latch › Versions with fail-safe or fail-secure deadbolt/spring latch ›... -
Page 5: Prima Maxi Series
TECHNICAL SPECIFICATIONS AND DIMENSIONS - PRIMA MAXI series 26.5 151.5 151.5 26.5 Striking plate UPRIGHT SECURITY SOLENOID LOCK › Stainless steel face plate and striking plate, hardened steel deadbolt › Versions with fail-safe or fail-secure deadbolt › Power supply: 12 ÷ 24 Vdc, peak current 3 A, holding current 130 ÷ 230 mA ›... -
Page 6: Prima Op Series
TECHNICAL SPECIFICATIONS AND DIMENSIONS - PRIMA OP series 25/30/35 35/40/45 Striking plate UPRIGHT SECURITY SOLENOID LOCK › Stainless steel face plate and striking plate, hardened steel deadbolt/spring latch › Versions with fail-safe or fail-secure deadbolt/spring latch › Power supply: 12 ÷ 24 Vdc, peak current 3 A, holding current 130 ÷ 230 mA ›... -
Page 7: Classica Series
TECHNICAL SPECIFICATIONS AND DIMENSIONS - CLASSICA series 266/268 276/278 76.5 Striking plate OP54036/38 115.7 HORIZONTAL SECURITY SOLENOID LOCK › Stainless steel face plate and striking plate, hardened steel deadbolt/spring latch › Versions with fail-safe or fail-secure deadbolt/spring latch › Power supply: 12 ÷ 24 Vdc, peak current 3 A, holding current 130 ÷ 230 mA ›... -
Page 8: Installation
Cylinder screw Drilling dimensions for striking plates PRIMA / PRIMA MAXI PRIMA OP / CLASSICA 12 55 (1) Drill holes for inserting the striking plate according to the diagram shown here. The striking plate is essential for the operation of the solenoid lock. -
Page 9: Anti-Rebound Ball-Catch Adjustment (Sa / Prima Maxi Version)
Pay attention to the orientation of the magnet: it must be installed wall side and below the deadbolt axis, otherwise the solenoid bolt will not work. Continues… ANTI-REBOUND BALL-CATCH ADJUSTMENT (SA / PRIMA MAXI version) 90° “Unlocked” screw (1) Adjust the ball-catch strength by turning the rear ring nut while holding the threaded portion steady until the optimum holding strength is reached. - Page 10 Drilling dimensions for solenoid locks 32.5 (22/27/32/60) 176.5 45.5 32.5 PRIMA 27.5 (67/87) 27.5 (67/87) CLASSICA (3) Drill holes for the installation of the solenoid bolt according to the diagram corresponding to the product to be installed. Thoroughly clean the inside of the casing from chips and dirt.
- Page 11 (22/27/32) 42.5 32.5 PRIMA OP PRIMA MAXI PRIMA / P . MAXI PRIMA OP CLASSICA (4) Gently insert the quick plug-in connector into the receiving connector located on the solenoid lock at the indicated position. PAY ATTENTION TO THE DIRECTION OF INSERTION.
- Page 12 PRIMA / P . MAXI PRIMA OP CLASSICA (5) Install the solenoid bolt using appropriate screws (not supplied) paying attention to proper alignment with the hole for the cylinder. If the solenoid lock is set up for the installation of a tamper defender, make sure it is installed correctly.
-
Page 13: Spring Latch Reversibility (Item 25900 / 25910 Only)
SPRING LATCH REVERSIBILITY (ITEM 25900 / 25910 ONLY) Reversibility supported only by items 25900 and 25910 with 25-30-35 mm backsets. The 60 mm backset version and the Prima OP series shall necessairily be ordered either in the left or right hand version. -
Page 14: Timing Adjustment
TIMING ADJUSTMENT Perform this operation with the solenoid lock in hands (not mounted)! Simulate the opening or closing of the door with the disassembled striking plate magnet. To simulate the door closing, bring the striking plate close to the solenoid lock, aligning the hole with the bolt and with the magnet facing outwards. Magnete NOTE : timing adjustment not available on items 25910/25918 Timings are factory-set according to the Default settings (see table in facing page). - Page 15 BUTTONS PRIMA OP CLASSICA PRIMA / PRIMA MAXI T1 : deadbolt closure timing upon approach of the door. T2 : deadbolt closure timing if the door is not opened. T3 : timing of prolonged door opening alarm (only on versions 246-248-266-268).
-
Page 16: Table Of Functions
TABLE OF FUNCTIONS Wire colour Function Description Black Power supply Voltage : 12 ÷ 24 Vdc (non-polarized) Peak current : 3 A Black Current (holding) : 300 mA Orange (green band) Common contact Voltage-free microswitch for remote signalling of deadbolt position. Red (green band) Contact (N.O.) See NOTES. - Page 17 NOTES Green-banded wire connections (Brown, Red and Orange) shall be used only if local or remote signalling of deadbolt status is required (e.g. to indicator lamp item 55010-55030). The Alarm / Failure connection (Blue) is an open collector output that can be connected to low-consumption loads (max 50 mA, �g.
- Page 18 Fig. 1 Fig.1: Connection of the Alarm / Failure output directly to low-power BLACK loads, such as LEDs or Buzzers. BLACK Do not connect to loads greater than 50 mA directly. R = 1kΩ Buzzer (Item 246 - 248 only). BLUE Fig.
-
Page 19: Application Examples
APPLICATION EXAMPLES Solenoid lock Prima series Solenoid lock Prima OP series Installation on door frame (read the warnings on pag. 10). Legend 1 Security solenoid lock 2 Striking plate 3 Indicator lamp 4 Opening button 5 Power supply Solenoid lock Classica series... -
Page 20: Sample Connection For Apartment Building Door
SAMPLE CONNECTION FOR APARTMENT BUILDING DOOR CAUTION : for POWER CONNECTIONS (black wires) do not use cables longer or with a cross-section smaller than: Minimum cross-section Maximum length 0,75 mm² Up to 5 m 1,5 mm² 5 to 10 m 2,5 mm²... -
Page 21: Basic Interlocking Diagram
BASIC INTERLOCKING DIAGRAM In order to use the interlock feature (linking the opening of one lock to the closing of another) simply connect Ground (GND, Green/Black) and Interlock contacts (Yellow/Black) to each other of the N installed locks. INDICATOR LAMP INDICATOR LAMP POWER SUPPLY ITEM 55010... -
Page 22: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution The deadbolt does not Striking plate Check the correct positioning close by shutting the and/or alignment of the striking door. plate. Opening Check that the opening command command does not remain active inde�nitly (e.g. button always pressed, short-circuited wires). - Page 23 Internal optical end stops obscured by dirt or non functioning. Contact OPERA customer care In case of persistent problems and/or defective lock, contact the authorized dealer or OPERA customer care. Tel: +39 059 451708 e-mail: info@opera-access.it AVOID INTERVENTIONS THAT WILL VOID THE WARRANTY.
- Page 24 For products: PRIMA PRIMA OP PRIMA MAXI CLASSICA 24600 OP55036 24620 26600 24608 OP55038 24628 26608 24800 OP55039.1 24820 26800 24808 OP55039.2 24828 26808 25600 OP5503910.1 25620 27600 25608 OP5503910.2 25628 27608 25800 25820 27800 25808 25828 27808 25900 OP54036...
