Prima Maxi Series - Opera PRIMA Installation Instructions Manual

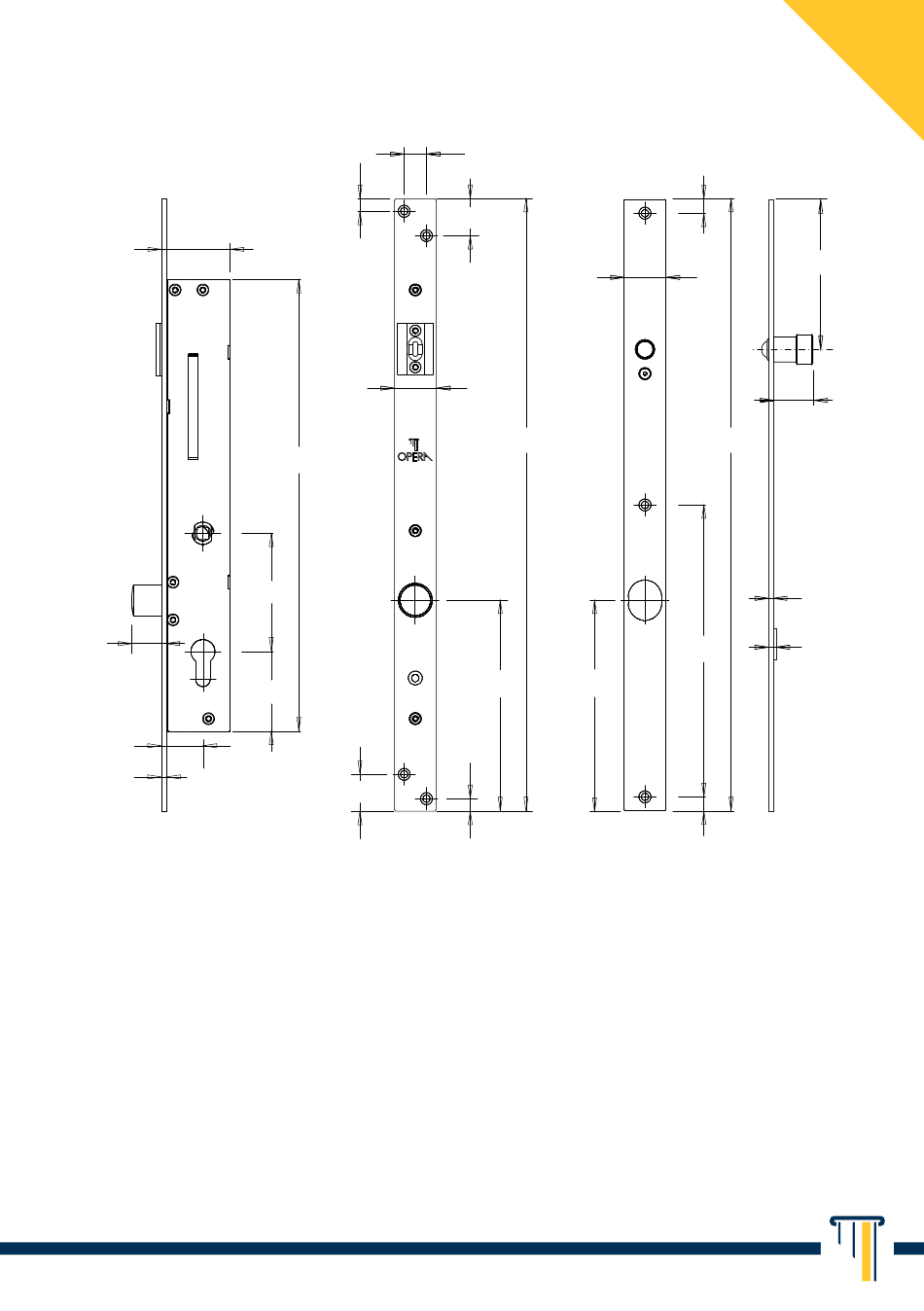

TECHNICAL SPECIFICATIONS AND DIMENSIONS - PRIMA MAXI series
45
23
30
4
UPRIGHT SECURITY SOLENOID LOCK
› Stainless steel face plate and striking plate, hardened steel deadbolt
› Versions with fail-safe or fail-secure deadbolt
› Power supply: 12 ÷ 24 Vdc, peak current 3 A, holding current 130 ÷ 230 mA
› Ready for interlocking between 2 or more doors
› Opto-electronic control of deadbolt position
› Electronic control (can be disabled) of reclosing timings
› Anti-rebound alignment ball
