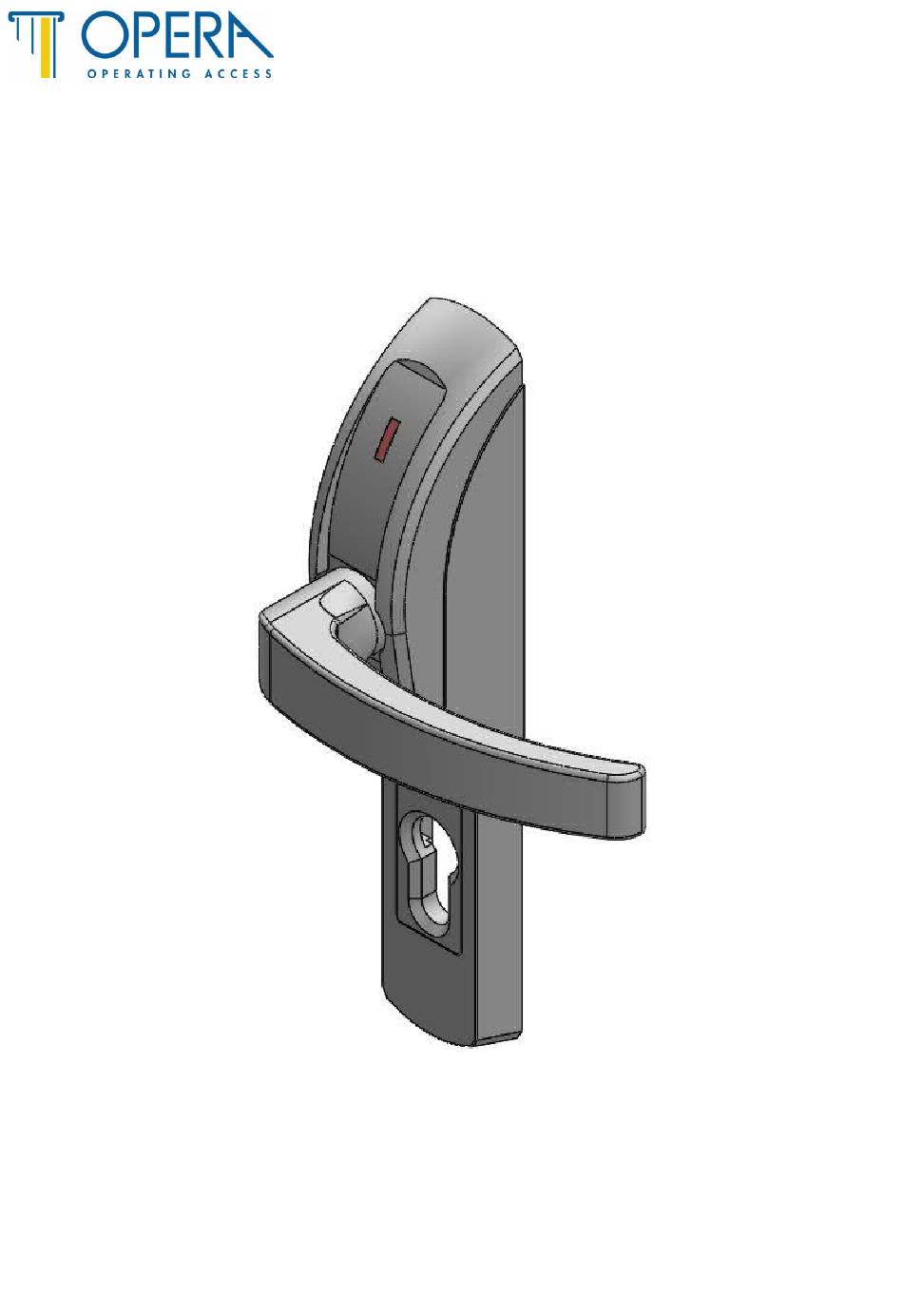

- Page 1 ELECTRIC HANDLE “OUVERTURE EXIT””...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS 40610 40611 40810 40811 OPERATION CONDITION Handle Activated Handle Activated Handle Disabled Handle Disabled WITHOUT CURRENT 72 mm 72 mm 72 mm 72 mm INTERAXLE SPACING 92 mm 92 mm 92 mm 92 mm HAND Non handed Non handed Non handed Non handed SPINDLE DRIVE... -
Page 3: Installation
INSTALLATION Check the holes for the handle frame, the • fixing screws and the cylinders are present on the door. Insert the handle as shown in the figure and • rotate desired direction. This operation must be done with handle powered NB : for versions 40610 and 40611 this operation must be performed when power is... - Page 4 Fix the back plate with the appropriate screws • and make sure the fixing bushes are in a compatible position with the lock. Fit the cylinder on the lock and do not fasten • the screw too tight. Reduce spindle drive and fixing screws •...
-
Page 5: Mode Of Operation
MODE OF OPERATION Direct activation with power supply (without time delay) 40610 serie When the electric handle is disabled (in neutral), the red LED is on. Without power, LED turns off and handle enables door opening as long as power is OFF. 40810 serie When the electric handle is disabled (in neutral), the green LED is off. - Page 6 TIME DELAY CONFIGURATION (Only for 40611 – 40811 versions) The electric handle has a time delay system inside which enables to keep the handle enabled for the time selected by the user. Time delay configuration at 0 seconds When time delay configuration is set at 0 seconds, previous time configurations are canceled.
- Page 7 ACTIVATION AND DEACTIVATION OF THE LOWER WHITE/BLUE LED's LIGHTING (40611 – 40811 versions only) White/blue LED's deactivation 1. Connect the N.O. programming switch (not included) to the blue and to the green wire of the ground singals (GND). 2. Press the programming switch when the electric handle is deactivated. 3.
-
Page 8: Installation Examples
INSTALLATION EXAMPLES Electric handle with Push-Bar on full metal fireproof doors Electric handle with Touch-Bar on full metal fireproof doors Electric handle with opposite side handle on full metal fireproof doors... - Page 9 Electric handle with Push-Bar on glazed fireproof doors Electric handle with Touch-Bar on glazed fireproof doors...
- Page 10 Electric handle with opposite side handle on glazed fireproof doors...
-
Page 11: Connecting Diagram
CONNECTING DIAGRAM “DC” power supply with direct electricity activation for items 40610 – 40611* – 40810 - 40811* Power supply 230 Vac In the 406 version use a N.C. switch WHITE (POWER SUPPLY) 12 / 24 Vdc GREY (POWER SUPPLY) “AC”... - Page 12 “DC” power and opening by contact for items 40611 – 40811 Power supply 230 Vac WHITE (POWER SUPPLY) 12 / 24 Vdc GREY (POWER SUPPLY) RED (OPENING) GREEN (GND) NO POWER SUPPLY LIGHT BLUE (PROGRAMMING) POSITIVE POWER SUPPLY ORANGE (OPEN COLLECTOR) 12/24 Vdc MAX 30 mA “AC”...
- Page 13 GREY (POWER SUPPLY) RED (OPENING)) GREEN (GND) LIGHT BLUE (PROGRAMMING) ORANGE (OPEN COLLECTOR) COM. N.O. RELAY MODULE ITEM 05258 (to order separately) 12 Vac from INTERCOM OPERA s.r.l. Tel. +39 059451708 www.opera-italy.com – info@opera-access.it n° 1506/ 1925 Rev.0 del 09/06/15...
