Installation - Opera PRIMA Installation Instructions Manual

8 8
CAUTION : do not �le or drill holes in the �xture with the solenoid bolt
installed. Do not use the solenoid bolt as a drilling template. Risk of
damage or jamming of the internal mechanics due to dust and/or shavings.
Do not weld or solder the striking plate to the door frame.
Do not use non-direct connection systems (eg. spring contacts) to pass the
connecting wires through: use a cable cover (e.g. item 08600).

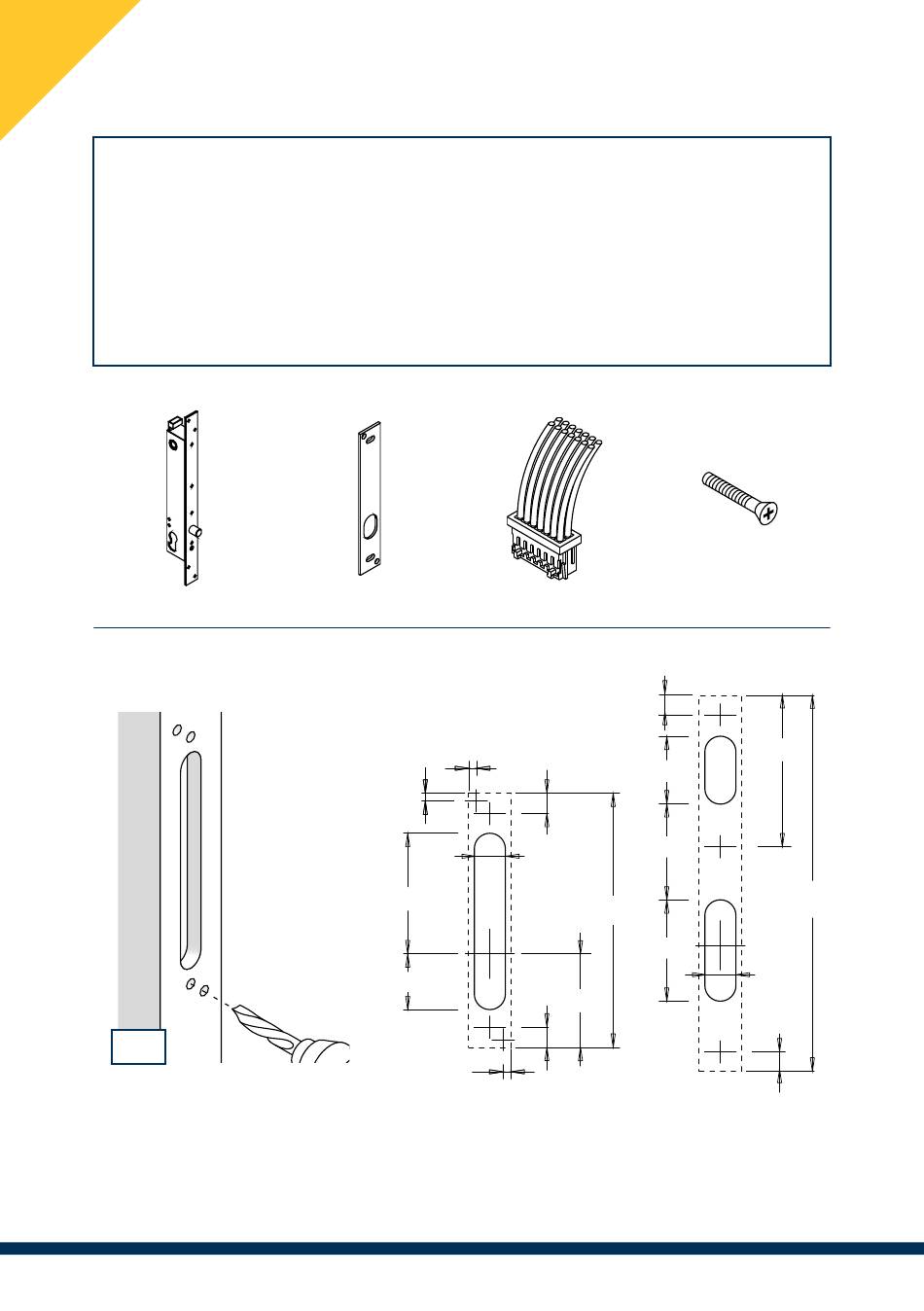

Supplied in package (standard)
Solenoid lock
Drilling dimensions for striking plates
1
(1) Drill holes for inserting the striking plate according to the diagram shown here.
The striking plate is essential for the operation of the solenoid lock.

INSTALLATION

Striking plate
PRIMA /
PRIMA OP /
CLASSICA
4.5
20
45
35
4.5
Connector
10
12
4.5
50
125
150
60
12 55
Cylinder screw
PRIMA MAXI
230
440
26
10
