Basic Interlocking Diagram - Opera PRIMA Installation Instructions Manual

In order to use the interlock feature (linking the opening of one lock to the
closing of another) simply connect Ground (GND, Green/Black) and
Interlock contacts (Yellow/Black) to each other of the N installed locks.
POWER SUPPLY
12/24V
3A DC
DOOR 1
+V -V
BLACK
BLACK
GREEN/BLACK
RED/BLACK
BROWN
(N.C.)
GREEN BAND ¹
ORANGE
(COM)
GREEN BAND ¹
RED
(N.O.)
GREEN BAND ¹
YELLOW/BLACK
YELLOW
GREEN
ORANGE
E
¹ GREEN BAND contacts are to be used only if a deadbolt status signalling is required
(by means of optional indicator lamp, e.g. item 55010 or item 55030).
² the HOLD OPEN contact (optional) is to be used only if continuous unlocking of the
deadbolt is required for prolonged periods (e.g. Timer or Key Switch).
³ Desk Control Console, individual push-buttons on the doors or N parallel control
devices of a different kind can be installed to open the doors.
4
Only on item 246 - 248.

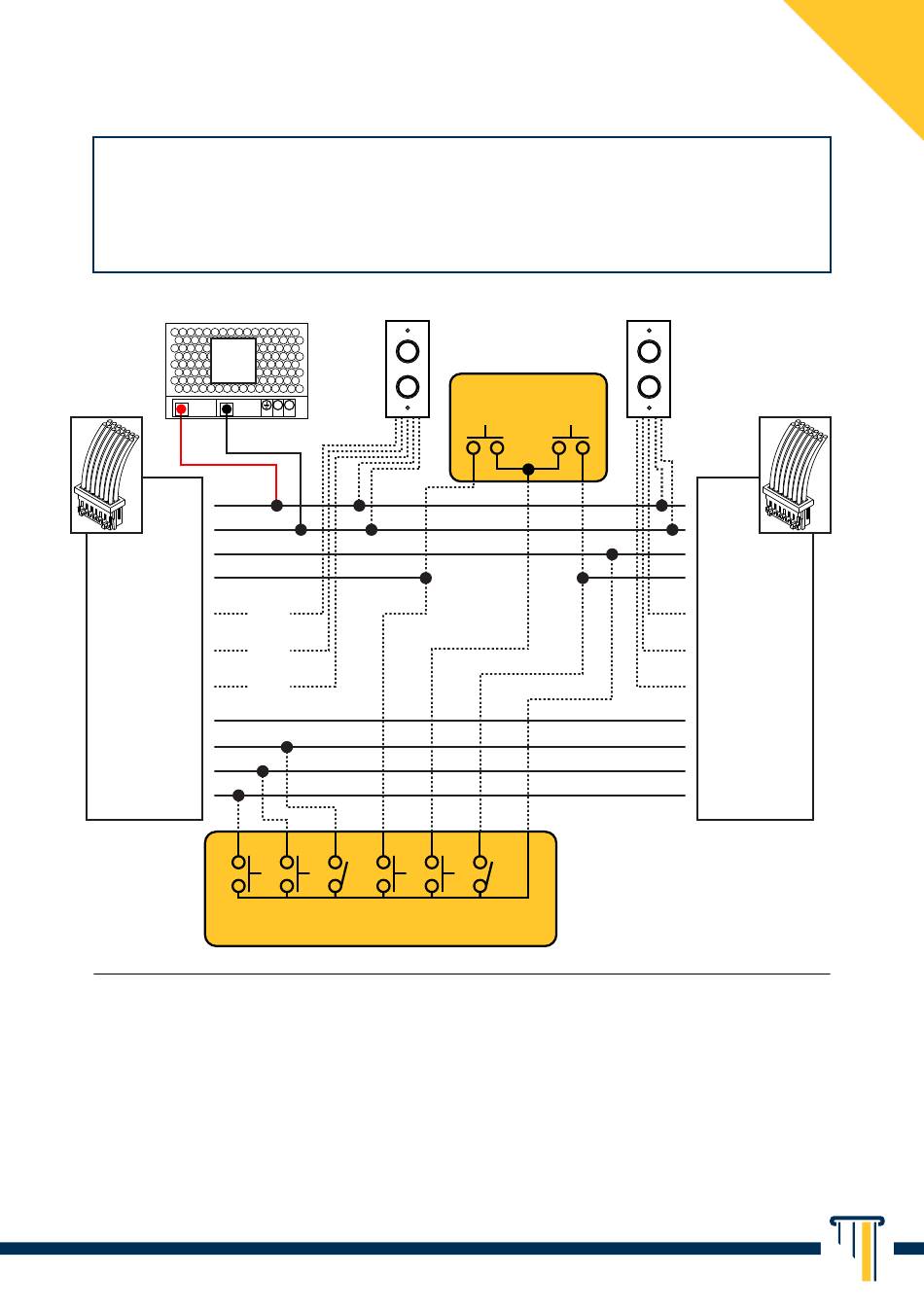

BASIC INTERLOCKING DIAGRAM

INDICATOR LAMP
N L
R LK D1
DESK CONTROL CONSOLE³
(OPTIONAL, INSTALLER'S RESPONSIBILITY)
ITEM 55010
(OPTIONAL)
N.O. DOOR MOUNTED
PUSH-BUTTONS³
(OPTIONAL)
E
D2 A/M
R
LK
D1
D2
A/M AUTOMATIC / MANUAL
INDICATOR LAMP
ITEM 55010
(OPTIONAL)
DOOR 2
BLACK
BLACK
GREEN/BLACK
RED/BLACK
BROWN
GREEN BAND ¹
ORANGE
GREEN BAND ¹
RED
GREEN BAND ¹
YELLOW/BLACK
YELLOW
GREEN
ORANGE
4
EMERGENCY RELEASE
4
RESET
LOCKOUT (BUTTON DISABLING)
UNLOCK DOOR 1
UNLOCK DOOR 2
(BUTTON ENABLING)
