IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
CAUTION – To prevent electrical shock, do not mate unit connector until installation is complete and A.C. power
1.
is supplied to the unit.
2.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by disconnect-
ing the unit connector.
3.
CAUTION – This is a sealed unit. The integral, high temperature Ni-Cad battery is not replaceable. Replace the
entire unit when necessary and recycle or dispose of the nickel-cadmium battery properly.
DO NOT USE OUTDOORS. The I-320-HE is for use with grounded, UL Listed, damp location rated, indoor fix-
4.
tures. Not for use in heated air outlets or hazardous locations.
5.
The I-320-HE requires an unswitched A.C. power source of either 120 or 277 volts.
When the I-320-HE is installed on the same branch circuit, refer to Illustration 3, Figures A and B for input wiring.
6.
When installed on separate branch circuits, refer to Illustration 3, Figures C and D for input wiring. Per NEC, the
I-320-HE and A.C. ballast must be on the same panel board.
7.
Do not mount near gas or electric heaters.
The I-320-HE should be mounted in locations and at heights where it will not readily be subjected to tampering
8.
by unauthorized personnel.
The I-320-HE will cold strike and operate one 14W through 54W T5 or 2´-4´ T8 instant start or rapid start fluores-
9.
cent lamp, including energy saving and 4-pin compact lamps for 90 minutes.
10.
The I-320-HE is compatible with most A.C. ballasts (including multiple lamp) as follows:
Magnetic ballasts – one lamp emergency operation.
Electronic ballasts – one lamp emergency operation.
T he I-320-HE meets CEC requirements for a small battery charger per CEC-400-2014-009-CMF.
11.
12.
Suitable for use in damp locations and in enclosed and gasketed fixtures.
13.
For use in 0° C minimum, 55° C maximum ambient temperatures.
14.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, will
void warranty, and result in non-compliance with UL specifications .
15.
Do not use this equipment for other than intended use.
16.
Install in accordance with the National Electrical Code and local regulations.
17.
Installation and servicing should be performed by qualified personnel.
18.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility
before final installation.
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS
Meets CEC
Energy Efficiency
Standards

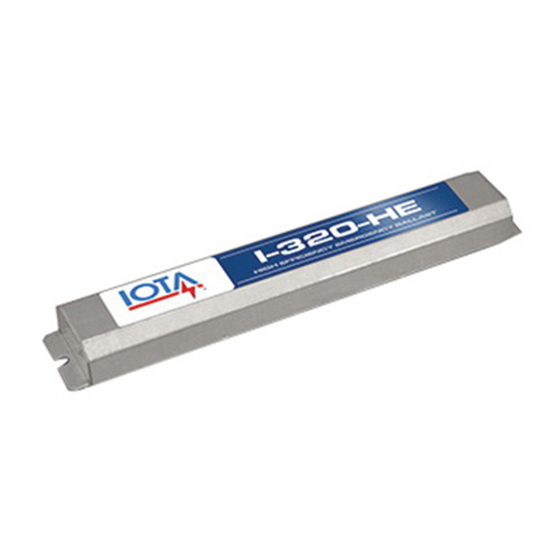

I-320-HE
TBTS
HIGH-EFFICIENCY
EMERGENCY LIGHTING
EQUIPMENT

Advertisement

loading

Summary of Contents for IOTA I-320-HE

  • Page 1 The I-320-HE requires an unswitched A.C. power source of either 120 or 277 volts. When the I-320-HE is installed on the same branch circuit, refer to Illustration 3, Figures A and B for input wiring. When installed on separate branch circuits, refer to Illustration 3, Figures C and D for input wiring. Per NEC, the I-320-HE and A.C.
  • Page 2: Installation Instructions

    5. WIRING THE A.C. INPUT A. When the I-320-HE is installed on the same branch circuit, refer to Illustration 3, Figures A and B for input wiring. When installed on separate branch circuits, refer to Illustration 3, Figures C and D for input wiring. Per NEC, the I-320-HE and A.C.
  • Page 3: Completing Installation

    OPERATION Normal Mode – A.C. power is present. The A.C. ballast operates the fluorescent lamp(s) as intended. The I-320-HE is in the standby charging mode. The TBTS will be lit providing a visual indication that the battery is being charged.
  • Page 4: Typical Wiring Diagrams

    SWITCHED OR UNSWITCHED LINE UNSWITCHED LINE BLUE BLUE BLACK BLUE BLUE BLACK A.C. BLUE/WHT BLUE A.C. WHITE BLUE/WHT WHITE Ballast RED/WHT I-320-HE EMERGENCY Ballast RED/WHT I-320-HE EMERGENCY BALLAST BALLAST YELLOW YELLOW WHT/BLK YEL/BLK WHT/BLK YEL/BLK *LAMP UNIT *LAMP UNIT CONNECTOR...
  • Page 5: Additional Wiring Diagrams

    Wiring and Troubleshooting Tips are available on-line at http://www.iotaengineering.com/wiringtips.pdf 1. THREE LAMP RAPID START BALLAST THREE LAMP RAPID START BALLAST SWITCHED OR UNSWITCHED LINE BLUE BLACK BLUE/WHT WHITE A.C. ORANGE BLUE ORANGE I-320-HE BLUE Ballast EMERGENCY YELLOW RED/WHT BLU/WHT BALLAST YELLOW BLU/WHT BROWN YELLOW BROWN...
