INSTRUCTION MANUAL
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
WARNING – Risk of personal injury or property damage. When installing sealed lead-acid (SLA) batteries in
1.
sealed and gasketed luminaires a method of proper venting must be incorporated.
2.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by discon-
necting the battery unit connector.
3.
CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before
opening.
4.
Do not join the battery unit connector until installation is complete. If AC voltage is supplied to the unit with the
unit connector open, the IPS Test Switch will start blinking after 10 seconds. This indicates that either the bat-
tery is disconnected or the unit connector is open.
5.
The battery is field replaceable. Contact Customer Service for information on replacement. Use caution when
replacing battery, and dispose of battery properly.
6.
The ILB CP18 HE CW is for use with grounded LED luminaires listed to UL standards. Not for use in heated
air outlets or hazardous locations.
7.
The ILB CP18 HE CW requires an unswitched A.C. power source of 120 to 277 volts AC, 50/60Hz.
The ILB CP18 HE CW and A.C. driver must be on the same branch circuit.
8.
9.
Do not mount near gas or electric heaters.
The ILB CP18 HE CW should be mounted in locations and at heights where it will not readily be subjected to
10.
tampering by unauthorized personnel.
11.
The ILB CP18 HE CW will supply 20-58 VDC output at 18 Watts for 90 minutes.
12.
The ILB CP18 HE CW is certified in the CA Title 20 Modernized Appliance Efficiency Database System
(MAEDBS) as a small battery charger.
13.
Suitable for use in damp locations and enclosed and gasketed fixtures if proper ventilation method is present.
14.
For use in -20° C minimum, 60° C maximum ambient temperatures.
15.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void
warranty, and result in non-compliance with UL specifications.
16.
Do not use this equipment for other than intended use.
17.
Install in accordance with the National Electrical Code and local regulations.
18.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility before
final installation. See addendum for compatibility and covered luminaire requirements.
EMERGENCY LED DRIVER FOR USE
WITH LED LUMINAIRES IDENTIFIED
IN THE MANUFACTURER'S
INSTALLATION INSTRUCTIONS
E99113
SAVE THESE INSTRUCTIONS
HIGH EFFICIENCY PERFORMANCE
MEETS CA T20 BATTERY CHARGER
EFFICIENCY STANDARDS

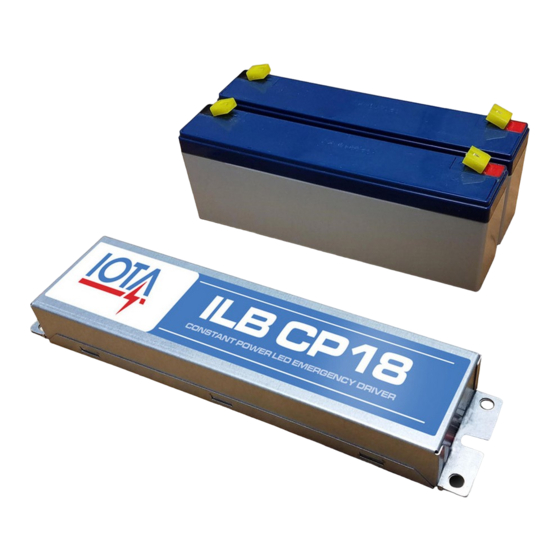

ILB CP18 HE CW
COLD WEATHER
HIGH EFFICIENCY EMERGENCY
LIGHTING EQUIPMENT
FOR LED
Patented. See iotaengineering.com/patents for more details
Pb
THIS UNIT CONTAINS
SEALED LEAD ACID BATTERIES
PLEASE RECYCLE OR DISPOSE OF PROPERLY
