IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
CAUTION – The TBTS Test Button Component serves as the unit connector. The ILBLP CP HE SD will initi-
ate once both the TBTS until installation is complete and A.C. power is supplied to the unit.
2.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by discon-
necting the TBTS Test Button Component before servicing.
CAUTION – This equipment provides reduced current levels when higher voltage loads are connected. Load
3.
calibration is required to ensure proper operation (see page 4).
4.
CAUTION – This is a sealed unit. Components are not replaceable. Replace the entire unit when necessary.
CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before
5.
opening.
6.
The ILBLP CP HE SD is for use with grounded LED luminaires listed to UL standards. Not for use in heated
air outlets or hazardous locations.
The ILBLP CP HE SD and A.C. driver must be on the same branch circuit.
7.
8.
Do not mount near gas or electric heaters.
9.
The ILBLP CP HE SD should be mounted in locations and at heights where it will not readily be subjected to
tampering by unauthorized personnel.
10.
Product output voltage varies according to wattage. Refer to Illustration 1 for output voltage per model.
11.
The ILBLP CP HE SD is certified in the CA Title 20 Modernized Appliance Efficiency Database System (MAED-
BS) as a small battery charger.
12.
Suitable for use in damp locations.
13.
For use in 0° C minimum, 55° C maximum ambient temperatures.
14.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void
warranty, and result in non-compliance with UL specifications.
15.
Do not use this equipment for other than intended use.
16.
Install in accordance with the National Electrical Code and local regulations.
17.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility before
final installation. See addendum for compatibility and covered luminaire requirements.
LED CLASS 2
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS
HIGH EFFICIENCY PERFORMANCE
MEETS CA T20 BATTERY CHARGER
EFFICIENCY STANDARDS

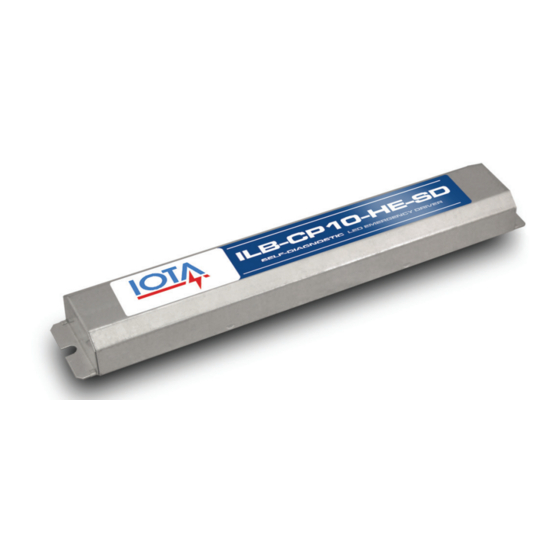

ILBLP CP HE SD
"B" MOUNTING STYLE
CONSTANT POWER
EMERGENCY LIGHTING EQUIPMENT
FOR LED

Advertisement

Table of Contents
loading

Summary of Contents for IOTA ILBLP CP10

  • Page 1 ILBLP CP HE SD “B” MOUNTING STYLE CONSTANT POWER EMERGENCY LIGHTING EQUIPMENT (800) 866-4682 • www.iotaengineering.com FOR LED INSTRUCTION MANUAL IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS CAUTION –...
  • Page 2: Installation Instructions

    SPECIFICATIONS - Illustration 1 Model Input Voltage (Min - Max) Output Voltage (Min - Max) Minimum Operation ILBLP CP10 120-277 VAC 15-55 VDC 90 Minutes ILBLP CP15 120-277 VAC 20-55 VDC 90 Minutes INSTALLATION INSTRUCTIONS CAUTION: Before installing, make certain A.C. power is off and the Threaded Body Test Switch (TBTS) is disconnected.
  • Page 3: Completing Installation

    The ILBLP CP HE SD requires an unswitched AC input of 120/277 volts. Connect the BLACK wire to the 120/277 Line, and the WHITE wire to the Neutral. CAUTION: The case must be grounded. WHITE NEUTRAL IOTA ILBLP BLACK (120 TO 277V, 50/60HZ) UNSWITCHED EMERGENCY DRIVER...
  • Page 4: Testing And Maintenance

    AC (NORMAL) UNSWITCHED LED OUTPUT (+) LED INPUT (+) LOAD DRIVER WHITE NEUTRAL WHT/RED OR RED/WHT RED (+) IOTA ILBLP WHITE BLUE (-) EMERGENCY DRIVER VIOLET/WHITE (+) UNSWITCHED BLACK (120 TO 277V, 50/60HZ) 24/7 POWER YELLOW Cap unused LEDCODE (+)
  • Page 5: Manuel D'instructions

    ILBLP CP HE SD STYLE D’INSTALLATION « B » DISPOSITIF D’ÉCLAIRAGE PUISSANCE CONSTANTE (800) 866-4682 • www.iotaengineering.com POUR DEL MANUEL D’INSTRUCTIONS MISES EN GARDE IMPORTANTES LISEZ ET RESPECTEZ TOUTES LES CONSIGNES DE SÉCURITÉ MISE EN GARDE – Le bouton d’essai du TBTS sert de connecteur d’unité. L’ILBLP CP HE SD se déclenchera une fois que le TBTS aura été...
  • Page 6: Instructions D'installation

    CARACTÉRISTIQUES – Illustration 1 Modèle Tension d’entrée (Min - Max) Tension de sortie (Min - Max) Durée Minimale ILBLP CP10 120-277 Vca 15-55 Vcc 90 Minutes ILBLP CP15 120-277 Vca 20-55 Vcc 90 Minutes INSTRUCTIONS D’INSTALLATION ATTENTION : Avant l’installation, assurez-vous que l’alimentation électrique est coupée et que le commutateur de test du corps fileté...
  • Page 7: Terminer L'installation

    NEUTRE PILOTE D’URGENCE NOIR (120 À 277 V, 50/60 HZ) ALIMENTATION 24/7 IOTA ILBLP SANS INTERRUPTEUR ÉTAPE 5 – FOURNIR L’ALIMENTATION SECTEUR A. Alimentez l’appareil sur le secteur de manière constante, et laissez-le se charger pendant au moins une heure avant d’en tester le fonctionnement.
  • Page 8: Entretien

    ENTRÉE DEL (+) ENTRÉE DEL (+) ENCEINTE BLANC NEUTRE BLC/ROU OU ROU/BLC ROUGE (+) PILOTE D’URGENCE BLANC BLEU (-) IOTA ILBLP VIOLET/BLANC (+) ALIMENTATION NOIR (120 À 277 v, 50/60Hz) 24/7 SANS JAUNE Mettez des fils de ACCESSOIRE DE LEDCODE (+) BRUN TEST TBTS LEDcode inutilisés...
