IOTA ILBHI CP HE SD HV Instruction Manual

“s” mounting style constant power emergency lighting equipment for led
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
(800) 866-4682 • www.iotaengineering.com
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
CAUTION – The TBTS Test Button Component serves as the unit connector. The ILBHI CP HE SD HV will
initiate once both the TBTS until installation is complete and A.C. power is supplied to the unit.
2.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by discon-
necting the TBTS Test Button Component before servicing.
CAUTION – This equipment provides reduced current levels when higher voltage loads are connected. Load
3.
calibration is required to ensure proper operation (see page 4).
4.
CAUTION – This is a sealed unit. Components are not replaceable. Replace the entire unit when necessary.
CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before
5.
opening.
6.
CAUTION – High voltage input. The ILBHI CP HE SD HV must be connected to an unswitched AC power
source of 347 to 480 Vac.
7.
The ILBHI CP HE SD HV is for use with grounded LED luminaires listed to UL standards. Not for use in
heated air outlets or hazardous locations.
8.
The ILBHI CP HE SD HV and A.C. driver must be on the same branch circuit.
9.
Do not mount near gas or electric heaters.
10.
The ILBHI CP HE SD HV should be mounted in locations and at heights where it will not readily be subjected
to tampering by unauthorized personnel.
11.
Product output voltage varies according to wattage. Refer to Illustration 1 for output voltage per model.
12.
The ILBHI CP HE SD HV is certified in the CA Title 20 Modernized Appliance Efficiency Database System
(MAEDBS) as a small battery charger.
13.
Suitable for use in damp locations.
14.
For use in 0° C minimum, 55° C maximum ambient temperatures.
15.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void
warranty, and result in non-compliance with UL specifications.
16.
Do not use this equipment for other than intended use.
17.
Install in accordance with the National Electrical Code and local regulations.
18.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility before
final installation. See addendum for compatibility and covered luminaire requirements.
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS
HIGH EFFICIENCY PERFORMANCE
MEETS CA T20 BATTERY CHARGER
EFFICIENCY STANDARDS

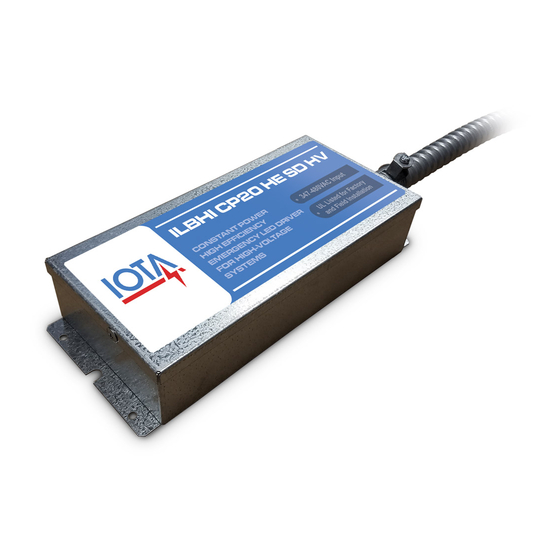

ILBHI CP HE SD HV
"S" MOUNTING STYLE
CONSTANT POWER
EMERGENCY LIGHTING EQUIPMENT
FOR LED

Advertisement

Table of Contents
loading

Related Manuals for IOTA ILBHI CP HE SD HV

Summary of Contents for IOTA ILBHI CP HE SD HV

  • Page 1 CAUTION – High voltage input. The ILBHI CP HE SD HV must be connected to an unswitched AC power source of 347 to 480 Vac. The ILBHI CP HE SD HV is for use with grounded LED luminaires listed to UL standards. Not for use in heated air outlets or hazardous locations.

  • Page 2: Installation Instructions

    Refer to the appropriate wiring diagram below. Make sure all connections are in accordance with NEC and any other local requirements. The ILBHI CP HE SD HV is designed to interface with high voltage (non-class 2) LED Loads. See Illustration 1 for output voltage ratings per ILBHI model.

  • Page 3: Completing Installation

    A.C. power is present. The A.C. Driver operates the LED Module as intended. The ILBHI CP HE SD HV is in the standby charging mode. The TBTS will be lit providing a visual indication that the battery is being charged.

  • Page 4: Testing And Maintenance

    Any failures detected during Load Calibration will be indicated on the TBTS (see Table A). Maintenance When performing maintenance on the ILBHI CP HE SD HV or the emergency luminaire, the ILBHI CP HE SD HV battery cir- cuit must be completely powered down by performing the following steps: 1) Disconnect AC power.

  • Page 5: Manuel D'instructions

    Le pilote ILBHI CP HE SD HV et c.a. doit être sur le même circuit de dérivation. Ne pas installer à proximité d’appareils de chauffage au gaz ou électriques. L’ILBHI CP HE SD HV doit être installé à des endroits et à des hauteurs où il ne sera pas facilement altéré par du personnel non autorisé.

  • Page 6: Instructions D'installation

    Reportez-vous au diagramme de câblage approprié ci-dessous. Assurez-vous que toutes les connexions sont faites conformément aux exigences du NEC et aux exigences locales. L’ILBHI CP HE SD HV est conçu pour s’interfacer avec des charges LED haute tension (non classe 2). Voir l’illustration 1 pour les tensions nominales de sortie par modèle ILBHI.

  • Page 7: Terminer L'installation

    Le module DEL est allumé et la sortie est réduite pendant un minimum de 90 minutes. Lorsque l’alimenta- tion secteur se rétablit, l’ILBHI CP HE SD HV bascule de nouveau en mode normal et le chargement de la batterie reprend.

  • Page 8: Entretien

    Toute défaillance détectée pendant l’étalonnage de la charge sera indiquée sur le TBTS (voir Tableau A). Entretien Lorsque vous effectuez un entretien sur le ILBHI CP HE SD HV ou le luminaire d’urgence, le circuit de batterie ILBHI CP HE SD HV doit être complètement mis hors tension en suivant les étapes suivantes: 1) Débranchez l’alimentation c.a.l‘ILBHI CP HE SD HV passe en MODE D’URGENCE.
