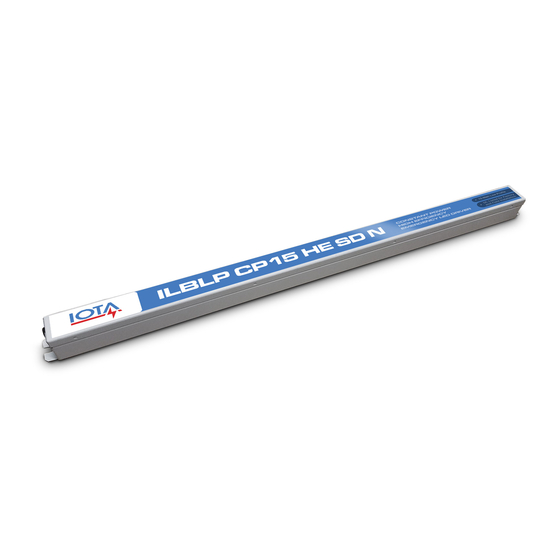

IOTA ILBLP CP HE SD Instruction Manual

Lc mounting style constant power emergency lighting equipment for led
Hide thumbs Also See for ILBLP CP HE SD:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
(800) 866-4682 • www.iotaengineering.com
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
CAUTION – The TBTS Test Button Component serves as the unit connector. The ILBLP CP HE SD LC will
1.
initiate once both the TBTS until installation is complete and A.C. power is supplied to the unit.
2.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by discon-
necting the TBTS Test Button Component before servicing.
CAUTION – this equipment provides reduced current levels when higher voltage loads are connected. Load
3.
calibration is required to ensure proper operation (see page 4).
4.
CAUTION – This is a sealed unit. Components are not replaceable. Replace the entire unit when necessary.
5.
CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before
opening.
CAUTION – For factory installation only. A suitable enclosure shall be provided for the Emergency LED Driver
6.
and battery.
7.
The ILBLP CP HE SD LC is for use with grounded LED luminaires listed to UL standards. Not for use in
heated air outlets or hazardous locations.
The ILBLP CP HE SD LC and A.C. driver must be on the same branch circuit.
8.
9.
Do not mount near gas or electric heaters.
10.
The ILBLP CP HE SD LC should be mounted in locations and at heights where it will not readily be
subjected to tampering by unauthorized personnel.
11.
Product output voltage varies according to wattage. Refer to Illustration 1 for output voltage ratings.
12.
The ILBLP CP HE SD LC is certified in the CA Title 20 Modernized Appliance Efficiency Database System
(MAEDBS) as a small battery charger.
13.
Suitable for use in damp locations.
14.
For use in 0° C minimum, 55° C maximum ambient temperatures.
15.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void
warranty, and result in non-compliance with UL specifications.
16.
Do not use this equipment for other than intended use.
17.
Install in accordance with the National Electrical Code and local regulations.
18.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility before
final installation. See addendum for compatibility and covered luminaire requirements.
LED CLASS 2
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS
HIGH EFFICIENCY PERFORMANCE
MEETS CA T20 BATTERY CHARGER
EFFICIENCY STANDARDS
ILBLP CP HE SD
"LC" MOUNTING STYLE
CONSTANT POWER
EMERGENCY LIGHTING EQUIPMENT
FOR LED

Advertisement

Table of Contents
loading

Related Manuals for IOTA ILBLP CP HE SD

Summary of Contents for IOTA ILBLP CP HE SD

  • Page 1 CAUTION – For factory installation only. A suitable enclosure shall be provided for the Emergency LED Driver and battery. The ILBLP CP HE SD LC is for use with grounded LED luminaires listed to UL standards. Not for use in heated air outlets or hazardous locations.

  • Page 2: Installation Instructions

    CAUTION: Before installing, make certain A.C. power is off and the Threaded Body Test Switch (TBTS) is disconnected. STEP 1 - MOUNTING THE ILBLP CP HE SD Place the ILBLP CP HE SD on the mounting surface and fasten through the mounting slots using serrated head screws (U3840).

  • Page 3: Completing Installation

    Normal Mode A.C. power is present. The A.C. Driver operates the LED Module as intended. The ILBLP CP HE SD is in the standby charg- ing mode. The TBTS will be lit providing a visual indication that the battery is being charged.

  • Page 4: Testing And Maintenance

    Load Calibration To ensure proper operation, Load Calibration is required whenever the LED load connected to the ILBLP CP HE SD LC is changed. Note: Load Calibration happens automatically 48 hours after the ILBLP CP HE SD LC is first installed. If after instal- lation, the connected LED load is changed, Load Calibration will need to be performed.

  • Page 5: Manuel D'instructions

    Le pilote ILBLP CP HE SD LC et c.a. doit être sur le même circuit de dérivation. Ne pas installer à proximité d’appareils de chauffage au gaz ou électriques. L’ILBLP CP HE SD LC doit être installé à des endroits et à des hauteurs où il ne sera pas facilement altéré par du personnel non autorisé.

  • Page 6: Instructions D'installation

    ATTENTION : Avant l’installation, assurez-vous que l’alimentation électrique est coupée et que le commutateur de test du corps fileté (TBTS) est déconnecté. ÉTAPE 1 – INSTALLER L’ILBLP CP HE SD Placez l’unité sur la surface de montage et attachez-la dans les fentes de montage à...

  • Page 7: Terminer L'installation

    Le module DEL est allumé et la sortie est réduite pendant un minimum de 90 minutes. Lorsque l’alimenta- tion secteur se rétablit, l’ILBLP CP HE SD bascule de nouveau en mode normal et le chargement de la batterie reprend.

  • Page 8: Entretien

    Toute défaillance détectée pendant l’étalonnage de la charge sera indiquée sur le TBTS (voir Tableau A). Entretien Lorsque vous effectuez un entretien sur le ILBLP CP HE SD LC ou le luminaire d’urgence, le circuit de batterie ILBLP CP HE SD LC doit être complètement mis hors tension en suivant les étapes suivantes: 1) Débranchez l’alimentation c.a.l‘ILBLP CP HE SD LC passe en MODE D’URGENCE.
