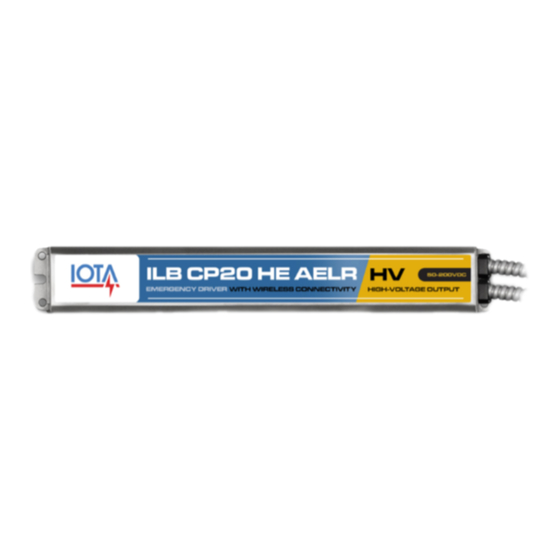

IOTA ILB CP20 HE AELR HV Instruction Manual

“a” mounting style bluetooth-enabled emergency lighting equipment for led
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
P.O. BOX 11846 TUCSON, AZ 85734
(520) 294-3292
• FAX (520) 741-2837
www.iotaengineering.com
INSTRUCTION MANUAL
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
CAUTION – To prevent electrical shock, do not mate unit connector until installation is complete and A.C.
1.
power is supplied to the unit.
2.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by discon-
necting the unit connector.
3.
CAUTION – This is a sealed unit. Components are not replaceable. Replace the entire unit when necessary.
CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before
4.
opening.
5.
The ILB CP20 HE AELR HV is for use with grounded LED luminaires listed to UL standards. Not for use in
heated air outlets or hazardous locations.
6.
The ILB CP20 HE AELR HV requires an unswitched A.C. power source of 120 to 277 volts AC, 50/60Hz.
The ILB CP20 HE AELR HV and A.C. driver must be on the same branch circuit.
7.
8.
Do not mount near gas or electric heaters.
The ILB CP20 HE AELR HV should be mounted in locations and at heights where it will not readily be sub-
9.
jected to tampering by unauthorized personnel.
10.
The ILB CP20 HE AELR HV will supply 50-200 VDC output at the individual rated specification for 90 minutes.
See individual units for output specifications.
11.
The ILB CP20 HE AELR HV is certified in the CA Title 20 Modernized Appliance Efficiency Database System
(MAEDBS) as a small battery charger.
12.
Suitable for use in damp locations and plenum spaces.
13.
Suitable for luminaires, recessed Type IC (intended for insulation contact).
14.
For use in 0° C minimum, 55° C maximum ambient temperatures.
15.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void
warranty, and result in non-compliance with UL specifications.
16.
Do not use this equipment for other than intended use.
17.
Install in accordance with the National Electrical Code and local regulations.
18.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility before
final installation. See addendum for compatibility and covered luminaire requirements.
EMERGENCY LED DRIVER FOR USE
WITH LED LUMINAIRES IDENTIFIED
IN THE MANUFACTURER'S
INSTALLATION INSTRUCTIONS
E99113
ILB CP20 HE AELR HV
SAVE THESE INSTRUCTIONS
HIGH EFFICIENCY PERFORMANCE
MEETS CA T20 BATTERY CHARGER
EFFICIENCY STANDARDS
"A" MOUNTING STYLE
BLUETOOTH-ENABLED EMERGENCY
LIGHTING EQUIPMENT FOR LED

Advertisement

loading

Related Manuals for IOTA ILB CP20 HE AELR HV

Summary of Contents for IOTA ILB CP20 HE AELR HV

  • Page 1 CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before opening. The ILB CP20 HE AELR HV is for use with grounded LED luminaires listed to UL standards. Not for use in heated air outlets or hazardous locations.

  • Page 2: Installation Instructions

    APPLICATION The ILB CP20 HE AELR HV can be used with most LED loads that operate at 50-200 VDC. See the ILB Model Specification Chart for output specifications of the unit being installed. 1. The ILB CP20 HE AELR HV series has been evaluated to and found ILB MODEL SPECIFICATION CHART compliant to UL standard 924.

  • Page 3: Completing Installation

    Normal Mode A.C. power is present. The A.C. Driver operates the LED Module as intended. The ILB CP20 HE AELR HV is in the standby charging mode. The TCTS will be lit providing a visual indication that the battery is being charged.
  • Page 4 (LEDCODE -) MODULE COMMON FLEX FLEX RED (+) UNIT BLUE (-) ILB CP HE AELR CONNECTOR IOTA ILB CP HE CLSR EMERGENCY DRIVER RED/BLK BLK/WHT EMERGENCY DRIVER WHT/RED SWITCHED OR BLK/WHT ORANGE UNSWITCHED ATTENTION: DO NOT MATE UNIT CONNECTOR UNTIL INSTALLATION IS COMPLETE AND AC POWER IS SUPPLIED.

  • Page 5: Testing And Maintenance

    Load Calibration 48 hours after the unit connector is joined, the ILB CP20 HE AELR HV will conduct a Load Calibration. Note: after the Load Calibration is complete, any changes to the LED load that will affect its nominal input voltage will necessitate a new Load Calibration. See Table 2 for the sequence of button presses to conduct a manual Load Calibration.
  • Page 6 The purpose of this addendum is to sufficiently identify electrical compatibility and predictable emergency light output of the LED luminaire when used with the IOTA ILB CP Series LED emergency drivers. Verification of these operating traits does not constitute a code-compliant, as-installed emergency egress system. It is still the responsibility of the Designer/ Specifier to assure appropriate light levels are achieved during emergency operation of the luminaire in accordance with Federal, state and local municipal codes regarding path of egress illumination.
