P.O. BOX 11846 TUCSON, AZ 85734
(520) 294-3292
• FAX (520) 741-2837
www.iotaengineering.com
INSTRUCTION MANUAL
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
CAUTION – The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not
1.
disassemble, heat above 60°C(140°F), or incinerate. Only install the provided battery and don't attempt re-
placement. Use of another battery may present a risk of fire or explosion.
2.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by discon-
necting the battery unit connector.
3.
CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before
opening. Not for field installation. Factory install only.
4.
Do not join the battery unit connector until installation is complete. If AC voltage is supplied to the unit with the
unit connector open, the IPS Test Switch will start blinking after 10 seconds. This indicates that either the bat-
tery is disconnected or the unit connector is open.
The ILB CP18 HE CW LP64 is for use with grounded LED luminaires listed to UL standards. Not for use in
5.
heated air outlets or hazardous locations.
6.
The ILB CP18 HE CW LP64 requires an unswitched A.C. power source of 120 to 277 volts AC, 50/60Hz.
The ILB CP18 HE CW LP64 and A.C. driver must be on the same branch circuit.
7.
8.
Do not mount near gas or electric heaters.
The ILB CP18 HE CW LP64 should be mounted in locations and at heights where it will not readily be sub-
9.
jected to tampering by unauthorized personnel.
The ILB CP18 HE CW LP64 will supply 20-58 VDC output at 18 Watts for 90 minutes.
10.
11.
The ILB CP18 HE CW LP64 is certified in the CA Title 20 Modernized Appliance Efficiency Database System
(MAEDBS) as a small battery charger.
12.
Suitable for use in damp locations and enclosed and gasketed fixtures if proper ventilation method is present.
13.
For use in -20° C minimum, 60° C maximum ambient temperatures.
14.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void
warranty, and result in non-compliance with UL specifications.
15.
Do not use this equipment for other than intended use.
16.
Install in accordance with the National Electrical Code and local regulations.
17.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility before
final installation. See addendum for compatibility and covered luminaire requirements.
EMERGENCY LED DRIVER FOR USE
WITH LED LUMINAIRES IDENTIFIED
IN THE MANUFACTURER'S
E99113

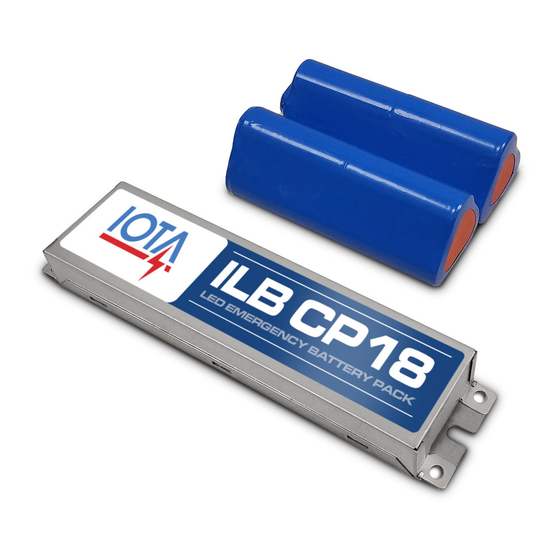

ILB CP18 HE CW LP64
Patented. See iotaengineering.com/patents for more details
SAVE THESE INSTRUCTIONS
HIGH EFFICIENCY PERFORMANCE
MEETS CA T20 BATTERY CHARGER
EFFICIENCY STANDARDS
COLD WEATHER
HIGH EFFICIENCY EMERGENCY
LIGHTING EQUIPMENT
FOR LED
Advertisement
Table of Contents
Related Manuals for IOTA ILB CP18 HE CW LP64
Summary of Contents for IOTA ILB CP18 HE CW LP64
- Page 1 IPS Test Switch will start blinking after 10 seconds. This indicates that either the bat- tery is disconnected or the unit connector is open. The ILB CP18 HE CW LP64 is for use with grounded LED luminaires listed to UL standards. Not for use in heated air outlets or hazardous locations.
- Page 2 VERIFYING COMPATIBILITY The ILB CP18 HE CW LP64 can be used with most LED loads that operate at 20-58 VDC up to a load rating of 18 Watts. 1. The ILB CP18 HE CW LP64 series has been evaluated to and found compliant to UL standard 924. The as-installed performance of system must meet or exceed all Federal, State, and Local code requirements.
- Page 3 OPERATION Normal Mode A.C. power is present. The A.C. Driver operates the LED Module as intended. The ILB CP18 HE CW LP64 is in the standby ILB CP CW 1LA charging mode. The IPS will be lit providing a visual indication that the battery is being charged.
- Page 4 Pressing the IPS turns off the light on the IPS and forces the unit into emergency mode, interrupting power to the desig- nated A.C. driver. The LED load is now being lit by the ILB CP18 HE CW LP64 unit. After releasing the IPS, the fixture returns to normal operation after a momentary delay.
- Page 5 The purpose of this addendum is to sufficiently identify electrical compatibility and predictable emergency light output of the LED luminaire when used with the IOTA ILB-CP Series LED emergency drivers. Verification of these operating traits does not constitute a code-compliant, as-installed emergency egress system. It is still the responsibility of the Designer/ Specifier to assure appropriate light levels are achieved during emergency operation of the luminaire in accordance with Federal, state and local municipal codes regarding path of egress illumination.
