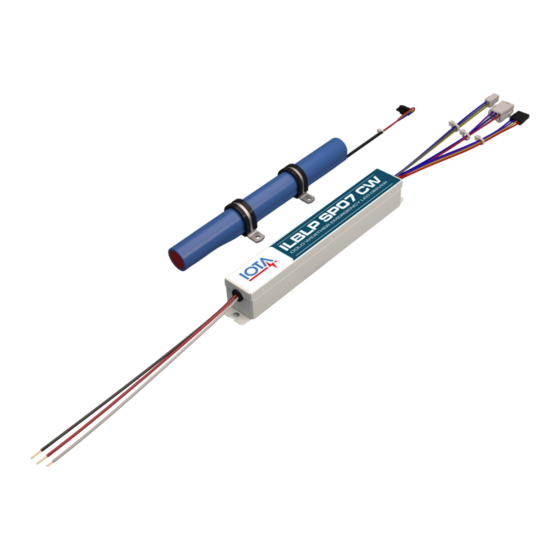

IOTA ILBLP SP HE SD LC CW Instruction Manual

Cold weather emergency lighting equipment for led
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
(800) 866-4682 • www.iotaengineering.com
INSTRUCTION MANUAL
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
CAUTION – The IPS Test Button Component serves as the unit connector. The ILBLP SP HE SD LC CW will
initiate once the IPS and unit installation is complete and A.C. power is supplied to the unit.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
2.
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by discon-
necting the IPS Test Button Component before servicing.
CAUTION – this equipment provides reduced current levels when higher voltage loads are connected. Load
3.
calibration is required to ensure proper operation (see page 4).
4.
CAUTION – This is a sealed unit. Components are not replaceable. Replace the entire unit when necessary.
CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before
5.
opening.
6.
CAUTION – For factory installation only. A suitable enclosure shall be provided for the Emergency LED Driver
and battery.
The ILBLP SP HE SD LC CW is for use with grounded LED luminaires listed to UL standards. Not for use in
7.
heated air outlets or hazardous locations.
8.
The ILBLP SP HE SD LC CW and A.C. driver must be on the same branch circuit.
9.
Do not mount near gas or electric heaters.
10.
The ILBLP SP HE SD LC CW should be mounted in locations and at heights where it will not readily be
subjected to tampering by unauthorized personnel.
11.
This is a Class 2 unit. Product output voltage varies according to wattage. Refer to Illustration 1 for output
voltage ratings.
12.
The ILBLP SP HE SD LC CW is certified in the CA Title 20 Modernized Appliance Efficiency Database System
(MAEDBS) as a small battery charger.
13.
Suitable for use in damp locations.
14.
For use in -20° C minimum, 55° C maximum ambient temperatures.
15.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void
warranty, and result in non-compliance with UL specifications.
16.
Do not use this equipment for other than intended use.
17.
Install in accordance with the National Electrical Code and local regulations.
18.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility before
final installation. See addendum for compatibility and covered luminaire requirements.
LED CLASS 2
ILBLP SP HE SD LC CW
SAVE THESE INSTRUCTIONS
HIGH EFFICIENCY PERFORMANCE
MEETS CA T20 BATTERY CHARGER
EFFICIENCY STANDARDS
"LC" MOUNTING STYLE
COLD WEATHER
EMERGENCY LIGHTING EQUIPMENT
FOR LED

Advertisement

Table of Contents
loading

Related Manuals for IOTA ILBLP SP HE SD LC CW

Summary of Contents for IOTA ILBLP SP HE SD LC CW

  • Page 1 CAUTION – For factory installation only. A suitable enclosure shall be provided for the Emergency LED Driver and battery. The ILBLP SP HE SD LC CW is for use with grounded LED luminaires listed to UL standards. Not for use in heated air outlets or hazardous locations.

  • Page 2: Installation Instructions

    Refer to the appropriate wiring diagram below. Make sure all connections are in accordance with NEC and any other local requirements. The ILBLP SP HE SD LC CW is designed to interface with Class 2 LED Loads. See Illustration 1 for output voltage ratings.

  • Page 3: Completing Installation

    Normal Mode A.C. power is present. The A.C. Driver operates the LED Module as intended. The ILBLP SP HE SD LC CW is in the standby charging mode. The IPS will be lit providing a visual indication that the battery is being charged.

  • Page 4: Testing And Maintenance

    Any failures detected during Load Calibration will be indicated on the IPS (see Table A). Maintenance When performing maintenance on the ILBLP SP HE SD LC CW or the emergency luminaire, the ILBLP SP HE SD LC CW bat- tery circuit must be completely powered down by performing the following steps: 1) Disconnect AC power.

  • Page 5: Manuel D'instructions

    Ne pas installer à proximité d’appareils de chauffage au gaz ou électriques. L’ILBLP SP HE SD LC CW doit être installé à des endroits et à des hauteurs où il ne sera pas facilement altéré par du person- nel non autorisé.

  • Page 6: Instructions D'installation

    Reportez-vous au diagramme de câblage approprié ci-dessous. Assurez-vous que toutes les connexions sont faites conformément aux exigences du NEC et aux exigences locales. L’ILBLP SP HE SD LC CW est conçu pour s’interfacer avec des charges LED (classe 2). Voir l’illustration 1 pour les tensions nominales de sortie.

  • Page 7: Terminer L'installation

    Le module DEL est allumé et la sortie est réduite pendant un minimum de 90 minutes. Lorsque l’alimen- tation secteur se rétablit, l’ILBLP SP HE SD LC CW bascule de nouveau en mode normal et le chargement de la batterie reprend.

  • Page 8: Entretien

    Toute défaillance détectée pendant l’étalonnage de la charge sera indiquée sur le IPS (voir Tableau A). Entretien Lorsque vous effectuez un entretien sur le ILBLP SP HE SD LC CW ou le luminaire d’urgence, le circuit de batterie ILBLP SP HE SD LC CW doit être complètement mis hors tension en suivant les étapes suivantes: 1) Débranchez l’alimentation c.a.l‘ILBLP SP HE SD LC CW passe en MODE D’URGENCE.
