Uplift Desk MON001 Quick Start Manual

Zilker single monitor arm

Advertisement

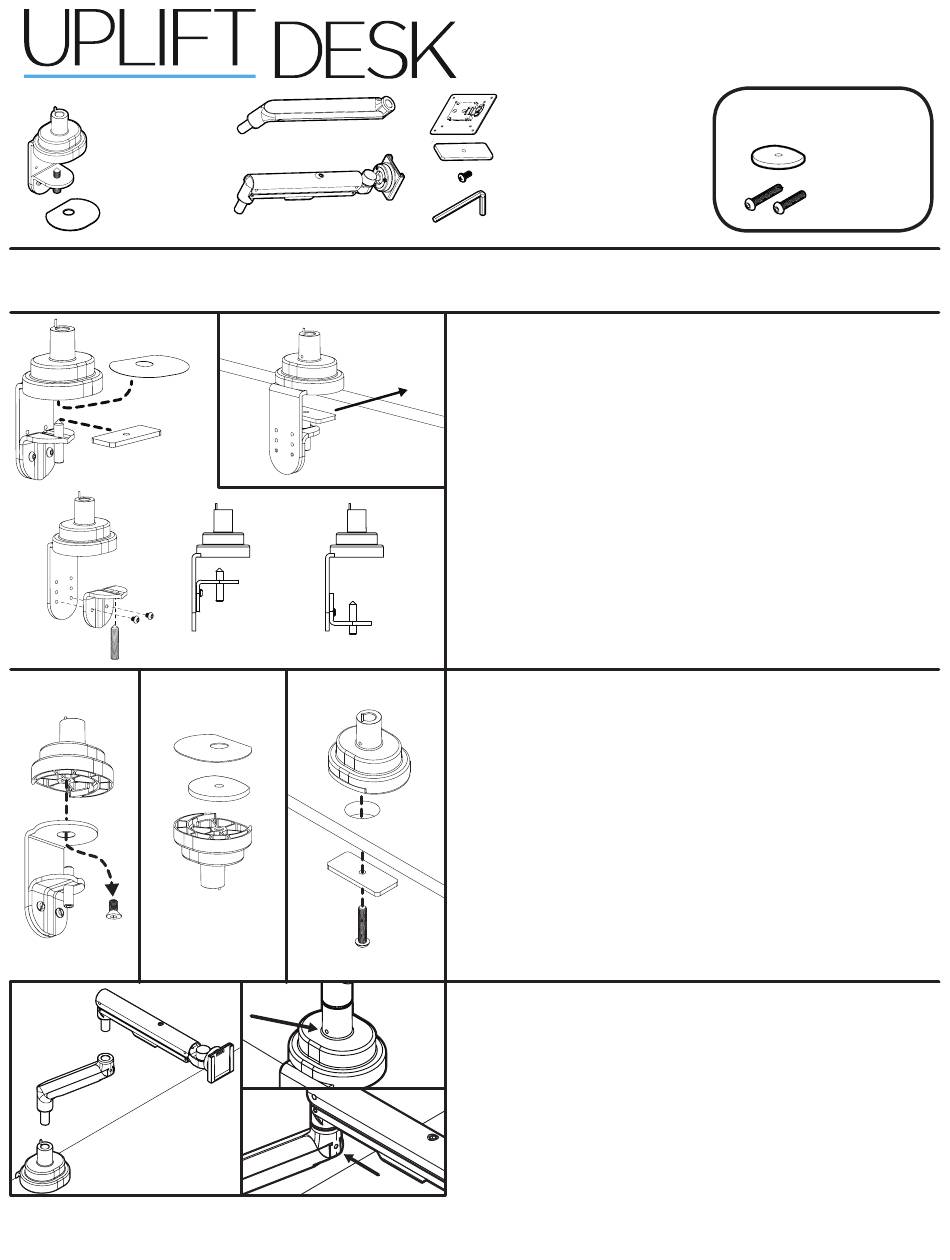

Package Contents

Base
Base Cushion
Note: There are two ways to attach this monitor arm to your desktop: Clamp and Bolt-thru assembly. Determine if you need
to attach it around the back side of your desk (follow Step 1.1) or through a hole from .4'' to 3.15'' in diameter (follow Step 1.2).
fig. 1
*
© UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
Extension Arm
Spring arm
min. desk
max desk
thickness
thickness
.75''
3.75''
fig. 2
fig. 3
®
Zilker Single Monitor Arm
MON001
Vesa mount
Bottom plate
Monitor screw
(qty 4)
Allen wrenches
(set of six:
1.5mm, 2.5mm, 4mm, 5mm, 6mm, 6.5mm)

Step 1.1 - Clamp

Peel the adhesive and attach the Base cushion to the underside of
the Base, and rest the Bottom plate onto the Base's bolt. Fit the
Base around the back of the desk and tighten the Clamp-bolt &
Bottom plate into place using the 6.5mm Allen wrench.
Note:
If the Clamp does not fit on your desk, increase or decrease the
span of the clamp by removing the Bottom clamp and Bolt, and
repositioning them. First, unscrew the two screws holding the
Bottom clamp with the 4mm Allen wrench (see fig. 1).
For thin desks (.75'' minimum) reassemble the clamp as shown
in Figure 2. For the thick desks (3.75'' maximum) reassemble the
clamp as shown in Figure 3.
Once the Clamp has been set and fits your desktop, continue on
to Step 2 below.

Step 1.2 - Bolt-thru

To mount your monitor arm through a hole in your desktop (min
.4'', max 3.15'' in diameter) first loosen the big screw inside the
clamp with the 6mm Allen wrench. Note: screw may be tight.
Once removed, separate the clamp assembly from the Base.
Line up the Base plate inside the Base. Remove the adhesive on
the Base cushion and apply across both parts, ensuring it is ad-
hered properly.
Cover the hole with the assembly, with the logo facing the front
of desk. Select a Long bolt. The 50mm Bolt fits desks .6'' to 1.38''
thick. The 70mm Bolt fits desks 1.38'' to 2.13'' thick. Insert the Long
bolt thru the Bottom plate. Note: Bottom Plate must be wide
enough to straddle the hole's diameter. Thread the bolt into the
Base assembly by hand and tighten using the 6mm Allen wrench.

Step 2

Insert the Extension arm into the Base. *Note: The stopping-pin
in the Base restricts arm rotation to 180°. If you want a full 360°
rotation, remove this pin with the 1.5mm Allen wrench.
Insert the Spring arm into the Extension arm.
To prevent the arms from being lifted out, tighten the set
screws on the back of the Base where the Extension arm joins
it, and on the front of the Extension arm where the Spring arm
joins it with the 2.5mm Allen wrench.
Parts for Bolt-thru assembly
Base Plate
Long bolts
(two sizes included:
50mm & 70mm)
AI-MON001-1.0
