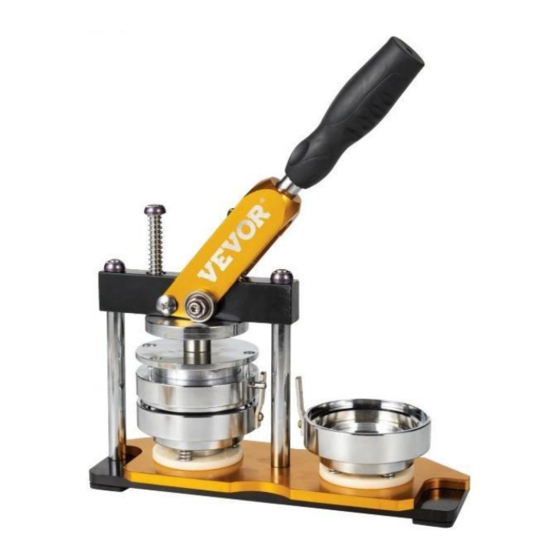

VEVOR
BUTTON MAKER
MACHINE
INSTRUCTION
MANUAL
JS-75-GD-01
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
CustomerService@vevor.com
This is the original instruction. Please read all manual instructions carefully before operating
VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to
the product you received. Please forgive us that we won't inform you again if there are any technology or
software
updates
on
our
product
01
Advertisement
Related Manuals for VEVOR JS-75-GD-01
Summary of Contents for VEVOR JS-75-GD-01
- Page 1 This is the original instruction. Please read all manual instructions carefully before operating VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or...
- Page 2 SAFETY REMINDER 1. This badge machine is only applied for the intended purpose. Don't apply in other applications which exceed safety considerations. 2. Children cannot operate this product unless accompanied by an adult. 3.Pay attention to safety during operation, and avoid crushing fingers. COMPONENTS Connector, Flexible...
- Page 3 1. Tin Up Cover 2.Plastic Back Plate 3.White Paper (The paper thickness needs to be in the range of 127g-159g, and the paper diameter should be the same as the transparent film diameter) Transparent Film 5.Metal Back Plate 6 Plastic Washer required when...
- Page 4 MANUFACTURE PROCESS 2.Put "Tin up cover"--"Paper" 1.Revolve and twist handle in 3. Use one hand to hold the (pattern levelly placed)-- machine body first then stable the machine body by the handle “Transparent plastic film”into the right mold in sequence, then another hand press the machine anticlockwise revolve the down handle till down press to be...
- Page 5 FAILURE AND TROUBLESHOOTING Failure Appearance Troubleshooting Possible Reasons 1.First time downward press up mold hinge is in a separate state 1. Unsuitable operating method 2. Use clean cloth or tissue completely First time downward press iron cover 2. Too much lubricating oil in the wipe it if found too much lubricating and not absorbed to up mold mold...
- Page 6 MODEL AND PARAMETER Product Mode JS-75-GD-01 Model Manufactured Badge φ75 Specification Machine Body Color Gold 127-157g Paper Requirements Copper Plate Paper Accessories With 1. φ75 Iron Bottom Back Plate *50 Pieces Machine 2. φ75 Plastic Bottom Back Plate* 50 Pieces 3.
