Kremlin-Rexson M22 G Adjustment Manual

Pneumatic manual spray gun

Hide thumbs Also See for M22 G:

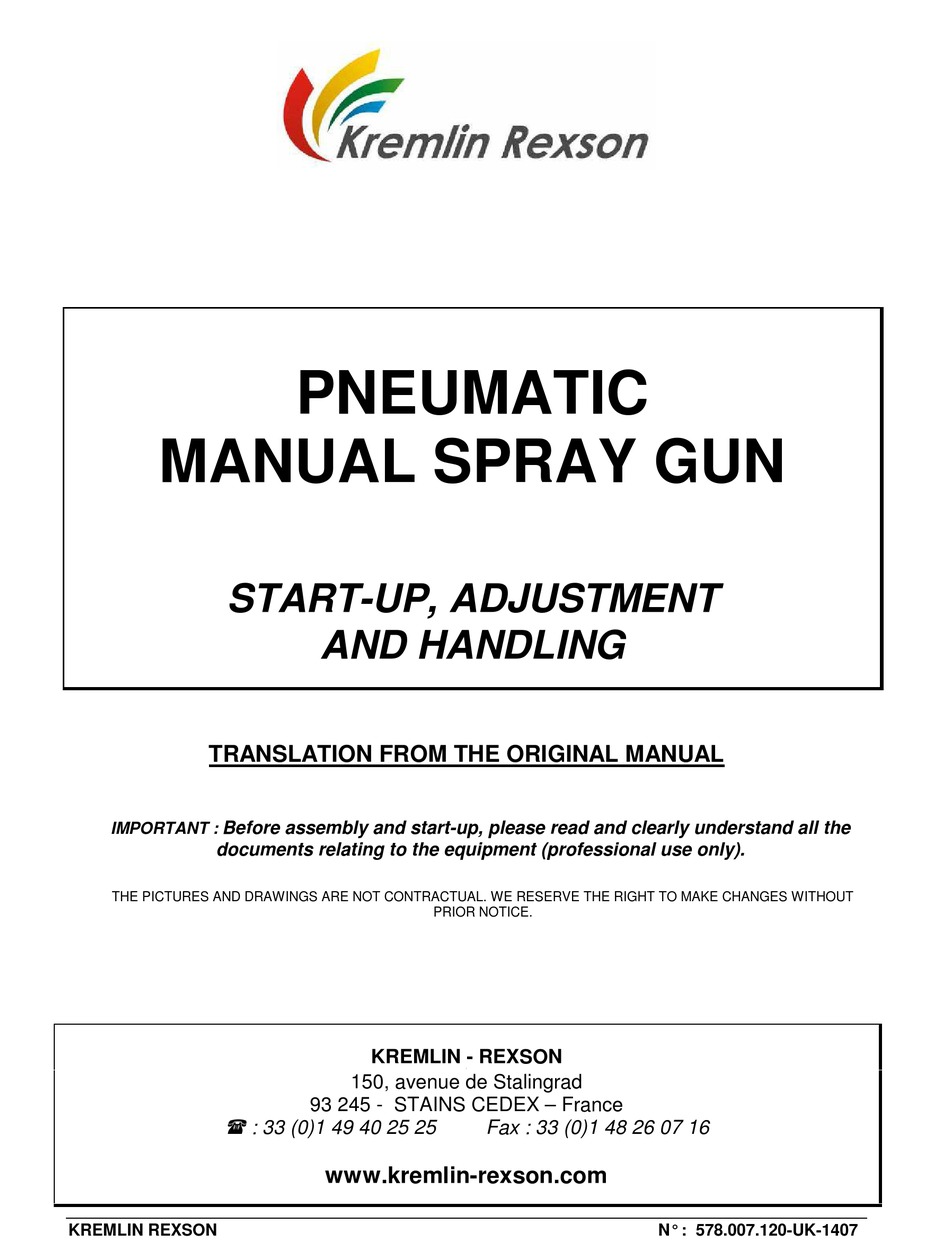

PNEUMATIC

MANUAL SPRAY GUN

START-UP, ADJUSTMENT

AND HANDLING

TRANSLATION FROM THE ORIGINAL MANUAL

Before assembly and start-up, please read and clearly understand all the

IMPORTANT :

documents relating to the equipment (professional use only).

THE PICTURES AND DRAWINGS ARE NOT CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT

PRIOR NOTICE.

KREMLIN - REXSON

150, avenue de Stalingrad

93 245 - STAINS CEDEX – France

 : 33 (0)1 49 40 25 25

Fax : 33 (0)1 48 26 07 16

www.kremlin-rexson.com

KREMLIN REXSON

N° : 578.007.120-UK-1407

Table of Contents

Need help?

Do you have a question about the M22 G and is the answer not in the manual?

Page 1 THE PICTURES AND DRAWINGS ARE NOT CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX – France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.007.120-UK-1407...
Page 2 START-UP Safety instructions :  Never try to stop the spray fan with any part of the body (hands, fingers…) or with rags. Never point the spray gun at anyone or at any part of the body.  The operator will need medical attention if the high pressure material spray is in contact with the the body (eyes, fingers…).
Page 3 GUN HANDLING When mounting the aircap on the gun, hold it vertically in order to correctly adjust the aircap before screwing the aircap ring. Keep the gun perpendicular to the surface to be painted. Avoid working with the wrist. Improper position Proper position Do not forget that crossed sweeps cannot correct irregularities.
