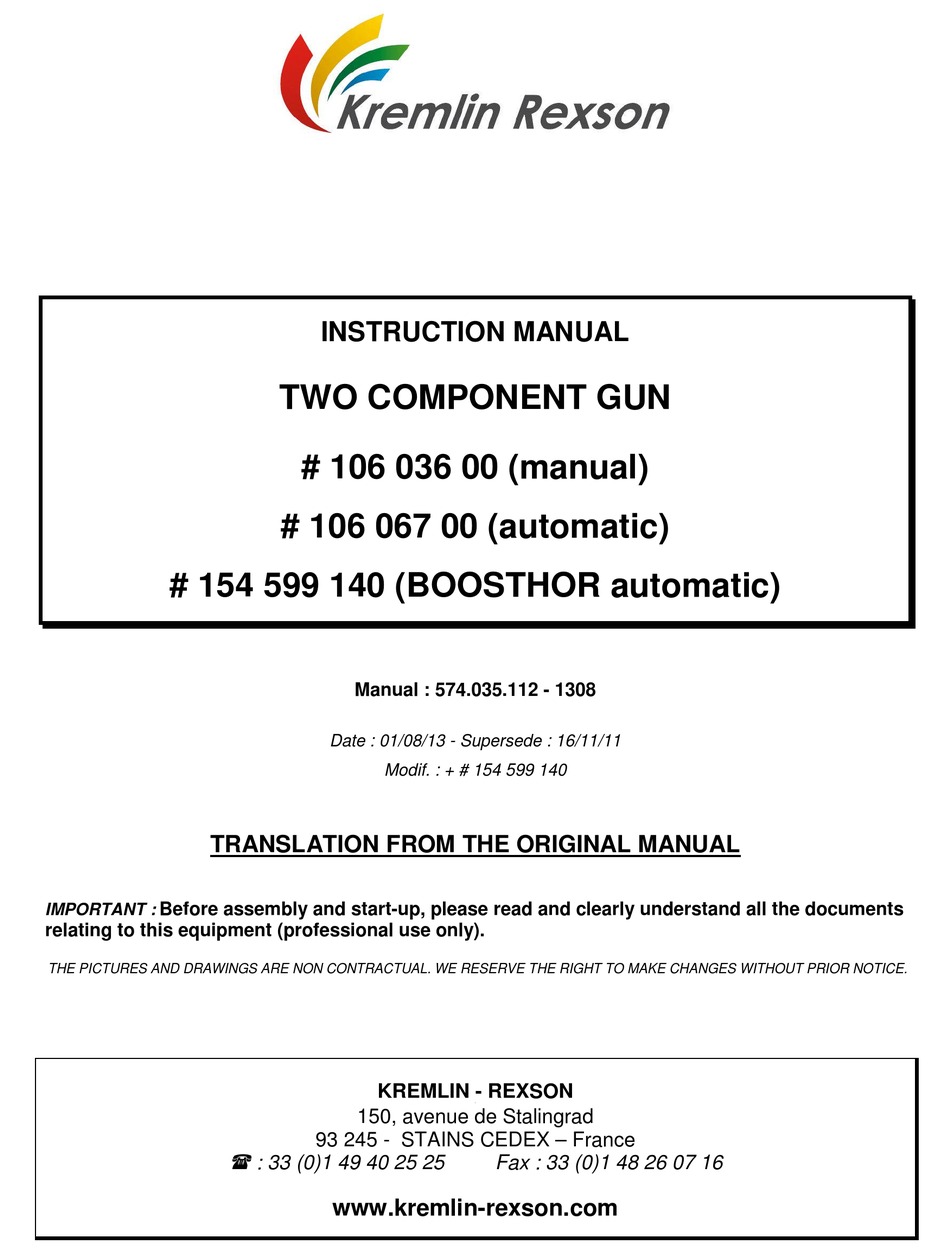

INSTRUCTION MANUAL
TWO COMPONENT GUN
# 106 036 00 (manual)
# 106 067 00 (automatic)
# 154 599 140 (BOOSTHOR automatic)
Manual : 574.035.112 - 1308
Date : 01/08/13 - Supersede : 16/11/11
Modif. : + # 154 599 140
TRANSLATION FROM THE ORIGINAL MANUAL
Before assembly and start-up, please read and clearly understand all the documents
IMPORTANT :
relating to this equipment (professional use only).
THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE.
KREMLIN - REXSON
l
150, avenue de Stalingrad
93 245 - STAINS CEDEX – France
: 33 (0)1 49 40 25 25
Fax : 33 (0)1 48 26 07 16
www.kremlin-rexson.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kremlin-Rexson 106 036 00
Summary of Contents for Kremlin-Rexson 106 036 00
- Page 1 INSTRUCTION MANUAL TWO COMPONENT GUN # 106 036 00 (manual) # 106 067 00 (automatic) # 154 599 140 (BOOSTHOR automatic) Manual : 574.035.112 - 1308 Date : 01/08/13 - Supersede : 16/11/11 Modif. : + # 154 599 140...
-
Page 2: Table Of Contents
INSTRUCTION MANUAL TWO COMPONENT GUN TABLE OF CONTENTS 01. WARRANTY ................................2 02. SAFETY INSTRUCTIONS............................2 03. EXPLODED VIEW & SPARE PARTS’ LIST......................5 04. MAINTENANCE ..............................9 05. DISASSEMBLY..............................9 06. GUN ASSEMBLY..............................10 Dear Customer, You are the owner of our new equipment and we would like to take this opportunity to thank you. To make sure your investment will provide full satisfaction, special care has been taken by KREMLIN REXSON during all designing and manufacturing processes. -
Page 3: Warranty
01. WARRANTY We reserve the right to make changes; these changes may be carried out after the receipt of the order. No claim will be accepted as a consequence of any change carried out in the instruction manuals or in the selection guides. - Page 4 PICTOGRAMS Nip hazard Warning moving Warning moving Warning moving Do not exceed High pressure elevator parts shovel this pressure hazard Relief or drain Warning hose Wear of glasses Wear of gloves is Product vapor Warning hot parts valve under pressure is obligatory obligatory hazard...
- Page 5 CAUTION! It is forbidden to use material containing high concentrations of halogenated hydrocarbon solvents with aluminium or zinc fillers. Non-compliance with the instructions may cause explosion risk causing serious or fatal injury. EQUIPMENT REQUIREMENTS Guards (air motor cover, coupling shields, housings,…) have been designed for a safe use of the equipment.
-
Page 6: Exploded View & Spare Parts' List
03. EXPLODED VIEW & SPARE PARTS’ LIST Pour / For / Für / Para # 154 599 140 Pour / For / Für / Para # 106 036 00 / 106 067 00 Index Instructions Description Reference PTFE grease "TECHNILUB" grease (10 ml) 560.440.101... - Page 7 Désignation Description Bezeichnung Denominación Qté COMMON PARTS 630 491 Pointeau Needle Nadel Aguja NC /NS Joint FKM FKM seal FKM Dichtung Junta FKM 203 012 Rondelle Washer Scheibe Arandela NC /NS Joint Seal Packungsringe Junta 203 011 Ecrou Mutter Tuerca 106 036 05 Noix de réglage Adjustment piece...
- Page 8 DETAIL Désignation Description Bezeichnung Denominación Qté SPECIFIC PARTS # 106 036 00 : MANUAL GUN 106 067 00 Pistolet automatique Automatic gun Automatikpistole Pistola automática 204 410 Tête de mélange Mixer head Mischerkopf Cabezal de mezcla 106 036 08 Tube de test...
- Page 9 Désignation Description Bezeichnung Denominación Qté SPECIFIC PARTS # 154 599 140 : BOOSTHOR AUTOMATIC GUN 209 381 Tête de mélange Mixer head Mischerkopf Cabezal de mezcla 930 151 598 Vis CHc M 6x60 Screw, Schraube, M 6x60 Tornillo, model M 6x60 tipo M 6x60 054 599 142 Interface poignée/corps Handle/body interface Verbindungsstück...
-
Page 10: Maintenance
Disassemble the 2 flanges (7). Take off the 2 heads (24). NOTA : For the versions # 106 036 00 and # 106 067 00, the two heads are fitted with fittings. Do not install other fitting to prevent from damaging the needle. -
Page 11: Gun Assembly
B. DISASSEMBLY OF THE PNEUMATIC PART Take off the screws (11) by means of the 6 mm / 0.23" wrench. Remove the cover (13), then the seal (15), the spring (14) and the seal (20), change if necessary. ... - Page 12 For the assembly of the BOOSTHOR mixing head (37) and its use : The kit enables you to calibrate the BOOSTHOR machine (For more informations, please refer to Doc. 578.196.110). Remove the static mixer (39) and remove the center injection cata nozzle/tube (1) located at the front material outlet of the gun.
