Remote Controller Specifications
Model: R71A/E
Rated Voltage: 3.0V
Lowest Voltage of CPU Emitting Signal: 2.0V
Reaching Distance: 8m (when using 3.0 voltage, it Gets 11m)
Environment Temperature Range: -5°C ~ 60°C
Performance Features
1. Operating Mode: COOL HEAT DRY FAN only and AUTO .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. LCD (Liquid Crystal Display) of functions.
Introduction of Function

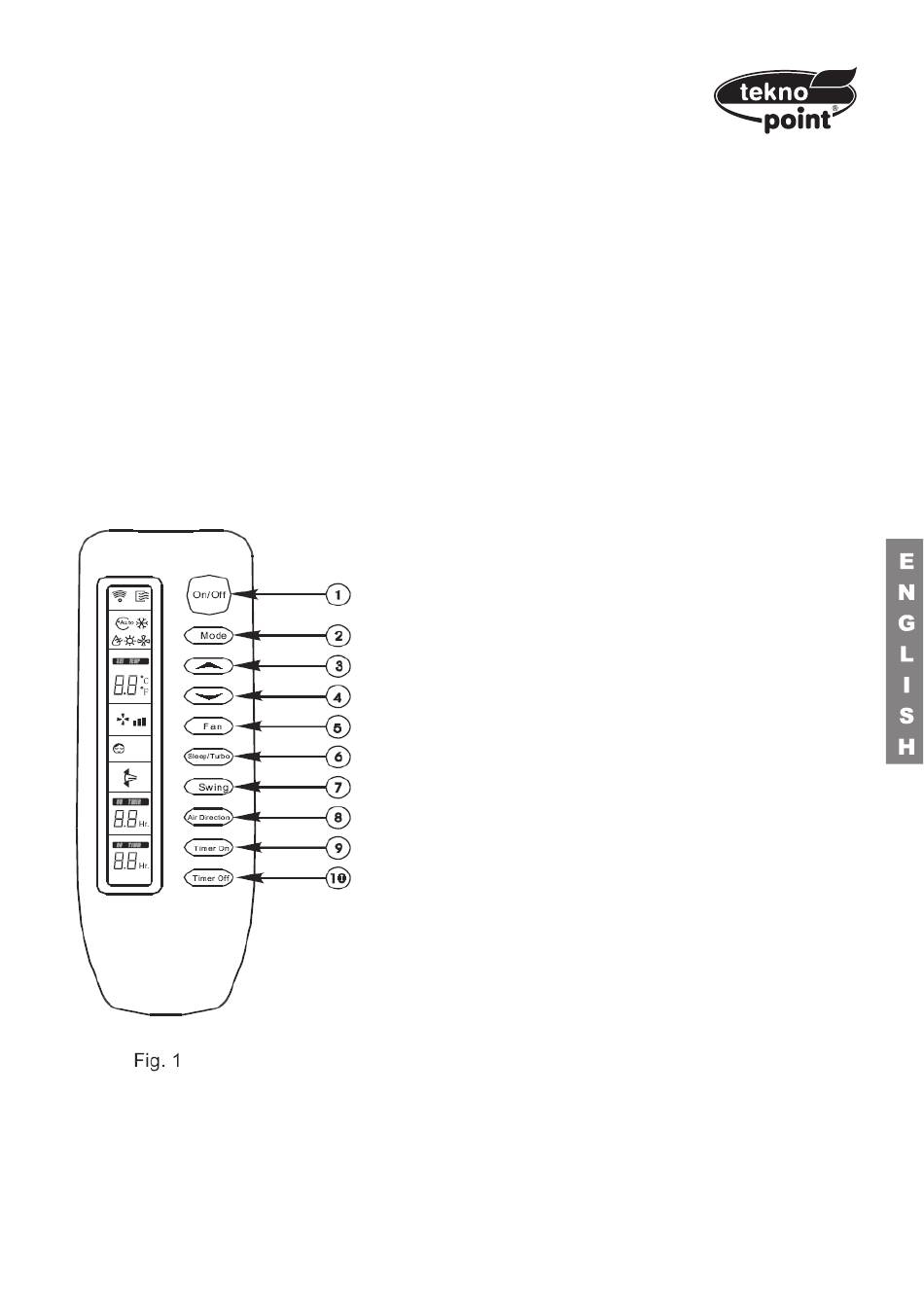

Buttons on the Remote
Controller
1 - On/off Button: Push this button to start the unit operation. Push
the button again to stop the unit operation.
2 - Mode Button: Each time you press the button, a mode is selected
in a sequence that goes from AUTO COOL DRY HEAT and FAN
only as the following figure indicates:
AUTO - COOL - DRY - HEAT - FAN - AUTO
NOTE: HEAT only for Heat Pump
3 - Button : Push the button to increase the indoor temperature
setting to 30 .
4 - Button : Push the button to decrease the indoor temperature
setting to 17 .
5 - Fan Button: This button is used for selecting Fan Speed. Each
time you press the button, a fan speed is selected in a sequence that
goes from AUTO LOW MED to HIGH, then back to Auto. When you
select the AUTO or DRY mode, the fan speed will be automatically
controlled and you can not set the fan speed.
6 - Sleep/Turbo Button: Press this button to select SLEEP or
TURBO mode. Each time you press the button, the operation mode is
shifted in the direction of the arrow. When the operation mode is
either DRY or FAN only, this function can not be used.
SLEEP - SLEEP - OFF - TURBO - TURBO - OFF - SLEEP
7 - Swing Button: Press the SWING button to activate the swing
feature. Push the button again to stop.
8 - Air direction Button: Press this button to change the swing o
angle of the louver. The swing angle of the louver is 6 C for each
press. When the louver swing at a certain angle which would affect
the cooling and heating effect of the air conditioner, it would
automatically change the swing direction . No symbol will appear in
the display area when press this button.
9 - Timer on Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10Hr, each press
will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, continue pressing the button until
nothing displays.
10 - Timer off Button: Press this button to initiate the auto-off time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10Hr, each press
will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, continue pressing the button
until nothing displays.
