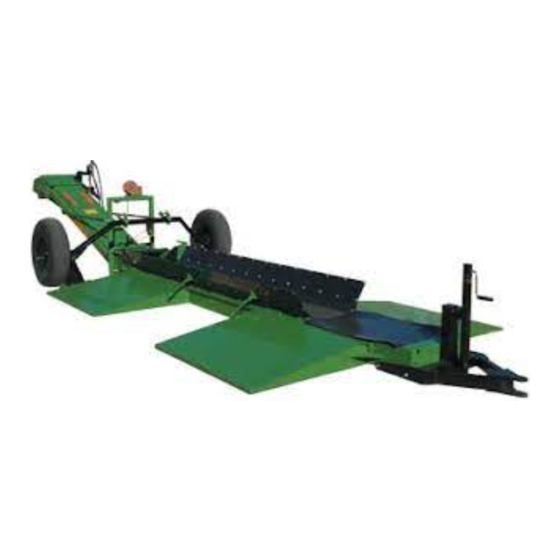

Drive Over- Pit
Belt Accelerator
&
Multi-Purpose Belt Loader
OWNER'S MANUAL
00028100 (08/08)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speed King Drive Over- Pit and is the answer not in the manual?

Questions and answers

Related Manuals for CrustBuster Speed King Drive Over- Pit

Summary of Contents for CrustBuster Speed King Drive Over- Pit

  • Page 1 ™ Drive Over- Pit Belt Accelerator & Multi-Purpose Belt Loader OWNER'S MANUAL 00028100 (08/08)

  • Page 2: Table Of Contents

    F.O.B. our works, provided the consumer gives CrustBuster/Speed King,Inc. written notice within ten (10) days after said part appears to be defective and affords CrustBuster/Speed King,Inc. an opportunity to inspect. Unless otherwise expressly agreed to by CrustBuster/Speed King,Inc., the consumer shall bear the expense of installation.

  • Page 3: Safety

    Introduction Read this manual carefully. It will instruct you on how to operate and service your machine safely and correctly. Failure to do so could result in personal injury and/or equipment damage. Warnings ™ 1. DO NOT service Drive Over-Pit before stopping all motors and locking out power source.
  • Page 4 Owner's and User's Statement of Responsibility ™ Drive Over-Pit Belt Accelerator & Multi-Purpose Belt Loader I have had explained to me and accept responsibility for the following: ™ I understand this Drive Over-Pit conveyor is a heavy, powerful, and bulky unit of equipment capable of causing injury or death when used improperly.

  • Page 5: Lubrication And Maintenance

    Lubrication and Maintenance CAUTION: STOP ALL MOTORS AND LOCK OUT POWER SOURCE BEFORE SERVICING CONVEYOR. CAUTION: IF GUARDS OR SHIELDS ARE REMOVED TO SERVICE UNIT, REPLACE IMMEDIATELY AFTER COMPLETION OF WORK. IMPORTANT: THE LUBRICATION PERIODS RECOMMENDED ARE BASED ON NORMAL USAGE. SEVERE OR UNUSUAL CONDITIONS REQUIRE...

  • Page 6: Dimensional Drawings

    ™ Drive Over-Pit Belt Accelerator -16" Dimensional Drawing...
  • Page 7 ™ Drive Over-Pit Multi-Purpose Belt Loader - 16" Dimensional Drawing...
  • Page 8 ™ Drive Over-Pit Multi-Purpose Belt Loader - 24" Dimensional Drawing...

  • Page 9: Belt Wrap Diagram & Replacement Belts

    ™ Drive Over-Pit Belt Wrap Diagram...

  • Page 10: Cable Wrap Diagram

    Drive Over-Pit™ Cable Wrap Diagram Drive Over-Pit™ Guard Bracket Locations Electric Drive...

  • Page 12: Repair Parts

    ™ Drive Over-Pit Ramp Repair Parts - 16"...
  • Page 13 ™ Drive Over-Pit Ramp Repair Parts - 16" Item Qty Part No. Description Item Qty Part No. Description 530733 Jack 2000# Side Crank 807313 Tire & Wheel Assembly 81557100 Hitch Weldment Includes: 81634800 Take-up Bolt 530154 Tire 9.5L x 15-6 Ply 332189 Square Nut 3/8"...
  • Page 14 ™ Drive Over-Pit Ramp Repair Parts - 24"...
  • Page 15 ™ Drive Over-Pit Ramp Repair Parts - 24" Item Qty Part No. Description Item Qty Part No. Description 530733 Jack 2000# Side Crank 807313 Tire & Wheel Assembly 82571100 Hitch Weldment Includes: 80661200 Take-up Bolt 530154 Tire 9.5L x 15-6 Ply 332197 Square Nut ½"...
  • Page 16 ™ Drive Over-Pit Belt Accelerator Repair Parts -16" Hydraulic Drive...
  • Page 17 ™ Drive Over-Pit Belt Accelerator Repair Parts -16" Hydraulic Drive Item Qty Part No. Description Item Qty Part No. Description 81649600 Frame Weldment 2 14706600 Drive Guard (4 7/8") 15698400 Skirtboard Brace RH 2 16974800 Drive Guard (6 ½") 15581200 Slide Pan 2 14705800 Drive Guard Side Plt (4 7/8") 81339400 Roller 3 1/2"...
  • Page 18 ™ Drive Over-Pit Belt Accelerator Repair Parts -16" Electric Drive...
  • Page 19 ™ Drive Over-Pit Belt Accelerator Repair Parts -16" Electric Drive Item Qty Part No. Description Item Qty Part No. Description 81649600 Frame Weldment 15108400 Chain Guard Back Plate 15698400 Skirtboard Brace RH 15103500 Chain Guard Side 15581200 Slide Pan 61813200 Chain Guard Assembly 81339400 Roller 3 1/2"...
  • Page 20 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts-16" Hydraulic Drive...
  • Page 21 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts-16" Hydraulic Drive Item Qty Part No. Description Item Qty Part No. Description 81649600 S-Wrap Frame 81562100 Lagged Roller 6" 15571300 Back-up Strap 15662000 Head Frame 15570500 Skirtboard 81563900 Spout Weldment 15565500 S-wrap Seal RH 14706600 Drive Guard (4 7/8") 15569700 S-wrap Skirtboard 16974800 Drive Guard (6 ½")
  • Page 22 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts-24" Hydraulic Drive...
  • Page 23 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts-24" Hydraulic Drive Item Qty Part No. Description Item Qty Part No. Description 82577800 S-Wrap Frame 82574500 Spout 15571300 Back Up Strap 16974800 Drive Guard 15570500 Skirtboard 20702700 Drive Guard Side 15565500 S-Wrap Seal RH 03129400 Hydraulic Motor H-101-1002 15569700 S-Wrap Skirtboard 00409300 Seal Kit...
  • Page 24 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts-16" Electric Drive...
  • Page 25 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts-16" Electric Drive Item Qty Part No. Description Item Qty Part No. Description 81684300 Truss Bar Weldment 81649600 S-Wrap Frame 15560600 Pan Cover 8' 83075200 S-Wrap Fame -25E Incline 31488000 Pan Cover 7½' 15571300 Back-up Strap -25E Incline...
  • Page 26 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts-24" Electric Drive...
  • Page 27 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts-24" Electric Drive Item Qty Part No. Description Item Qty Part No. Description 82577800 S-Wrap Frame 81684300 Truss Bar 83064600 S-Wrap Frame -25E Incline 20681300 Pan Cover 8' 15571300 Back Up Strap 31351000 Pan Cover 10' -25E Incline 15570500 Skirtboard 60195500 Roller Assembly 2 3/8"...

  • Page 28: Assembly Instructions

    Assembly Instructions ™ CAUTION: Most component parts of the Drive Over-Pit Belt Accelerator as well as the Multi-Purpose Belt Loader are heavy. Use a safe lifting device when unloading and during the assembly process. Pre-Assembly Notes: Fasteners may vibrate loose during shipping. It is recommended you check nuts, bolts, set screws, and sheave alignment on pre-assembled parts prior to start-up.
  • Page 29 Assembly Instructions Belt Accelerator - Electric Drive Refer to belt guard bracket locations on page 7. Using the two spacers D, 5/16" X 1½" carriage bolts, lock washers, and hex nuts, assemble chain guard C to head frame side A as shown. Attach nylon idler E to chain guard C on head frame A as shown using a ½"...
  • Page 30 Assembly Instructions Multi-Purpose Belt Loader - Electric Drive Figure #4 Refer to guard bracket locations on page 7. Attach belt guard bracket B to head frame A as shown using 3/8" x 1" carriage bolts, flat washers, lock washers, and hex nuts. Bolt brackets C to head frame using 5/16"...
