P.O. Box 526 - Spearville, Kansas 67876 - (620) 227-7106
crustbuster.com

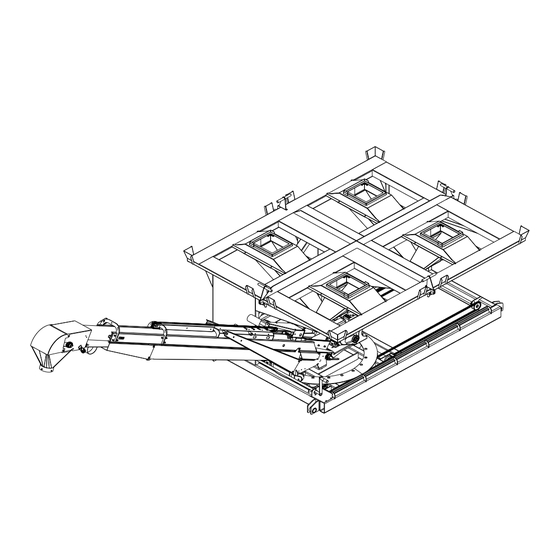

Seed Tote 4 Box
#17930900 (2018) Updated 04/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speed King Seed Tote 4 Box and is the answer not in the manual?

Questions and answers

Related Manuals for CrustBuster Speed King Seed Tote 4 Box

Summary of Contents for CrustBuster Speed King Seed Tote 4 Box

  • Page 1 P.O. Box 526 - Spearville, Kansas 67876 - (620) 227-7106 crustbuster.com Seed Tote 4 Box #17930900 (2018) Updated 04/21...

  • Page 3: Table Of Contents

    Table of Contents Warranty Information ....1 Repair Parts Operator Qualifications ... . . 2 Seed Tote 4 Box ... 17-20 Safety and Warnings .

  • Page 4: Warranty Information

    WARRANTY: In addition to the implied warranties of fitness and of merchantability, CrustBuster®/Speed King, Inc. warrants new products sold by it to be free from defects in workmanship and material for a period of 12 months, from the date of delivery to the first user customer.

  • Page 5: Operator Qualifications

    Operator Qualifications Operation of this Seed Tote shall be limited to competent and experienced persons. In addition, anyone who will operate or work around this equipment must use good common sense. In order to be qualified, he or she must also know and meet all other requirements, such as: Some regulations specify that no one under the age of 16 may operate power machinery.

  • Page 6: Safety And Warnings

    BE ALERT! Your Safety is involved. General Safety Statement WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT SAFETY PRECAUTIONS. IT MEANS "ATTENTION BECOME ALERT!" YOUR SAFETY IS INVOLVED. It is your responsibility as an owner, operator, or supervisor to know and instruct everyone using this Seed Tote at the time of initial assignment and at least annually thereafter, of the proper operation, precautions, and work hazards which exist in the operation of this Seed Tote in accordance with OSHA Regulations.
  • Page 7 CAUTION 1. Read and understand instruction manual before operating. 2. Keep all safety shields and devices in place. 3. Make certain everyone is clear before operating machine. 4. Keep hands, feet, and clothing away from moving parts. 5. Shut off power to adjust, service, or clean. 6.
  • Page 8 Operation Cautions Operation Remote Belt On Belt Off Gate Close Gate Open Telescope In Telescope Out Rotate Rear Rotate Foward Shuttle Rear Shuttle Foward Step 1: Make sure conveyor has all transport locks removed. Step 2: Rotate conveyor rearward until conveyor clears stand corner. Step 3: Move shuttle rearward until conveyor is lined up with rear spout.
  • Page 9 Safety Decals REMEMBER: If Safety signs have been damaged, removed, become illegible or parts replaced without decals, new decals must be applied. New decals are available from your authorized distributor or factory. Individual decals shown below. #05326400 #05303300 #05312400 #05328000 #05316500 #05310800...
  • Page 10 Safety Decals Cont’d #05310800 #05325600 #05315700...
  • Page 11 Danger BE ALERT! YOUR PERSONAL SAFETY IS INVOLVED. ALWAYS PARK TENDER ON LEVEL SURFACE TO UNLOAD. Before releasing safety strap that secures tube assembly, make sure tender is sitting on a level surface. If parked on an unlevel surface, and the tube assembly is not restrained, it could swing rapidly and out of control to one side or the other.
  • Page 12 Danger If parked on an unlevel surface with the spout side up, (See illustration B) the tube will rapidly swing to one end or the other depending on which side the gravity pulls it. This could be very hazardous for anyone standing in its path. Be very cautious of situation.
  • Page 13 CAUTION FUEL VALVE When engine is not in use, leave the fuel valve lever in the OFF position to prevent - carburetor flooding - fuel in the oil crank case because of transporting vibrations - the possibility of fuel leakage. See engine owner’s manual to help you avoid other damage to your engine.
  • Page 14 After extended use, the belt may stretch to the point that there is not sufficient take-up in the head assembly to tighten it. Obtain additional take-up by cutting a 6" to 8" section from the belt. A new splice lacing may be ordered from your CrustBuster/Speed King distributor or from the factory. PERIODIC CLEAN-OUT ………...
  • Page 15 4 Box Dimensions...
  • Page 16 Operation Prior to the start-up, check to see that belt is free from any objects that would bind or tear. On starting for the first time, with no load on belt, apply power for a few seconds only to see that the belt is well centered in the tube and on the return.
  • Page 17 Belt Assembly BELT TIGHTENING INSTRUCTIONS Belt should be tightened before you train the belt. Tightening the belt is done on the head roller by tightening the take up bars evenly. Belt is tight when applying 25 lbs. of force, centered between the return rollers, there is no more than 2 inches of deflection.
  • Page 18 Assembly CAUTION ALWAYS LIFT THE CONTAINER FROM THE BOTTOM. NEVER USE STRAPS OR LIFT BY TYING ANYTHING TO THE SIDES OF THE CONTAINER. REQUIRES MINIMUM 3000 LB. FORKLIFT TO PICK UP FULL CONTAINER. OAK INSERTS, LOCATED IN THE BASE OF THE CONTAINER, REDUCE LIPPAGE ON FORKLIFT FORKS AND PROVIDE STRUCTURAL SUPPORT.
  • Page 19 Seed Box Loading TO LOAD SEED BOXES, THE TOTE SHOULD BE ON LEVEL GROUND OR SURFACE AS SHOWN. IF IT IS NOT POSSIBLE TO LOAD ON A LEVEL SURFACE, LOAD DOWN HILL CONTAINER FIRST, SHOWN. THIS IS THE RIGHT WAY! IF YOU LOAD THE UP HILL BOX FIRST, IT WILL BE VERY DIFFICULT...

  • Page 20: Seed Tote 4 Box

    Seed Tote 4 Box...
  • Page 21 Seed Tote 4 Box #90926700 4 Box Seed Tote Item Qty Part No. Description Item Qty Part No. Description 82947300 Stand 02692200 Flat Washer #10 63185300 Conveyor Carriage 01166800 Hex Nut #8-32 63186100 Telescoping Conveyor 02440600 HHCS .313 x 2.25 04396800 Actuator 04429700 Cable Hose Carrier Flex 04398400 Actuator Bracket W/Pin...
  • Page 22 Seed Tote 4 Box...
  • Page 23 Seed Tote 4 Box #90928000 4 Box Seed Tote Item Qty Part No. Description Item Qty Part No. Description 82947300 Stand 02692200 Flat Washer #10 63185300 Conveyor Carriage 01166800 Hex Nut #8-32 883835 Telescoping Conveyor 02440600 HHCS .313 x 2.25 04396800 Actuator 04429700 Cable Hose Carrier Flex 04398400 Actuator Bracket W/Pin...

  • Page 24: Telescoping Conveyor

    Seed Tote 4 Box Telescoping Conveyor...
  • Page 25 Seed Tote 4 Box Telescoping Conveyor #63186100 Conveyor Assembly Item Qty Part No. Description Item Qty Part No.Description 62884200 Top Tube 03869500 Retaining Ring 5/8" 82638800 Roller Shaft Self-Locking 62891700 S-wrap Roller 20863700 Guard Bushing 62925300 Support Frame 709501 Chain #40 x ft 01071000 Bolt 5/8"...
  • Page 26 Seed Tote 4 Box Head/Tail - Standard Tube...
  • Page 27 Seed Tote 4 Box Head/Tail - Standard Tube #883835 Conveyor Assembly Item Qty Part No. Description Item Qty Part No.Description 62884200 Top Tube 03869500 Retaining Ring 5/8" 82638800 Roller Shaft Self-Locking 62891700 S-wrap Roller 20863700 Guard Bushing 62925300 Support Frame 709501 Chain #40 x ft 01071000 Bolt 5/8"...
  • Page 28 Seed Tote 4 Box Telescoping Conveyor #62884200 Top Tube Assembly Item Qty Part No. Description 82616400 Upper Tube 961714 Take Up Bar Right 16497400 Take Up Bracket 151753 Bearing Slide Outer 151746 Bearing Slide Inner 961565 Take Up Bar Left 03001500 Bearing 1"...
  • Page 29 Seed Tote 4 Box Telescoping Conveyor #62925300 Support Frame Assembly Item Qty Part No. Description 82657800 Support Frame 20945200 Frame Mount Left 20946000 Frame Mount Right 330654 Bolt 3/8" x 1" 04152500 Decal Patent Number 330837 Nylock 3/8" 20947800 Nylon Roller 03866100 Shoulder Screw 3/8"...

  • Page 30: Carriage Assembly

    Seed Tote 4 Box #63185300 Conveyor Carriage Assembly Item Qty Part No. Description 82948100 Carriage 82949900 Take up 04188900 Roller 334300 Bolt ½" x 3" 331363 Nylock ½" 332262 Jam Nut ½" 30987200 Plate .250 X 10.5 X 27.532 30986400 Plate .250 X 12.02X36.499 01047000 Bolt .313 X 1.00G5 331611 Nut .313 Hex Nylock...

  • Page 31: Engine Assembly

    Seed Tote 4 Box #63046700 Engine Assembly Item Qty Part No.Description 03750400 Engine 5½" HP 82820200 Solenoid Motor Mount 03961000 Solenoid 04123600 Throttle Spring 05316500 Decal -Caution Fuel Off 16612400 Sheave 3½" Cast Iron 03959400 Bolt 1/4"-28 x 1" 01057900 Bolt 1/4" x 3/4" 02016400 Flat Washer 1/4"...

  • Page 32: Remote Assembly

    Remote Assembly...
  • Page 33 Remote Assembly #63394100-Remote Assy Item Qty Part No. Description 03899200 Screw #6-32 X .50 Phil Pan 03893500 Screw M3-5 X 8 Phil 883397 Remote Enclosure 03892700 Relay Allied 04424800 10 Button Remote Kit 03891900 Relay Socket 04312500 Screw #10-32 X .625 03890100 Terminal Block 6 POS 03917200 Wire 12ga Red X Ft 03887700 Terminal Conn Relay...

  • Page 34: Wiring Harness

    Wiring Harness #616821-Harness-Power Lead Item Qty Part No. Description 03904000 Connecotr Plug Freehang Size 17 03900800 Cable Clamp 03901600 Contact Pin .125-8pin 50amp 4 16' 03935400 Heatshrink .472 to .236 5 18' 03916400 Wire 12ga White x Ft 6 18' 03914900 Wire 12ga Black x Ft 7 18' 03917200 Wire 12fa Red x Ft...
  • Page 35 Wiring Harness #616847-Harness-Shuttle Item Qty Part No. Description 03904000 Connecotr Plug Freehang Size 17 03900800 Cable Clamp 03901600 Contact Pin .125-8pin 50amp 03935400 Heatshrink .472 to .236 03916400 Wire 12ga White x Ft 03914900 Wire 12ga Black x Ft #616844-Harness-Gates Item Qty Part No.

  • Page 36: Trailer Assembly

    Trailer Assembly- 4 Box #883603 Trailer Assembly Item Qty Part No. Description Item Qty Part No. Description 982173 Trailer Conduit WA 4 Box 338772 Pin Wire Lock .250 X 2.750 338541 HHCS .625 X 1.500 SAE 338533 Nut #12-24 Hex Nylock 332494 Nut .625 Hex SAE 338525...
  • Page 37 4 Box Trailer Trailer RV Plug...
  • Page 38 P.O.Box 526 Spearville Kansas 67876 (620) 227-7106 crustbuster.com...
