CrustBuster SPEED KING 5000 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P.O. Box 526 - Spearville, Kansas 67876 - (620) 227-7106
crustbuster.com
5000
Drill
Owner's Manual
01-08)
# 608786
(

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPEED KING 5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CrustBuster SPEED KING 5000

Summary of Contents for CrustBuster SPEED KING 5000

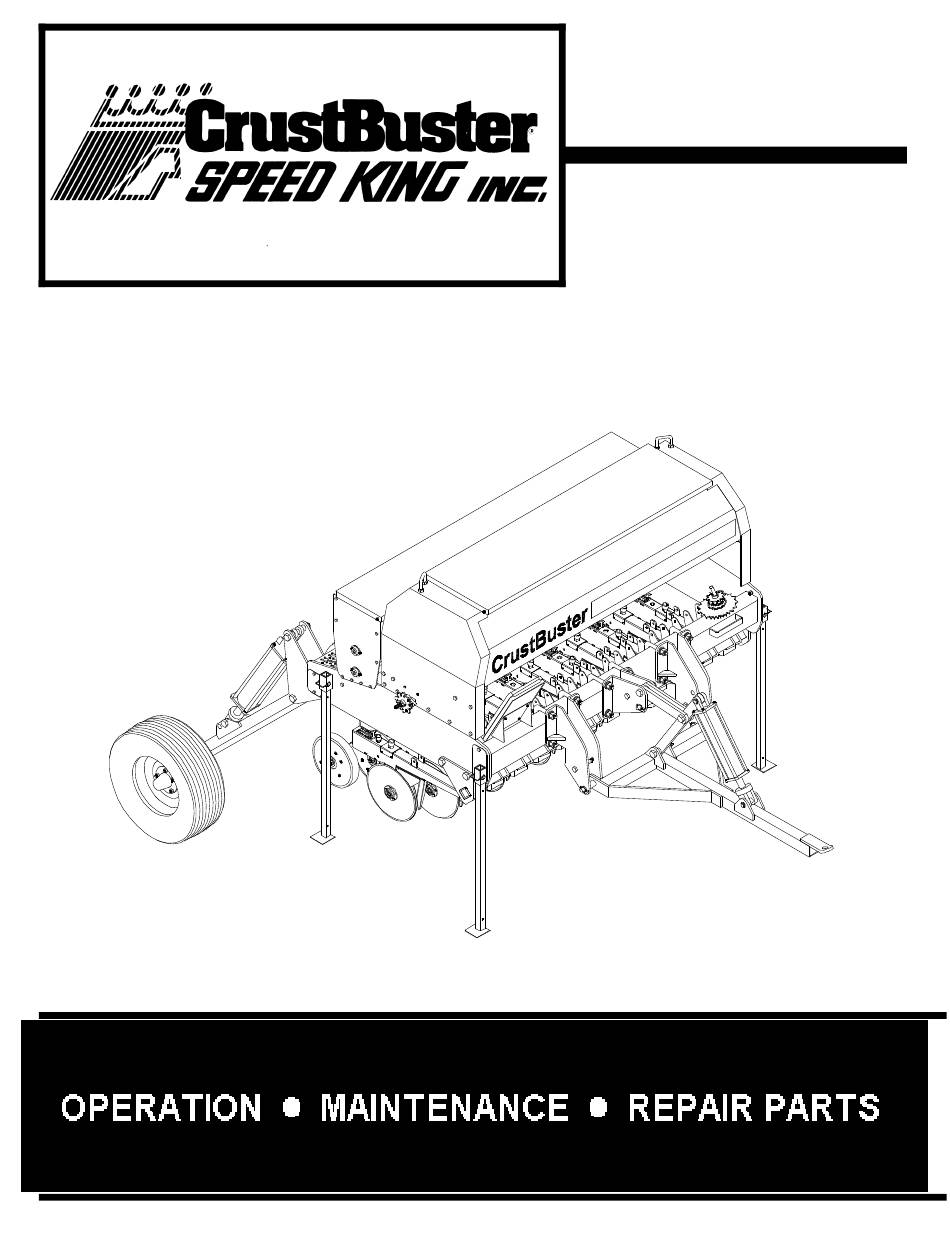

  • Page 1 P.O. Box 526 - Spearville, Kansas 67876 - (620) 227-7106 crustbuster.com 5000 Drill Owner's Manual 01-08) # 608786...
  • Page 2 Identification Your CrustBuster® drill is identified by a Serial Number and Model Number. Record these numbers in the spaces provided in this manual and refer to them when ordering parts or requesting service. Serial Number Model Number Warranty WARRANTY: In addition to the implied warranties of fitness and of merchantability, CrustBuster®/Speed King, Inc.

  • Page 3: Table Of Contents

    Table of Contents Identification & Warranty ..... . Inside Cover Safety ......... . . 2-8 Field Operating Checklist .
  • Page 4 If special attention is required for some maintenance to keep it in top running condition, ask your CrustBuster dealer; he condition. We have attempted to cover all will be glad to help and answer any questions...

  • Page 5: Safety

    Safety RECOGNIZE SAFETY INFORMATION UNDERSTAND SIGNAL WORDS FOLLOW SAFETY INSTRUCTIONS...
  • Page 6 Safety OPERATE SAFELY AVOID TIP-OVERS KEEP RIDERS OFF MACHINE...
  • Page 7 Safety HANDLE FUEL SAFELY - AVOID FIRES PREPARE FOR EMERGENCIES PRACTICE SAFE MAINTENANCE...
  • Page 8 Safety WEAR PROTECTIVE CLOTHING USE SAFETY LIGHTS AND DEVICES TRANSPORT SAFELY DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 9 Safety Decals REMEMBER: If Safety signs have been damaged, removed, become illegible or parts replaced without decals, new decals must be applied. New decals are available from your authorized distributor or factory. Decal part numbers and locations shown below. Item Qty Part No. Description 608760 Seed Slot Adjustment...

  • Page 10: Field Operating Checklist

    ____ Allow no riders. ____ If transporting drill while box is full, turn drive wheels manually before drilling to assure compaction has not stopped seed flow. (CrustBuster does not recommend transporting with full grain box.) ____ Do not turn sharply with drill in ground.
  • Page 11 Drill Opener Setting Down Pressure Opener pressure setting is easy and allows separate settings for tire compaction areas to different soil conditions from field to field. Screw mechanism allows you to turn the pressure up or down. The locking nut locks the desired setting from 140 lbs.

  • Page 12: Wobble Slot Seed Cup

    Wobble Slot Seed Cup Adjustments and Service The wobble slot seed cups should be checked against the slot gauge initially and anytime service has been performed on the seed shaft or individual seed cups. To verify that all seed cups are set the same on the shaft, start with all cups fully closed.

  • Page 13: Calibration & Seed Rates

    Each of these can "gum" up the very easy to use. Information can be obtained wobble slot cup halves and reduce final from CrustBuster®/Speed King, Inc. seeding rate. Treated seed often flows differently than non-treated seed.

  • Page 14: Lubrication, Maintenance, And Service

    Lubrication, Maintenance, and Service Proper maintenance will extend the life of your Oil chains with a chain lube. A light penetrating drill give years excellent oil or liquid graphite should be used on seed performance. Refer to repair part drawings and cups initially and at the end of each season.

  • Page 15: Seed Rate Charts Large Seed Hopper

    Seed Rate Charts for Large Seed Hopper (Revised 12-09-11) ALFALFA BARLEY Sprockets 6 2/3" 7 1/2" Sprockets 6 2/3" 7 1/2" Spacing Spacing Spacing Spacing A B C D 1/8" 1/4" 1/8" 1/4" A B C D 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" 18 44 12 44 18 30 12 44 18 37 12 44...
  • Page 16 Seed Rate Charts for Large Seed Hopper (Revised 12-09-11) CANOLA CORN Sprockets 6 2/3" 7 1/2" Sprockets 6 2/3" 7 1/2" Spacing Spacing Spacing Spacing A B C D " 1/4" 3/4" " 1/4" 3/4" A B C D 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" 18 44 12 44 18 30 12 44 18 37 12 44...
  • Page 17 Seed Rate Charts for Large Seed Hopper (Revised 12-09-11) COTTON FESCUE Sprockets 6 2/3" 7 1/2" Sprockets 6 2/3" 7 1/2" Spacing Spacing Spacing Spacing A B C D 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" A B C D 3/8" 1/2" 5/8" 3/8" 1/2" 5/8" 18 30 12 44 18 44 12 44 18 30 12 37...
  • Page 18 Seed Rate Charts for Large Seed Hopper (Revised 12-09-11) MILLET MILO Sprockets 6 2/3" 7 1/2" Sprockets 6 2/3" 7 1/2" Spacing Spacing Spacing Spacing A B C D " 1/4" 3/8" " 1/4" 3/8" A B C D " 1/4" 3/8" "...
  • Page 19 Seed Rate Charts for Large Seed Hopper (Revised 12-09-11) OATS PINTO BEANS Sprockets 6 2/3" 7 1/2" Sprockets 6 2/3" 7 1/2" Spacing Spacing Spacing Spacing A B C D 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" A B C D 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" 18 30 12 44 18 30 12 44 18 30 12 37...
  • Page 20 Seed Rate Charts for Large Seed Hopper (Revised 12-09-11) RICE Sprockets 6 2/3" 7 1/2" Sprockets 6 2/3" 7 1/2" Spacing Spacing Spacing Spacing A B C D 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" A B C D 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" 18 30 12 44 18 30 12 44 18 30 12 37...
  • Page 21 Seed Rate Charts for Large Seed Hopper (Revised 12-09-11) SOYBEANS WHEAT Sprockets 6 2/3" 7 1/2" Sprockets 6 2/3" 7 1/2" Spacing Spacing Spacing Spacing A B C D 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" A B C D 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" 18 30 12 44 18 30 12 44 18 30 12 37...

  • Page 22: Native Grass

    Native Grass Attachment Option The native grass, or also called warm season To adjust seed rate the picker wheels must turn grass, attachment is built to plant fluffy type slower or faster. The picker wheels have no grass seed. The agitators inside the box keep other way to change rate.
  • Page 23 Seed Rate Charts for Small Seed Hopper Row Spacing 6 2/3" Rate Chart for reference only. Use calibration for exact seed rate. Turns of Adjusting Handle Meter Opening Seed Seed Sprocket Type Rate Teeth # 1" 16" 8" 16" 4" 16"...
  • Page 24 Seed Rate Charts for Small Seed Hopper Row Spacing 7½" Rate Chart for reference only. Use calibration for exact seed rate. Turns of Adjusting Handle Meter Opening Seed Seed Sprocket Type Rate Teeth # 1" 16" 8" 16" 4" 16" 8"...
  • Page 25 5007 Frame Item Qty Part No. Description Item Qty Part No. Description 968248 Frame 330142 Lock Washer ½" 972574 Jack Stand 330134 Hex Nut ½" 330449 Pin 3/4" x 4½" 607416 Manual Holder 968495 Tool Bar 01057900 HHCS 1/4" x 3/4" 01172600 HHCS 1"...
  • Page 26 5010 Frame Item Qty Part No. Description 969188 Frame 5010 927574 Jack Stand 330449 Pin 3/4" x 4½" 969055 Tool Bar 5010 01172600 HHCS 1" x 2½" 330597 Nylock Nut 1" 267377 Frame Cap 4 x 4 01158500 HHCS 3/8" x 1 1/4" 330043 Lock Washer 3/8"...
  • Page 27 5015 Frame Item Qty Part No. Description 969428 Frame 5015 927574 Jack Stand 330449 Pin 3/4" X 4½" 969220 Tool Bar 5015 01172600 HHCS 1" x 2½" 330597 Nylock Nut 1" 267377 Frame Cap 4 x 4 01158500 HHCS 3/8" x 1 1/4" 330043 Lock Washer 3/8"...

  • Page 28: 3-Point Hitch

    5000 3 Point Hitch Item Qty Part No. Description 230243 3 Pt Bracket Center Right 230235 3 Pt Bracket Center Left 968354 3 Pt Bracket Outside Right 968347 3 Pt Bracket Outside Left 338343 U-bolt 7/8" x 7" x 6" 332296 Flat Washer 7/8"...

  • Page 29: Grain Box

    5000 Grain Box...
  • Page 30 5000 Grain Box Item Part No. Description Item Part No. Description 968404 Grain Box 7' 02016400 Flat Washer 1/4" 968842 Grain Box 10' Box Bottom Assembly 969287 Grain Box 15' Includes #32-45 335737 Box Handle 874453 7' x 7½" & 6 2/3" 330571 Hex Nut 5/8"...
  • Page 31 5000 Drive Item Qty Part No. Description Item Qty Part No. Description 874420 Drive Wheel Assembly 935114 Sprocket 2050 37T -1" Hub 333591 U-Bolt 3/4" x 4" x 5½" 935106 Sprocket 2050 30T -1" Hub 330332 Lock Washer 3/4" 431023 Chain 2050 x 41 Pitch 330290 Hex Nut 3/4"...

  • Page 32: Drive

    Drive End Bracket & Bearing Drive End Bracket #865758 #865741 Item Part No. Description Item Part No. Description 605766 External Snap Ring 03003100 Bearing 1" w/Snap Ring 310029 Seed Shaft Drive Adaptor 957993 Drive End Bracket 865741 Drive End Bracket &...
  • Page 33 5000 Min-Till Opener...

  • Page 34: Opener

    5000 Min-Till Opener Item Part No. Description Opener Assembly Items #25,#37,#39, #47 are NOT included in assembly 874735 Right Long 874743 Left Long 874750 Right Short 874768 Left Short 967711 Opener Long Right (Shown) 967984 Opener Short Right 967729 Opener Long Left 967992 Opener Short Left 874727...

  • Page 35: Pull Bars

    Pull Bar 5007 Item Qty Part No. Description 968255 Hitch 469924 Cylinder 3 x 8 330357 HHCS 1" x 5½" 330597 Nylock Nut 1" 19066000 Spacer 230383 Front Linkage 230532 Rear Linkage 334870 HHCS 1" x 4" 964742 Cylinder Lock Out 00233700 Pin Wire Lock 935924 Hose Carrier...

  • Page 36: Pull Bar Hydraulics

    Pull Bar Hydraulics 5007 5010 & 5015 Item Qty Part No. Description Item Qty Part No. Description 465385 Coupler 3/4" FOR 465385 Coupler 3/4" FOR 473066 Hose 3/8" x 100" 473066 Hose 3/8" x 100" 3/4" JICF Sw x 3/4" MOR 3/4"...
  • Page 37 Hydraulic Cylinder 3" x 8" Hyd. Cylinder w/Depth Control 1 1/4" Ram w/ 3/4-16 SAE Ports 90 to Pins CBI No. 469924 Item CBI No. Description 461095 Clevis 470328 469726 Head 463133 Clevis Pin 463133 Clevis Pin 460329 Rod Wiper 460923 Piston O-ring 460980...

  • Page 38: Cylinder

    5000 Lift Arms 5007 Item Qty Part No. Description 874446 Lift Arm Right 874438 Lift Arm Left 333591 U-bolt 3/4" x 4" x 5½" 330332 Lock Washer 3/4" 330290 Hex Nut 3/4" 469924 Cylinder 3 x 8 964742 Cylinder Lock Out 00233700 Pin Wire Lock #874446 Lift Arm Right (Shown) #874438 Lift Arm Left...

  • Page 39: Lift Arms

    5010 & 5015 Lift Arm Item Qty Part No. Description 875682 Lift Arm 333591 U-bolt 3/4" x 4" x 5½" 330332 Lock Washer 3/4" 330290 Hex Nut 3/4" 330597 Nylock Nut 1" 469924 Cylinder 3 x 8 964742 Cylinder Lock Out 00233700 Pin Wire Lock #875682 Lift Arm 5010 &...

  • Page 40: Hub & Spindle

    Hub & Spindles #831677 - Hub & Spindle 5007 Item Part No. Description 400820 Spindle 1 5/8" x 14 ½" 400044 Dust Seal 05741400 Inner Bearing Cone 05742200 Inner Bearing Cup 331306 Lug Bolt 550012 Hub 736 w/ cups & lug bolts 551275 Hub 736 Complete 400036...

  • Page 41: Native Grass Box

    5000 Native Grass Box Item Part No. Description 432914 Chain 2050 21 Pitches 430983 Chain Connector 2050 149393 Bushing ½" x 3/8" x 5/16" Item Part No. Description 335703 HHCS 3/8" x 1½" 968925 Native Grass Box 7' Drill 330837 Nylock 3/8"...

  • Page 42: Native Grass Drive

    5000 Native Grass Drive Item Part No. Description Item Part No. Description 874826 Box Assembly 7' Drill 330142 Lock Washer ½" 874958 Box Assembly 10' x 7½" Drill 330159 Flat Washer ½" 874966 Box Assembly 10' x 6 2/3" Drill 571273 Nylon Idler 875070...

  • Page 43: Legume Box

    5000 Legume Box Item Part No. Description 311886 Drive Shaft 7' Drill 311910 Drive Shaft 10' Drill 311951 Drive Shaft 15' Drill 571570 Feed Cup Item Part No. Description 571588 Feed Roll 969014 Legume Box 7' Drill 571596 Feed Cut-off 969154 Legume Box 10' Drill 571604...

  • Page 44: Legume Drive

    5000 Legume Drive Item Part No. Description Item Part No. Description 874842 Box Assembly 7' Drill 431841 Chain 2050 37 Links 874974 Box Assembly 10' x 7½" Drill 430983 Chain 2050 Connector Link 874982 Box Assembly 10' x 6 2/3" Drill 431270 Chain 2050 Offset Link 875088...
  • Page 45 5000 Coulter Item Qty Part No. Description 334425 Klik Pin 7/16" w 2" Ring 336461 Machine Bushing 2 1/4" x 1½" x 10ga 502377 Coulter Blade 15" 968446 Spindle & Hub Arm -Long 968438 Spindle & Hub Arm -Short 330316 Nylock Nut 3/4"...
  • Page 46 5007 Fertilizer Box Item Qty Part No. Description Item Qty Part No. Description 969774 Fertilizer Box 969782 Box Bottom 335737 Box Handle 312058 Hex Shaft 330571 Hex Nut 5/8" 960625 Fertilizer Cup 969758 Fertilizer Box Lid 571240 Nylon Rotor 308122 Box Lid Handle 571257 Nylon Rotor 30 Degree...
  • Page 47 Drive End Bracket Assembly Drive End Bracket #866442 #866434 Item Part No. Description Item Part No. Description 605766 External Snap Ring 03003100 Bearing 1" w/Spring 310235 Seed Shaft Drive Adaptor 959130 Drive End Bracket 866434 Drive End Bracket/Brg Assy 5007 Fertilizer Drive Item Qty Part No.
  • Page 48 5007 REFER TO NOTE BELOW TO DETERMINE RATE, THEN REFER TO THIS CHART. Fertilizer Fertilizer delivery rate per revolution determined from sample of material you will apply of: .55 oz .6 oz .65 oz .7 oz .75 oz of fertilizer per of fertilizer per of fertilizer per of fertilizer per...
  • Page 49 P.O.Box 526 Spearville Kansas 67876 (620) 227-7106 crustbuster.com...
  • Page 50 All Grain Drills Final Assembly Check List Drill Model # Drill Serial # DESCRIPTION CHECKED INITIALS Check console, Light kit, Chain bag No missing nuts & bolts and that all nuts & bolts are tight. Center lug bolts torque to 120 ft. lbs. All bearing zerks are greased.
