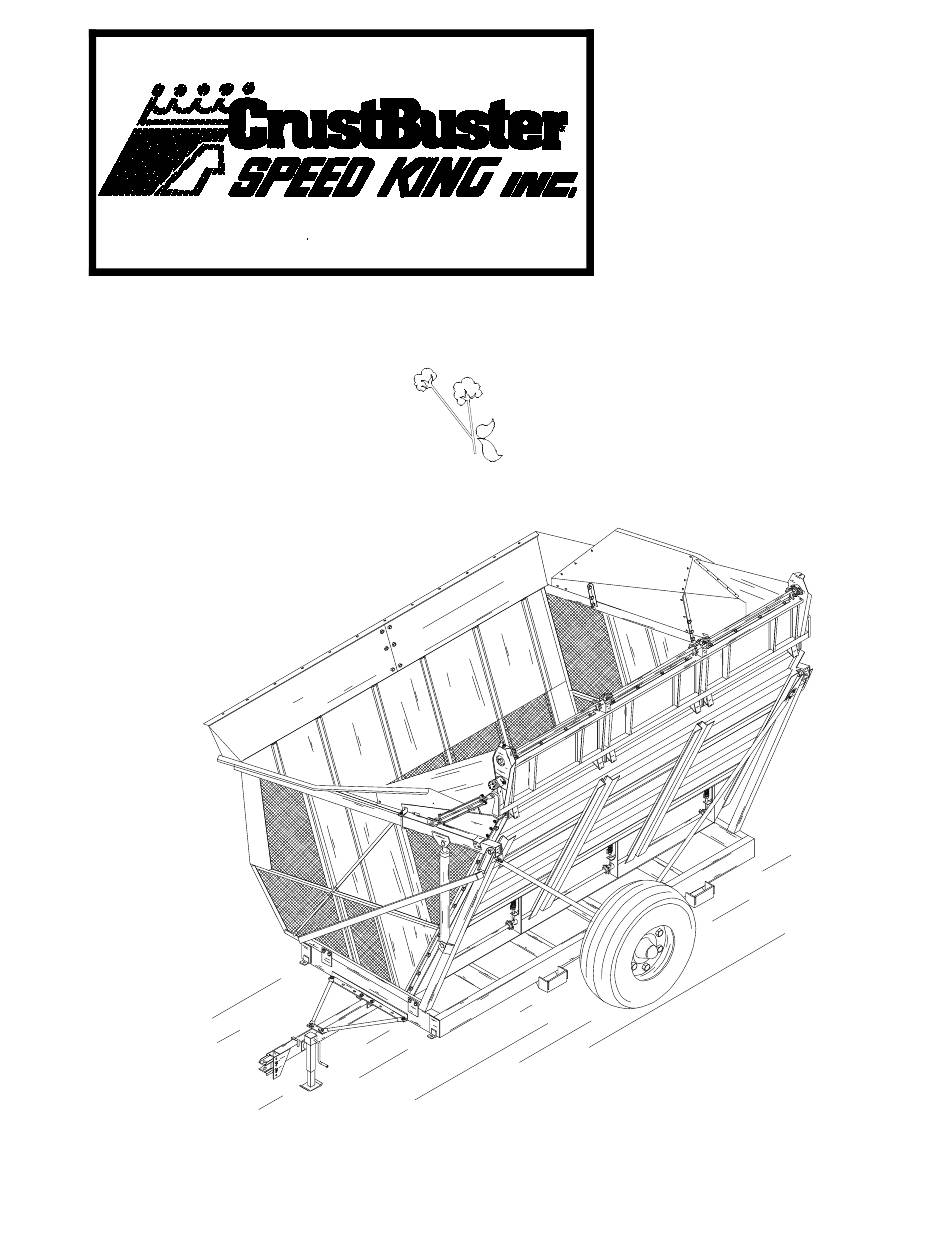

- Page 1 Super 20XL BOLL BUGGY REPAIR PARTS 607283-0307...
-
Page 2: Table Of Contents
WARRANTY PROCEDURE: Should any part fail to conform with this warranty, CrustBuster/Speed King will repair or replace the part or parts which do not conform. If a part is defective, take it to your authorized CrustBuster Farm Equipment Dealer immediately, along with your warranty registration, and complete the proper forms requesting a warranty adjustment. -
Page 3: Safety
Safety Read and follow these instructions for your safety and the safety of anyone around the machine. Keep safety signs clean and legible at all times. Replace safety signs that are missing or have become illegible. #603217 #603894... - Page 4 Safety #606848 #607291 #604512 May we suggest that you take a few additional Look for this symbol to point minutes to read over more than once the areas of out important safety this manual where SAFETY SYMBOLS and precautions. It means--- CAUTION notes appear.
-
Page 5: Dealer Check List
IMPORTANT: The Warranty Registration form must be completed, signed by both dealer and customer and returned to CrustBuster/Speed King, Inc., Box 1438, Dodge City, KS 67801, to validate the warranty. If warranty registration is not completed and returned, the product concerned will not be covered by warranty policy. -
Page 6: Operation
Operation Familiarize yourself with the various features of the Figure 1 Boll Buggy before operating. Read this section of your manual carefully. Attaching to Tractor 1. Adjust tongue ball hitch (standard) or clevis hitch (optional) to the appropriate holes on the tongue to level main frame when attached to tractor drawbar. - Page 7 Operation 5. Retract cylinders to fully closed position and Operating Information reconnect cylinder rod to basket using cylinder Before operating this unit, refer to the Lubrication pin. section in this manual on page 8 and make sure machine is properly lubricated. 6.
- Page 8 Operation 3. Always select level area for dumping. If Adjust tractor hydraulic flow so regulator turns the area is uneven, position units so when slowly enough to provide a controllable the Boll Buggy is dumping, the dump-in amount cotton. side of the unit is lower than the dump-out side.
- Page 9 Operation LOADING / UNLOADING PROCEDURE TYPICAL ALL BOLL BUGGY MODELS WITH PACKER / DIVIDER PANEL FILL BOLL BUGGY WITH PACKER / DIVIDER AGAINST INLOAD SIDE. PACK COTTON TO OUTLOAD SIDE OF BOLL BUGGY AND DUMP SECOND LOAD. MOVE PACKER / DIVIDER BACK TO INLOAD SIDE TO START UNLOAD.
-
Page 10: Lubrication And Maintenance
Lubrication and Maintenance IMPORTANT : Before operating your Boll Buggy, make sure it is properly lubricated and thoroughly inspected. Only a minimum of time and effort is required to regularly lubricate and maintain this machine to insure long life and trouble-free operation. Lubrication Maintenance ... -
Page 11: Storage
Storage The Boll Buggy should be stored in an enclosed building to prevent hoses, cylinders, and metal surfaces from deteriorating due to weather exposure. Recommended storage procedure follows: 1. Elevate frame so tires will clear ground. NOTE : When preparing to use machine after storage, check for any oil leaking. -
Page 12: Isometrics And Parts Lists
Main Frame Repair Parts... - Page 13 Main Frame Repair Parts Item Qty Part No. Description Item Qty Part No. Description 873836 Coupler - 2 5/16" 402784 Outer Cup 942813 Hitch 402800 Outer Bearing 964601 Swivel Mono Hitch 402842 Spindle Washer 967869 Converter for 964601 402859 Spindle Nut 1 1/4" Castle 967976 Swivel Mono Hitch 402818...
- Page 14 Basket Repair Parts...
- Page 15 Basket Repair Parts Item Qty Part No. Description Item Qty Part No. Description 966549 Floor Panel 331926 HHCS ½" x 2" 964163 Bottom End Panel -Front 17 134 330159 Washer ½" Flat 964171 Bottom End Panel -Rear 18 134 335836 Nut ½"...
- Page 16 Basket Hydraulics Repair Parts...
- Page 17 Basket Hydraulics Repair Parts Item Qty Part No. Description Item Qty Part No. Description 466581 Cylinder 4" x 60" 153155 Hydraulic Line 00618900 Adapter 90E 5/8" x 13ga x 114" 7/8" JICM / 7/8" JICM 00613000 Clamp 5/8" 468751 Hydraulic Hose 3/8" x 94" 330845 Washer 5/16"...
- Page 18 Basket Extension Repair Parts Item Qty Part No. Description 964387 Front Dump Side Extension 964395 Rear Dump Side Extension 263277 Regulator Cover Plate 263947 Dump Side Corner Plate 960377 Rear Load Side Extension 960369 Front Load Side Extension 284422 Top Panel Guard 265108 Front Corner Plate 265116...
- Page 19 Packer Panel Repair Parts Item Qty Part No. Description 966952 Lower Packer Panel 966929 Top Packer Panel 962514 Frame Plate 966937 Packer Arm 472399 Cylinder 3½" x 12" 334987 HHCS 1" x 3" 330597 Nylock Nut 1" 335174 HHCS 3/4" x 2½" 330316 Nylock Nut 3/4"...
- Page 20 Packer Panel Hydraulics Repair Parts...
- Page 21 Packer Panel Hydraulics Repair Parts Item Qty Part No. Description Item Part No. Description 472399 Cylinder 3½" x 12" 466680 Hyd Relief Valve 1500 PSI 466862 Adapter 90E 3/" MOR/ 466631 Hyd Hose 3/8" x 15" 3/4" JICM w/restrictor 3/8" NPTM/1/2" NPTM 472167 Hose 3/8"...
- Page 22 Regulator Repair Parts Item Qty Part No. Description 966747 Regulator Reel 12857900 Key ½" x 2 3/8" 330571 Hex Nut 5/8" 330878 Lock Washer 5/8" 637405 Bearing Assembly Item Qty Part No. Description 03011400 Bearing 1 15/16" 2 Bolt 152454 Motor Spacer 337022 Set Screw 3/8-24 x3/8 Cone...
- Page 23 Big Lip Repair Parts Item Qty Part No. Description Item Qty Part No. Description 966697 Big Lip 311159 Pivot Pin 607317 Belt 6" x 112" 965186 Rear Motor Mount 226506 Back Up Strap 965178 Front Motor Mount 966630 Top Shaft Mount Front 208876 U-bolt Strap 966622...
- Page 24 Chain Door Repair Parts Item Qty Part No. Description Item Qty Part No. Description 967968 Cover 330035 Nylock Nut 3/8" 966630 Top Shaft Mount Front 873018 Chain & Slat Assembly 966622 Top Shaft Mount Rear Includes #21 & #22 01047000 Carriage Bolt 5/16" x 1" 226399 Chain Slat Only 330845...
- Page 25 Chain Door Drive Repair Parts *Dual unload requires additional items #1-#29 and #51 & #52 & #54. **#51 & #52 -dual unload only Item Qty Part No. Description 330811 Hex Nut 5/16" 00613000 Hose Clamp 5/8" 01017300 HHCS 3/8" x 1" Item Qty Part No.
- Page 26 Swing Hitch Repair Parts Item Qty Part No. Description Item Qty Part No. Description 00913400 Hose Clamp 5/8" Double 462127 Hyd Cylinder 3 x 20 01017300 HHCS 3/8" x 1" 463539 Adapter 90E 465385 Male Coupler 3/4" MOR ½" NPTM / 3/8" NPTF 967349 Hose Holder 468702...
- Page 27 Hydraulic Cylinders Repair Parts #462127 #472399 Chain Dump Packer Panel Cylinder - 3½" x 12" & Swing Hitch Cylinder - 3" x 20" Item Qty Part No. Description Item Part No. Description 461483 Rod Clevis 472977 Clevis 460931 460881 Head Head 460964 Piston...
- Page 28 Boll Vac Repair Parts...
- Page 29 Boll Vac Repair Parts Item Qty Part No. Description Item Qty Part No. Description 870667 Fan Assembly 03488400 Shoulder Strap 18147900 Fan Mounting Strap 03489200 Shoulder Strap Ring 01180900 HHCS ½" x 1 1/4" 472217 Hose 3/4" x 454" 330159 Flat Washer ½"...
- Page 30 Boll Vac Fan & Hydraulics Repair Parts...
- Page 31 Boll Vac Fan & Hydraulics Item Qty Part No. Description Item Qty Part No. Description 82327800 Fan Mount 335174 HHCS 3/4" x 2½" 01017300 HHCS 3/8" x 1" 03455300 Bearing 1½" Pillow Block 330043 Lock Washer 3/8" 11317500 Key 3/8" x 3" 330035 Hex Nut 3/8"...
- Page 32 P.O. Box 1438 Dodge City, Kansas 67801 (620) 227-7106...
