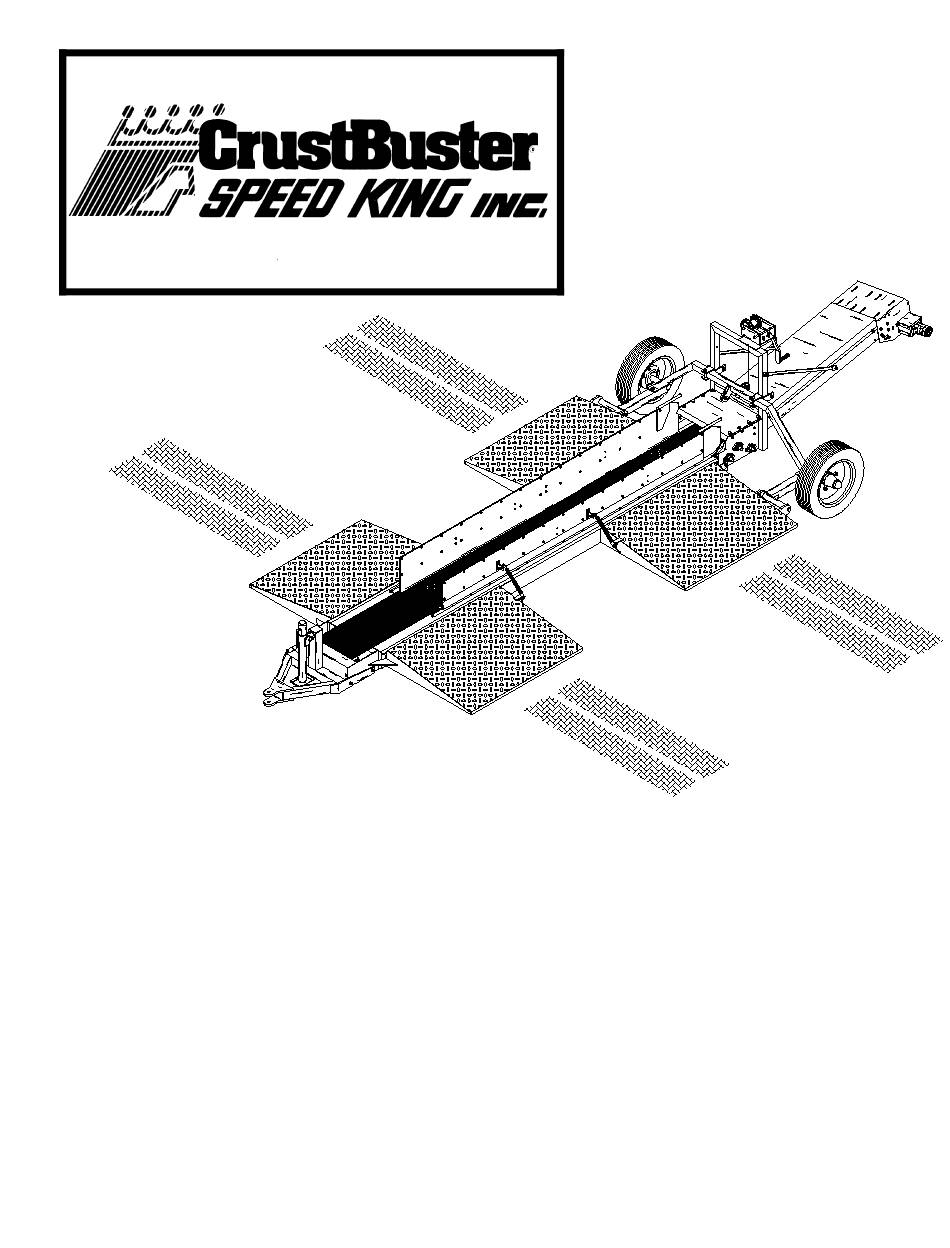

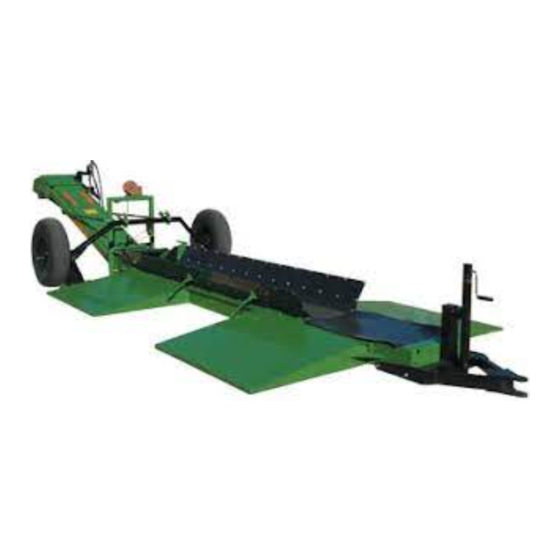

- Page 1 ™ Drive Over- Pit Belt Accelerator & Multi-Purpose Belt Loader OWNER'S MANUAL 00028100 (02/99)
-
Page 2: Table Of Contents
F.O.B. our works, provided the consumer gives CrustBuster/Speed King,Inc. written notice within ten (10) days after said part appears to be defective and affords CrustBuster/Speed King,Inc. an opportunity to inspect. Unless otherwise expressly agreed to by CrustBuster/Speed King,Inc., the consumer shall bear the expense of installation. -
Page 3: Safety
Introduction Read this manual carefully. It will instruct you on how to operate and service your machine safely and correctly. Failure to do so could result in personal injury and/or equipment damage. Warnings ™ 1. DO NOT service Drive Over-Pit before stopping all motors and locking out power source. - Page 4 Owner's and User's Statement of Responsibility ™ Drive Over-Pit Belt Accelerator & Multi-Purpose Belt Loader I have had explained to me and accept responsibility for the following: ™ I understand this Drive Over-Pit conveyor is a heavy, powerful, and bulky unit of equipment capable of causing injury or death when used improperly.
-
Page 5: Lubrication And Maintenance
Lubrication and Maintenance CAUTION: STOP ALL MOTORS AND LOCK OUT POWER SOURCE BEFORE SERVICING CONVEYOR. CAUTION: IF GUARDS OR SHIELDS ARE REMOVED TO SERVICE UNIT, REPLACE IMMEDIATELY AFTER COMPLETION OF WORK. IMPORTANT: THE LUBRICATION PERIODS RECOMMENDED ARE BASED ON NORMAL USAGE. SEVERE OR UNUSUAL CONDITIONS REQUIRE... -
Page 6: Dimensional Drawings
™ Drive Over-Pit Belt Accelerator Dimensional Drawing... - Page 7 ™ Drive Over-Pit Multi-Purpose Belt Loader Dimensional Drawing...
-
Page 8: Belt Wrap Diagram & Replacement Belts
™ Drive Over-Pit Belt Wrap Diagram... -
Page 9: Cable Wrap Diagram
Drive Over-Pit™ Cable Wrap Diagram Drive Over-Pit™ Guard Bracket Locations Electric Drive... -
Page 10: Repair Parts
™ Drive Over-Pit Ramp Repair Parts... - Page 11 ™ Drive Over-Pit Ramp Repair Parts Item Qty Part No. Description Item Qty Part No. Description 530733 Jack 2000# Side Crank 807313 Tire & W heel Assem bly 81557100 Hitch W eldm ent Includes: 81634800 Take-up Bolt 530154 Tire 9.5L x 15-6 Ply 332189 Square Nut 3/8"...
- Page 12 ™ Drive Over-Pit Belt Accelerator Repair Parts Hydraulic Drive...
- Page 13 ™ Drive Over-Pit Belt Accelerator Repair Parts Hydraulic Drive Item Qty Part No. Description Item Qty Part No. Description 81649600 Fram e W eldm ent 14706600 Drive Guard (4 7/8") 15698400 Skirtboard Brace RH 16974800 Drive Guard (6 ½") 15581200 Slide Pan 14705800 Drive Guard Side Plt (4 7/8")
- Page 14 ™ Drive Over-Pit Belt Accelerator Repair Parts Electric Drive...
- Page 15 ™ Drive Over-Pit Belt Accelerator Repair Parts Electric Drive Item Qty Part No. Description Item Qty Part No. Description 81649600 Fram e W eldm ent 15108400 Chain Guard Back Plate 15698400 Skirtboard Brace RH 15103500 Chain Guard Side 15581200 Slide Pan 61813200 Chain Guard Assem bly 81339400...
- Page 16 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts Hydraulic Drive...
- Page 17 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts Hydraulic Drive Item Qty Part No. Description Item Qty Part No. Description 81649600 S-W rap Fram e 81562100 Lagged Roller 6" 15571300 Back-up Strap 15662000 Head Fram e 15570500 Skirtboard 81563900 Spout W eldm ent 15565500 S-wrap Seal RH 14706600...
- Page 18 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts Electric Drive...
- Page 19 ™ Drive Over-Pit Multi-Purpose Belt Loader Repair Parts Electric Drive Item Qty Part No. Description Item Qty Part No. Description 81684300 Truss Bar W eldm ent 81649600 S-W rap Fram e 15560600 Pan Cover 15571300 Back-up Strap 60194800 Roller Assem bly 2 3/8" 15570500 Skirtboard 15240500...
-
Page 20: Assembly Instructions
Assembly Instructions ™ CAUTION: Most component parts of the Drive Over-Pit Belt Accelerator as well as the Multi-Purpose Belt Loader are heavy. Use a safe lifting device when unloading and during the assembly process. Pre-Assembly Notes: Fasteners may vibrate loose during shipping. It is recommended you check nuts, bolts, set screws, and sheave alignment on pre-assembled parts prior to start-up. - Page 21 Assembly Instructions Belt Accelerator - Electric Drive Refer to belt guard bracket locations on page 7. Using the two spacers D, 5/16" X 1½" carriage bolts, lock washers, and hex nuts, assem ble chain guard C to head fram e side A as shown. Attach wood idler E to chain guard C on head fram e A as shown using a ½"...
- Page 22 Assembly Instructions Multi-Purpose Belt Loader - Electric Drive Figure #4 Refer to guard bracket locations on page 7. Attach belt guard bracket B to head fram e A as shown using 3/8" x 1" carriage bolts, flat washers, lock washers, and hex nuts. Bolt brackets C to head fram e using 5/16"...
- Page 24 P.O.Box 1438 Dodge City, Kansas 67801 (620) 227-7106...
