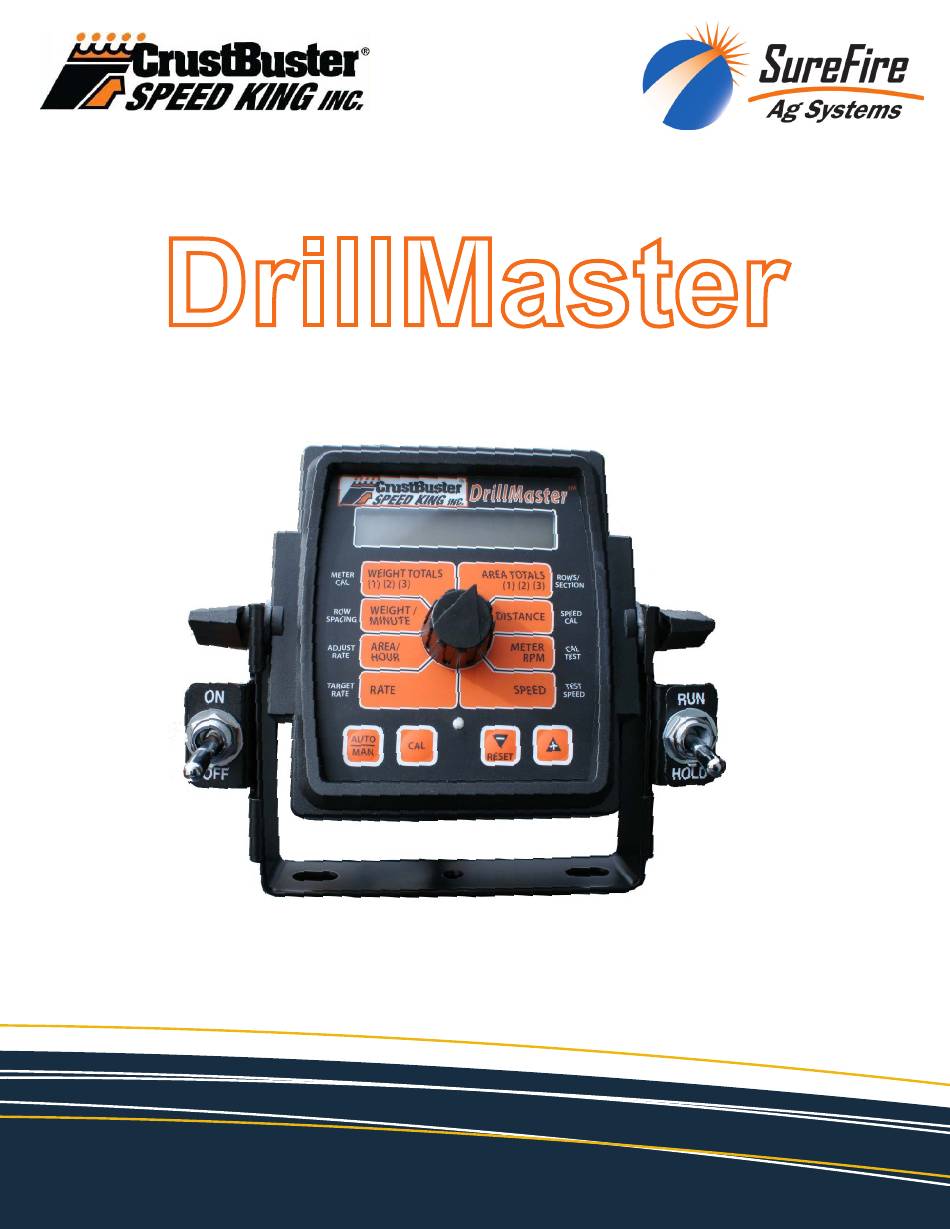

  • Page 1 DrillMaster Grain Drill Section Controller R E F E R E N C E M A N U A L www.surefireag.com...

  • Page 2: Installation

    See Illustration 2. 4. Install the switch in the bracket and secure in place with the remaining hex nut. NOTE: Make sure the “ON” connector is at to top. CrustBuster DrillMaster Quick Start Guide 346-001150 Pg 2 Revised 4/2/2010...

  • Page 3: Installation (Cont)

    DC negative ground electrical system. mating cable from the console. POWER/BATTERY CONNECTION Locate the power cable for the DrillMaster and route to the battery. When routing cable to console, avoid areas where the cable may be subjected to abrasion or excessive heat.
  • Page 4 DrillMaster Tractor Controller Wiring Layout To Battery To Astro 5 (Yellow Tie) To Run/Hold Switch (Gray Tie) (Controller to Hitch) 10 Pin Harness on Drill CrustBuster DrillMaster Quick Start Guide 346-001150 Pg 4 Revised 4/2/2010...
  • Page 5 DrillMaster Console Functions The DrillMaster features a large, easy-to-read liquid crystal display, easy-to-use rotary dial and lighted panel for night use. AREA TOTALS (1) (2) (3): SECTION ON/OFF: The Keeps a running count of the Console has three Section total acres worked. May be ON/Off toggle switches reset.
  • Page 6 3 on and adjust. When DrillMaster. These are starting calibration numbers for finished, turn the DrillMaster back to hold and the average seed properties. The Meter Cal will be adjusted screen will display no SECtn. If you are on a single later in the DrillMaster calibration process.
  • Page 7 With any 2. Push the AUTO/MAN button until MAN is displayed single section on is there a number displayed for on the DrillMaster. You are now in Manual mode. WEIGHT/MINUTE. 3. Put the system in RUN. Turn the console switch to 10.
  • Page 8 8. Press and Hold “CAL” until red light is off to exit calibration. This saves the new calibration settings. 9. Re-run test to verify calibration is accurate. 10. Re-enter calibration mode and turn dial to Meter Cal. Make a note of the Meter Cal for your drill and seed in the DrillMaster manual. CrustBuster DrillMaster Quick Start Guide...
  • Page 9 6. Push CAL key to toggle to the weight. Use the “+” and “-“ buttons to adjust the weight to the actual weight drilled. The DrillMaster will automatically change the Meter Cal value. 7. Push CAL key to toggle back to the new Meter Cal value. Make a note of the new value in you operators manual for future reference.
