Sun Microsystems Technical Compute Farm Read Me First page 22

FIGURE 11
To Replace an Ethernet Switch
1. Set the replacement Ethernet switch on a workbench.
2. Using a No. 2 Phillips screwdriver, replace the two screws securing each front and
back mounting bracket to the Ethernet switch (
3. From the front of the rack (
a. Position the Ethernet switch into the rack, making sure that the mounting plate
back mounting screws are properly positioned into the Ethernet switch back
mounting brackets.
b. Align the Ethernet switch front mounting brackets with the mounting plate
front mounting screw holes.
Refer to
c. Using a No. 2 Phillips screwdriver, tighten the front mounting screws securing
the Ethernet switch chassis to the mounting plate.
4. From the back of the rack (
a. Using a No. 2 Phillips screwdriver, tighten the rear mounting screws securing
the Ethernet switch back mounting brackets to the mounting plate.
22 Sun Technical Compute Farm Read Me First • December 2000
C i s
c o
2 6 0
0
Back mounting
bracket (2)

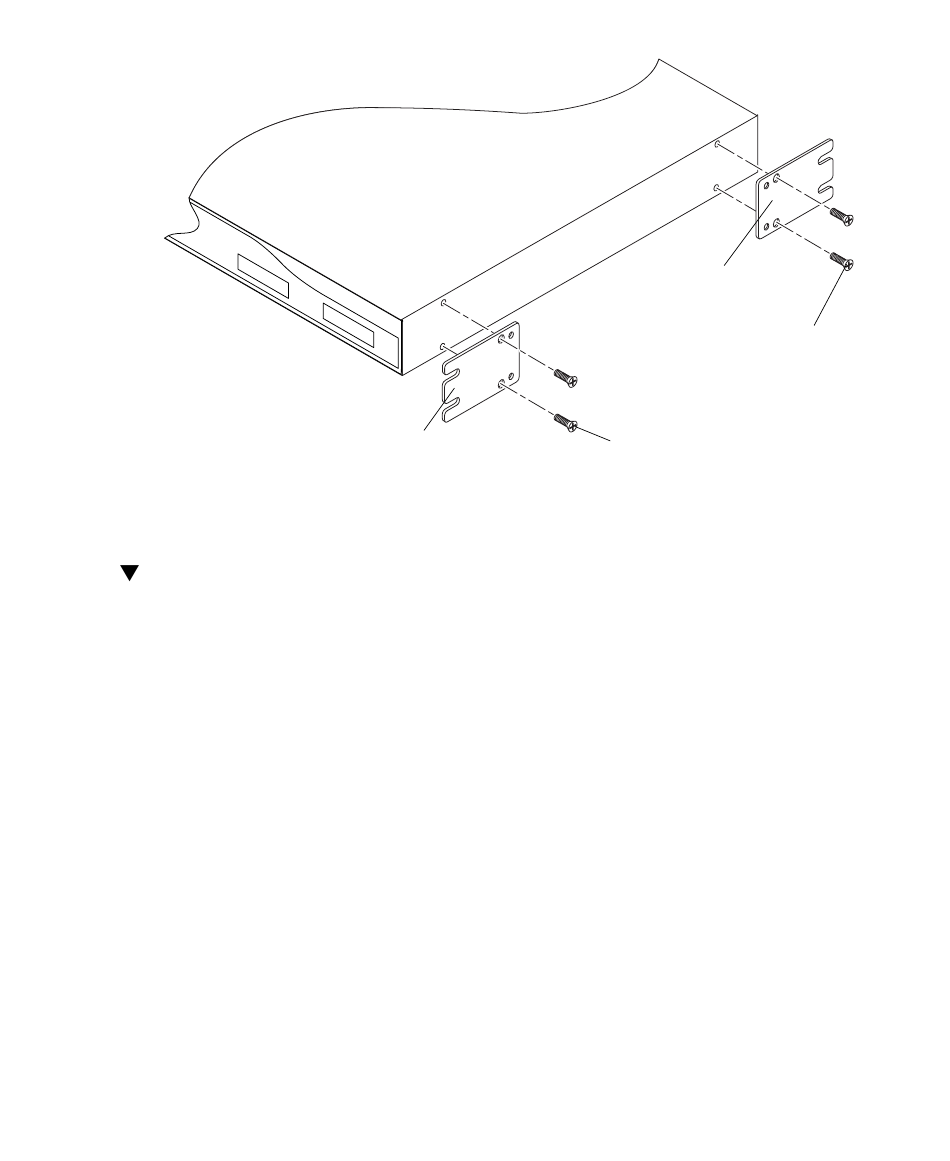

Removing and Replacing the C3524 Ethernet Brackets
FIGURE 10
for proper screw hole position.
FIGURE 12
FIGURE 10
Screw (4)
(No. 6)
).
FIGURE 11
):
):
Front mounting
bracket (2)
Screw (4)
(No. 6)
