Sun Microsystems Technical Compute Farm Read Me First page 16

FIGURE 8
To Replace a Terminal Server
1. Set the replacement terminal server on a workbench.
2. Using a No. 2 Phillips screwdriver, replace the two screws securing each front and
back mounting bracket to the terminal server (
3. From the front of the rack (
a. Position the terminal server into the rack, making sure that the mounting plate
back mounting screws are properly positioned into the terminal server back
mounting brackets.
b. Align the terminal server front mounting brackets with the mounting plate
front mounting screw holes.
Refer to
c. Using a No. 2 Phillips screwdriver, tighten the front mounting screws securing
the terminal server chassis to the mounting plate.
4. From the back of the rack (
a. Using a No. 2 Phillips screwdriver, tighten the rear mounting screws securing
the terminal server back mounting brackets to the mounting plate.
16 Sun Technical Compute Farm Read Me First • December 2000
C i s
c o
2 6 0
0
Front mounting
bracket (2)

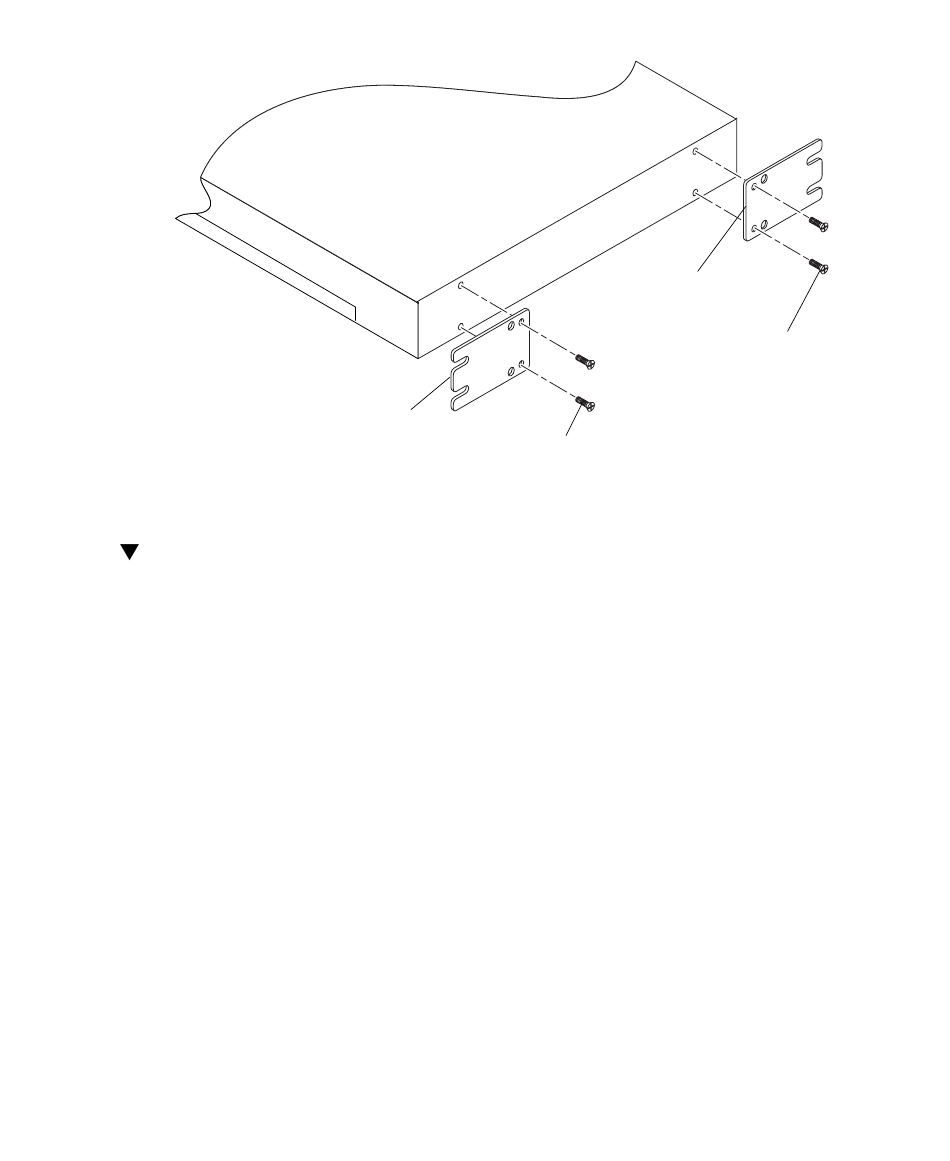

Removing and Replacing the Terminal Server Mounting Brackets
FIGURE 7
for proper screw hole position.
FIGURE 9
FIGURE 7
Back mounting
bracket (2)
Screw (4)
(No. 6)
).
FIGURE 8
):
):
Screw (4)
(No. 6)
