Sun Microsystems Technical Compute Farm Read Me First page 10

Building
network
Base rack
Terminal server 2
Terminal server 1
Space for C3508
Compute
engine 4
Compute
engine 3
Compute
engine 2
Compute
engine 1
Disk array 2
(optional)
Disk array 1

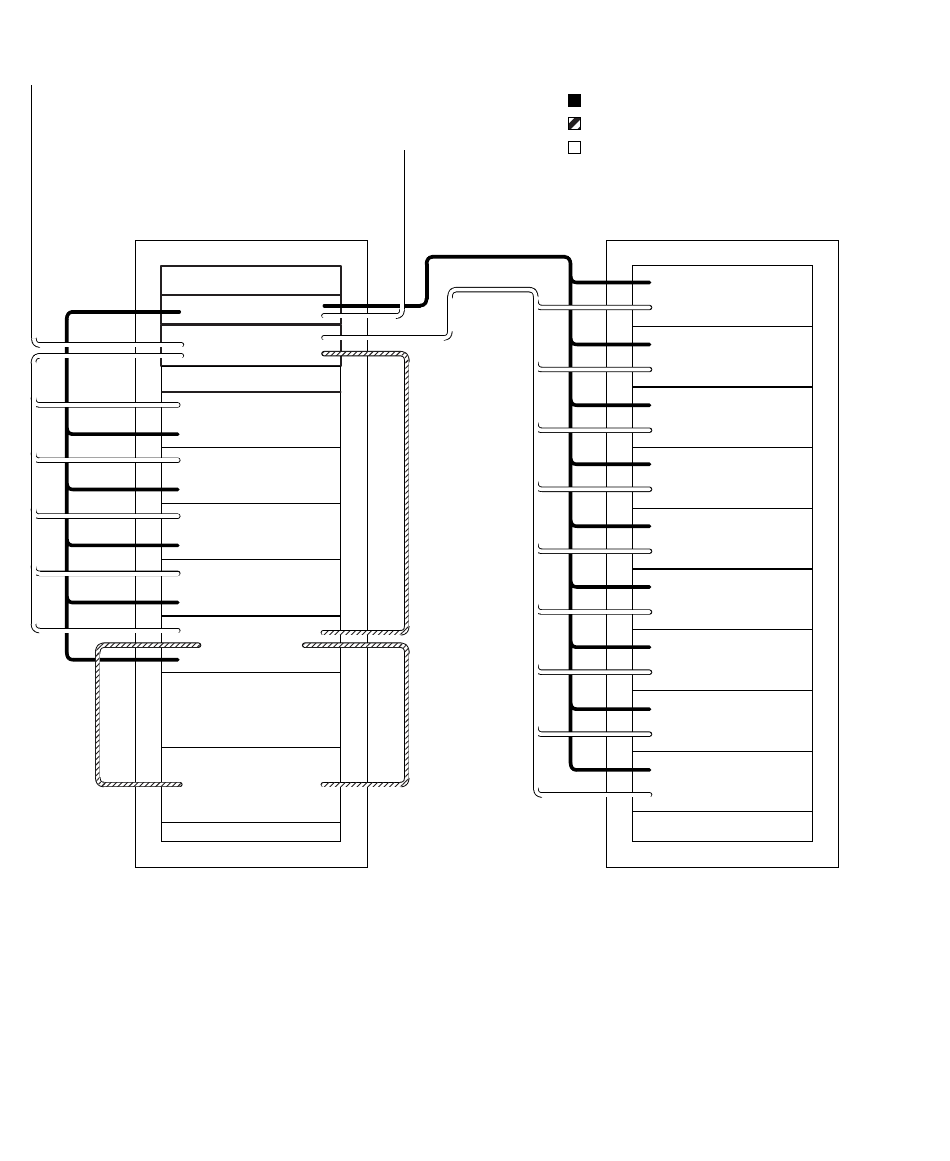

FIGURE 5
10 Sun Technical Compute Farm Read Me First • December 2000
Building
network
C3524
File
server
Small Farm Configuration
100 BaseT cabling
Fiber Channel cabling
Serial cabling
Expansion rack
Compute
engine 9
Compute
engine 8
Compute
engine 7
Compute
engine 6
Compute
engine 5
Compute
engine 4
Compute
engine 3
Compute
engine 2
Compute
engine 1
