- Page 1 EVB-VIC3DA Teseo-VIC3DA Evaluation Board Quick Start Guide...
- Page 2 Quick start guide - contents Introduction to EVB-VIC3DA Connect and start EVB-VIC3DA Teseo-Suite configuration and startup Documents & related resources...
- Page 3 Quick start guide - contents Introduction to EVB-VIC3DA Connect and start EVB-VIC3DA Teseo-Suite configuration and startup Documents & related resources...

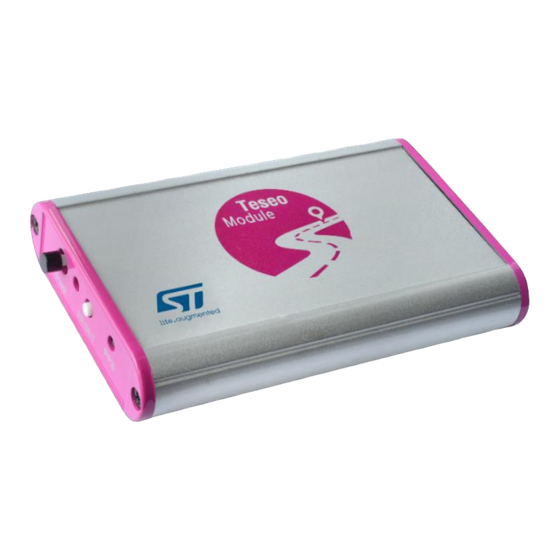

- Page 4 Introduction to EVB-VIC3DA EVB-VIC3DA evaluation board is a complete standalone evaluation platform for Teseo-VIC3D/DA Dead- Reckoning GNSS module Top view Teseo-VIC3DA module is an easy-to-use Dead-Reckoning Global Navigation Satellite System (GNSS) stand-alone module, embedding Front panel Teseo III single die stand-alone...
- Page 5 EVB-VIC3DA – front and rear panels … Yellow LED IO-ODO connector Front panel PWR Red LED PPS Green LED SMA Antenna connector Rear panel … Yellow LED SD/MMC card UART/USB connector Reset Button On/Off Switch button...
- Page 6 Quick start guide - contents Introduction to EVB-VIC3DA Connect and start EVB-VIC3DA Teseo-Suite configuration and startup Documents & related resources...
- Page 7 I/O-ODO Connector signals I/O ODO Connect is a 14 pins connector providing the signal reported in table 12V_CAR_BAT INT-1 I2C_SCD VBAT 3.3V_GNSS 12V_CAR_BAT WHELLTICK INT-2 I2C_SDA VBAT_VIC3 3.3V_VIC...
- Page 8 Connect and start EVB-VIC3DA Connect the USB cable between PC USB and the EVB-VIC3DA UART port Connect GNSS Antenna to the SMA input connector Press the power on button Verify that the RED Power LED is ON...
- Page 9 Quick start guide - contents Introduction to EVB-VIC3DA Connect and start EVB-VIC3DA Teseo-Suite configuration and startup Documents & related resources...
- Page 10 Install Teseo-Suite and VCP driver Teseo-Suite is a powerful PC Tool able to manage the EVB-VIC3DA evaluation board Download and install the Teseo-Suite from www.st.com Download and install the Silicon Labs VCP Driver from www.silabs.com...
- Page 11 Teseo-Suite - start • During the application start-up, the Configuration Session panel is shown • Click the ‘Add Device’ button to add a new entry...
- Page 12 Teseo-Suite – configuration device • Set the Hardware type: STA8090 Set the GNSS Device Name: EVB-VIC3DA Enable Add Control Port Set the Protocol: NMEA Set the Port Name: according to the discovered on the PC Configure the port as following table: Baud rate Data bits Stop Bits...
- Page 13 Teseo-Suite – connect the device In the Configuration Session panel a new entry (row) is shown Enable Connect Ctrl port Click the Connect button...
- Page 14 Teseo-Suite – device working In the summary panel, the GNSS EVB-VIC3DA state is reported Click on the NMEA output window to inspect the NMEA stream...
- Page 15 Teseo-Suite – inspect device The NMEA panel is shown Decoding The NMEA Stream can be seen and inspect...
- Page 16 Teseo Suite – extra features Click Help menu to access User-Manual User-Manual reports all information needed...
- Page 17 Enjoy with EVB-VIC3DA Now you can enjoy the EVB-VIC3DA and explore all its features with Teseo-Suite...
- Page 18 Quick start guide - contents Introduction EVB-VIC3DA Connect and start EVB-VIC3DA Teseo-Suite configuration and startup Documents & related resources...
- Page 19 Documents & related resources All documents are available on: www.st.com • Teseo-VIC3DA: Webpage • Data-sheet • Hardware User Manual • Software User Manual • EVB-VIC3DA: Webpage • Datasheet • User Manual • Quick Start Guide • Teseo-Suite: Webpage • Datasheet •...
