- Page 1 EVB-LIV3F Teseo-LIV3F Evaluation Board Quick Start Guide...
- Page 2 Quick start guide - Contents Introduction to EVB-LIV3F Connect and start EVB-LIV3F Teseo-Suite configuration and startup Documents & related resources...
- Page 3 Quick start guide - Contents Introduction to EVB-LIV3F Connect and start EVB-LIV3F Teseo-Suite configuration and startup Documents & related resources...

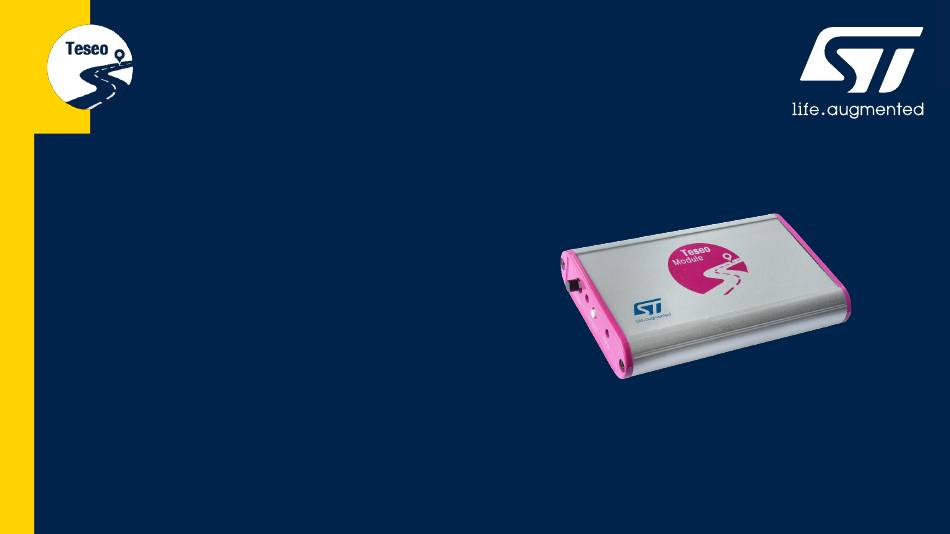

- Page 4 Introduction to EVB-LIV3F • EVB-LIV3F evaluation board is a complete standalone evaluation platform for Teseo-LIV3F Tiny GNSS module Top view • Teseo-LIV3F module is an easy- to-use Global Navigation Satellite System (GNSS) stand-alone module, embedding Teseo III single die stand-alone positioning receiver IC...
- Page 5 EVB-LIV3F – front and rear panels On/Off Switch button Front panel PWR Red LED Reset button PPS Green LED Current measure connector Rear panel SMA Antenna connector I2C connector UART/USB connector...
- Page 6 Quick start guide - Contents Introduction to EVB-LIV3F Connect and start EVB-LIV3F Teseo-Suite configuration and startup Documents & related resources...
- Page 7 Connect and start EVB-LIV3F Connect the USB cable between PC USB and the EVB-LIV3F UART port Connect GNSS Antenna to the SMA input connector Press the power on button Verify that the RED Power LED is ON...
- Page 8 Quick start guide - Contents Introduction to EVB-LIV3F Connect and start EVB-LIV3F Teseo-Suite configuration and startup Documents & related resources...
- Page 9 Install Teseo-Suite and VCP driver Teseo-Suite is a powerful PC Tool able to manage the EVB-LIV3F evaluation board • Download and install the Teseo-Suite from www.st.com • Download and install the FTDIchip VCP Driver from www.ftdichip.com...
- Page 10 Teseo-Suite - Start During the application start-up, the Configuration Session panel is shown Click the ‘Add Device’ button to add a new entry...
- Page 11 Teseo-Suite – Configuration device Set the Hardware type: STA8090 Set the GNSS Device Name: EVB-LIV3F Enable Add Control Port Set the Protocol: NMEA Set the Port Name: according to the discovered on the PC Configure the port as following table:...
- Page 12 Teseo-Suite – Connect the device In the Configuration Session panel a new entry (row) is shown Enable Connect Ctrl port Click the Connect button...
- Page 13 Teseo-Suite – Device working In the summary panel, the GNSS EVB-LIV3F state is reported Click on the NMEA output window to inspect the NMEA stream...
- Page 14 Teseo-Suite – Inspect device The NMEA Decoding panel is shown The NMEA Stream can be seen and inspect...
- Page 15 Teseo-Suite – Extra features Click Help menu to access User-Manual User-Manual reports all information needed...
- Page 16 Have fun with EVB-LIV3F • Now you can try the EVB-LIV3F and explore all its features with the Teseo-Suite...
- Page 17 Quick start guide - Contents Introduction EVB-LIV3F Connect and start EVB-LIV3F Teseo-Suite configuration and startup Documents & related resources...
- Page 18 Documents & related resources All documents are available on: www.st.com • Teseo-LIV3F: Webpage • Data-sheet • HW and SW User Manual • EVB-LIV3F: Webpage • Datasheet • User Manual • Quick Start Guide • Teseo Suite: Webpage • Datasheet • Install program...
