DX Engineering DXE-OCF-KIT Manual page 7

Assembling a Off Center Fed (OCF) Dipole
Center-T and Balun Support
The patented (US Patent No. D744,459) DXE-WA-BMB Center-T and Balun support has pre-drilled holes
for attachment of the wire elements and pre-drilled holes for a support clamps. Also included are the patented
(US Patent No. D534,905) End Insulators.
Qty
1 DX Engineering Balun & Wire Antenna Bracket
2 DX Engineering End Insulators
6-32 x 3/4" long Stainless Steel Hex Head Bolts
4
8 #6 Stainless Steel Flat Washers
4 6-32 Nyloc Hex Nuts

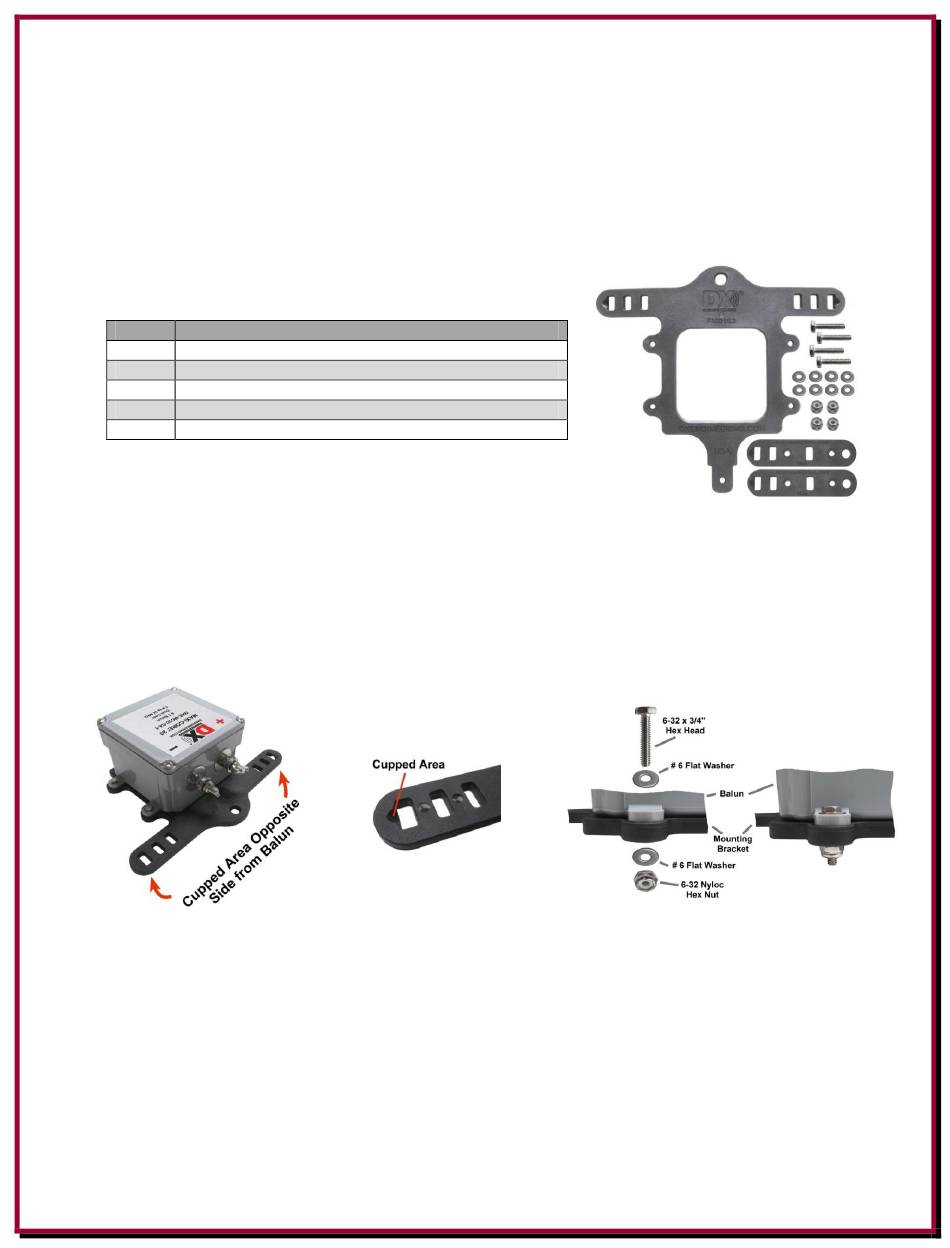

Using the included Stainless Steel Hardware, mount the included DX Engineering Maxi-Core
Balun - part number DXE-MC20-C4-1 as shown below. Note: When installing stainless steel hardware, it is
highly recommended that JTL-12555 Jet Lube SS-30 be used to prevent thread galling.
Mount the Balun on the side opposite the cupped areas of the dipole wire guides.
Parts List - DXE-WA-BMB
Page - 7 -
®
