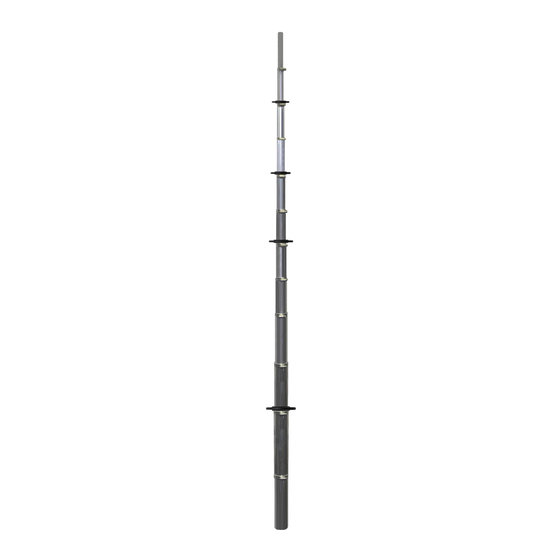

65 Foot Telescoping
Aluminum Antenna Tubing Kit
with Guy Rings
DXE-ATK65A
DXE-ATK65A-INS-Rev 1
© DX Engineering 2016
1200 Southeast Ave. - Tallmadge, OH 44278 USA
Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200
Fax: (330) 572-3279 ∙ E-mail:
DXEngineering@DXEngineering.com
- 1 -
Advertisement
Table of Contents
Related Manuals for DX Engineering DXE-ATK65A
Summary of Contents for DX Engineering DXE-ATK65A

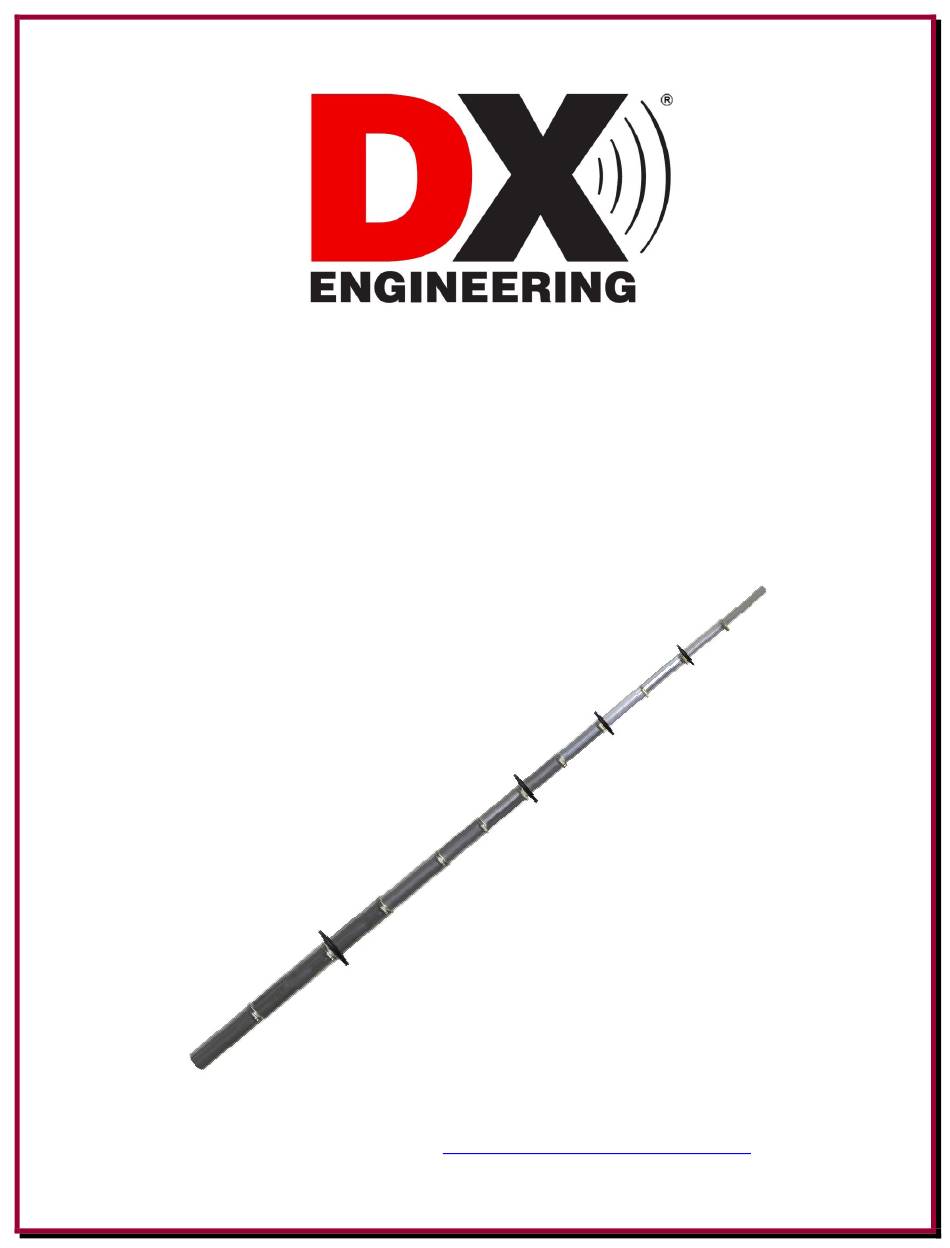

- Page 1 65 Foot Telescoping Aluminum Antenna Tubing Kit with Guy Rings DXE-ATK65A DXE-ATK65A-INS-Rev 1 © DX Engineering 2016 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200 Fax: (330) 572-3279 ∙ E-mail: DXEngineering@DXEngineering.com...
- Page 2 DX Engineering Type 6063-T832 drawn - not extruded - aluminum tubing in three foot and six foot lengths with four slits at one end for fast reliable assembly. In this kit, the 2.125" OD tubing section has slits at both ends and the 2"...
- Page 3 1/2 in. thick center hole shoulder, these Guy Rings simply slide over their respective tubing size and seat firmly against the top of the larger tubing section below. 5 Rings per set: Fits tubing sizes 2”, 1-1/5”, 1-1/4”, 1” and 3/4”. The 3/4” Guy Ring will not be used with the DXE-ATK65A. Assembly For a full 65 foot length, the aluminum tubing sections are assembled starting at the bottom 2"...
- Page 4 Deburring is a finishing method used in manufacturing. Our aluminum tubing is machine cut on both ends and machine slit on one end. Although DX Engineering manufactured aluminum tubing is deburred, you should further assure that there are no ragged edges or protrusions.
- Page 5 Locate the hardware pack containing the eleven stainless steel clamps. Also locate the Guy Ring Set - You can use 4 of the guy rings from the Guy Ring kit with the DXE-ATK65A (3/4” Guy Ring is not used). Slide the Guy Rings over the tubes along with the clamps over each aluminum section as shown in Figure 2 before putting the tubing sections together.
- Page 6 The guying kit is ideal for fixed or portable installations. Figure 3 shows the suggested guying scheme for the DXE-ATK65A assembly when used as a vertical antenna. Your results may vary since it depends on the length (height) of your particular installation.
- Page 7 Figure 3 - Suggested Guying - 7 -...
-
Page 8: Technical Support
Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
