Project Timber Evolution My Den 16x8 Building Instructions page 7

16 Floor Stages
Side
Back

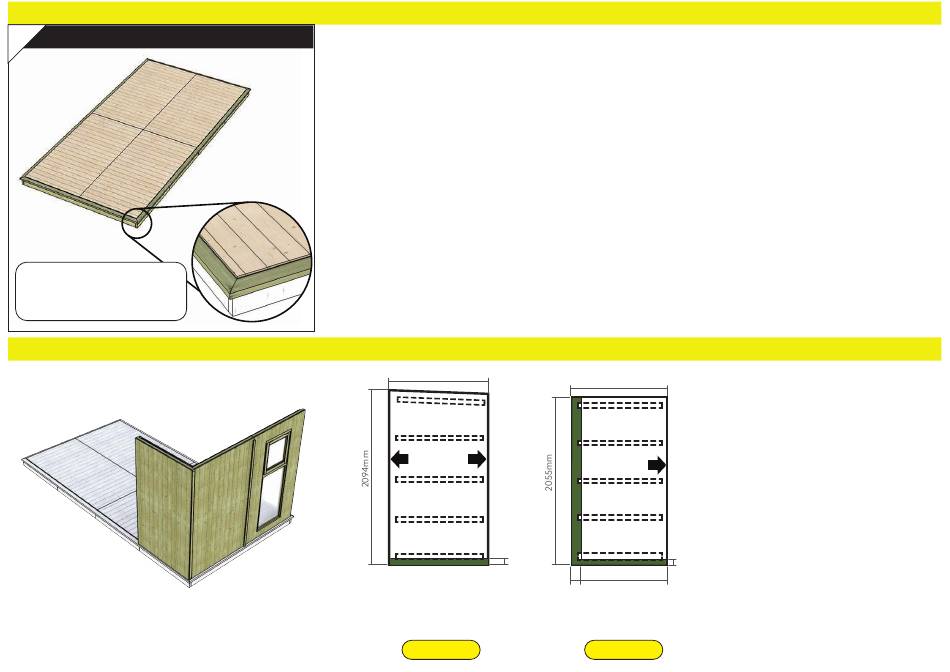

Place the floor assembly
inside the plinth and
base module.
Rear
Front
Wall Panels Section Stages
Side
(LEFT)
Left Gable Panel (LOW)
Floor Section Stages
1220mm
Lining Flush
16mm
74mm
Back Panel LEFT
Diagram
ID: PT25533
1220mm
Parts List required:
1. Left Gable Panel - LOW (1)
2. Back Left - Plain Panel (1)
Lining Flush
3. Window Opening
Left Gable Panel - HIGH (1)
4. Gable Cloaking Strip (1)
60mmx16mmx2050mm
16mm
1146mm
Diagram
ID: PT25544
