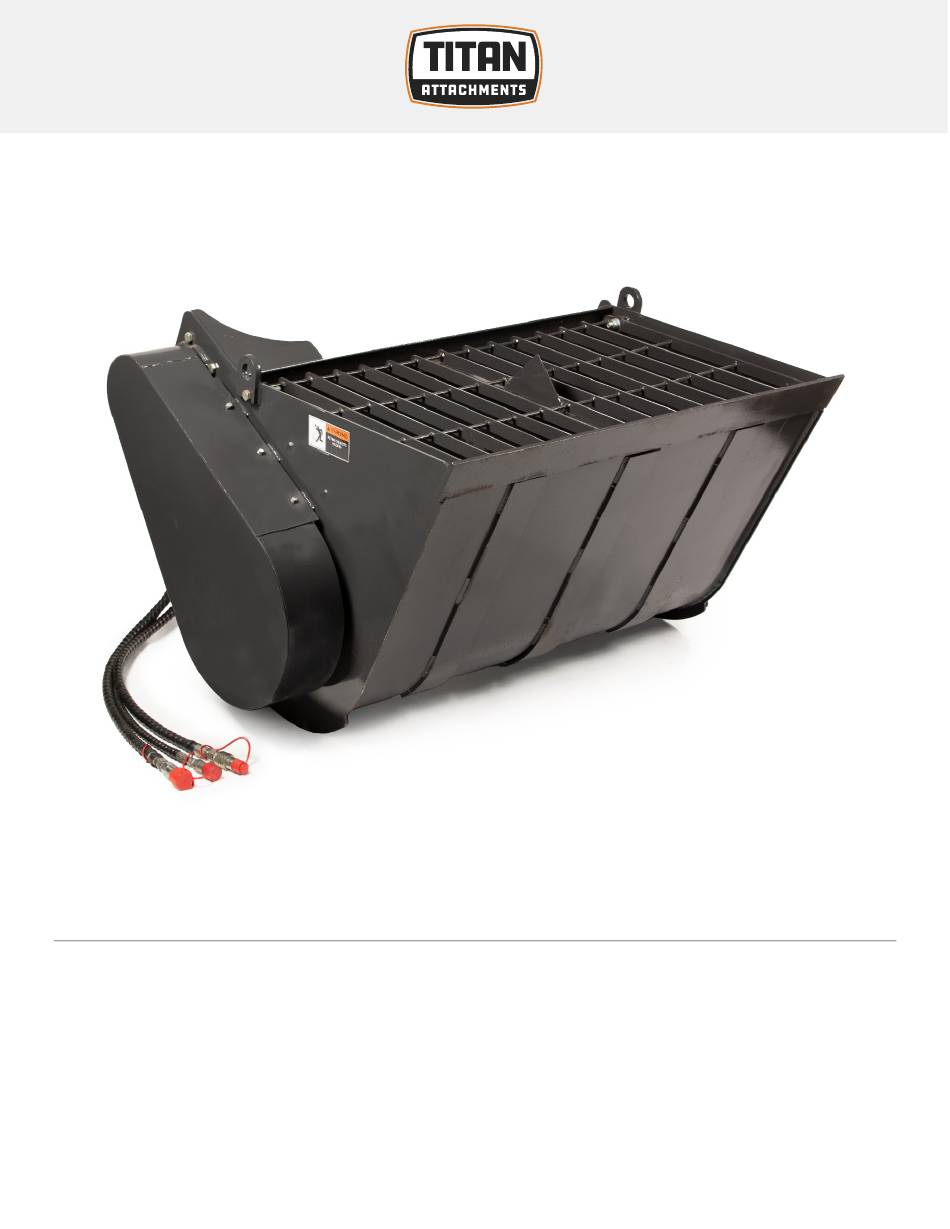

OWNER'S MANUAL
MPN(s): 177CBUCKET
SKU(s): 191505
UPC(s): 84000920570

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 177CBUCKET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan Attachments 177CBUCKET

Summary of Contents for Titan Attachments 177CBUCKET

  • Page 1 OWNER’S MANUAL MPN(s): 177CBUCKET SKU(s): 191505 UPC(s): 84000920570...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS • Before the installation, read the manual in its entirety. • Review all safety decals and warnings. • All operations performed with the concrete mixer bucket should comply with all occupational safety regulations and other professional guidelines. • Before using the concrete mixer bucket, o Understand concrete mixer bucket’s usage requirements.

  • Page 3: Product Structure

    PRODUCT STRUCTURE IMPORTANT PARTS OF STRUCTURE Gear Cover Hydraulic Hoses Motor Bucket Auger Screen Bearing Seat Discharge Chute...

  • Page 4: Technical Performance

    TECHNICAL PERFORMANCE...
  • Page 5 OPERATION INSTRUCTIONS TO ATTACH THE IMPLEMENT TO THE SKID STEER 1. Slowly drive the skid steer forward 2. Attach the hoses to the skid steer and bucket. a. NOTE: A CASE DRAIN PORT IS REQUIRED FOR THIS IMPLEMENT. 3. Connect the skid steer’s mount plate onto the implement’s mount plate.
  • Page 6 TO OPERATE THE IMPLEMENT 1. Turn on the skid steer 2. Properly adjust the direction and angle of the bucket for loading. a. The bucket should be set on the ground. b. The bucket’s bottom should be parallel with the ground. 3.
  • Page 7 1. The user may also use the front of the bucket by lifting the screen up and lowering the bucket.
  • Page 8 TO FINISH OPERATING THE BUCKET 1. Turn off the skid steer 2. Clean any debris or left-over material inside or on the bucket.

  • Page 9: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS BEFORE EVERY USE AND AFTER EACH USE 1. Thoroughly clean out all soil, dirt, and grease. 2. Check the implement for any signs of wear or damage. 3. Repair the implement as issues arise. a. Check all bolts, nuts, and screws. Tighten any loose bolts, nuts, and screws. 4.

  • Page 10: Storage Instructions

    AFTER EVERY 3 MONTHS The gear chain should be lubricated. The gear cover will need to be removed like the Grease Point 2 maintenance. STORAGE INSTRUCTIONS 1. To store, we recommend placing equipment on wooden platform and not directly on ground. 2.
  • Page 11 PARTS DIAGRAM / EXPLODED VIEW PARTS DIAGRAM 1 – CONCRETE MIXER BUCKET ASSEMBLY...
  • Page 12 PARTS DIAGRAM 2 – AUGER ASSEMBLY...
  • Page 13 PARTS DIAGRAM 3 – DISCHARGE CHUTE ASSEMBLY...
  • Page 18 This concludes the 177CBUCKET Owner’s Manual. If applicable to your product, make sure to tighten all nut-and-bolt combinations before use. Enjoy! DISCLAIMER This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full...
