SETUP PROCEDURE AND ADJUSTMENT OF THE CORN HEAD
6.6.

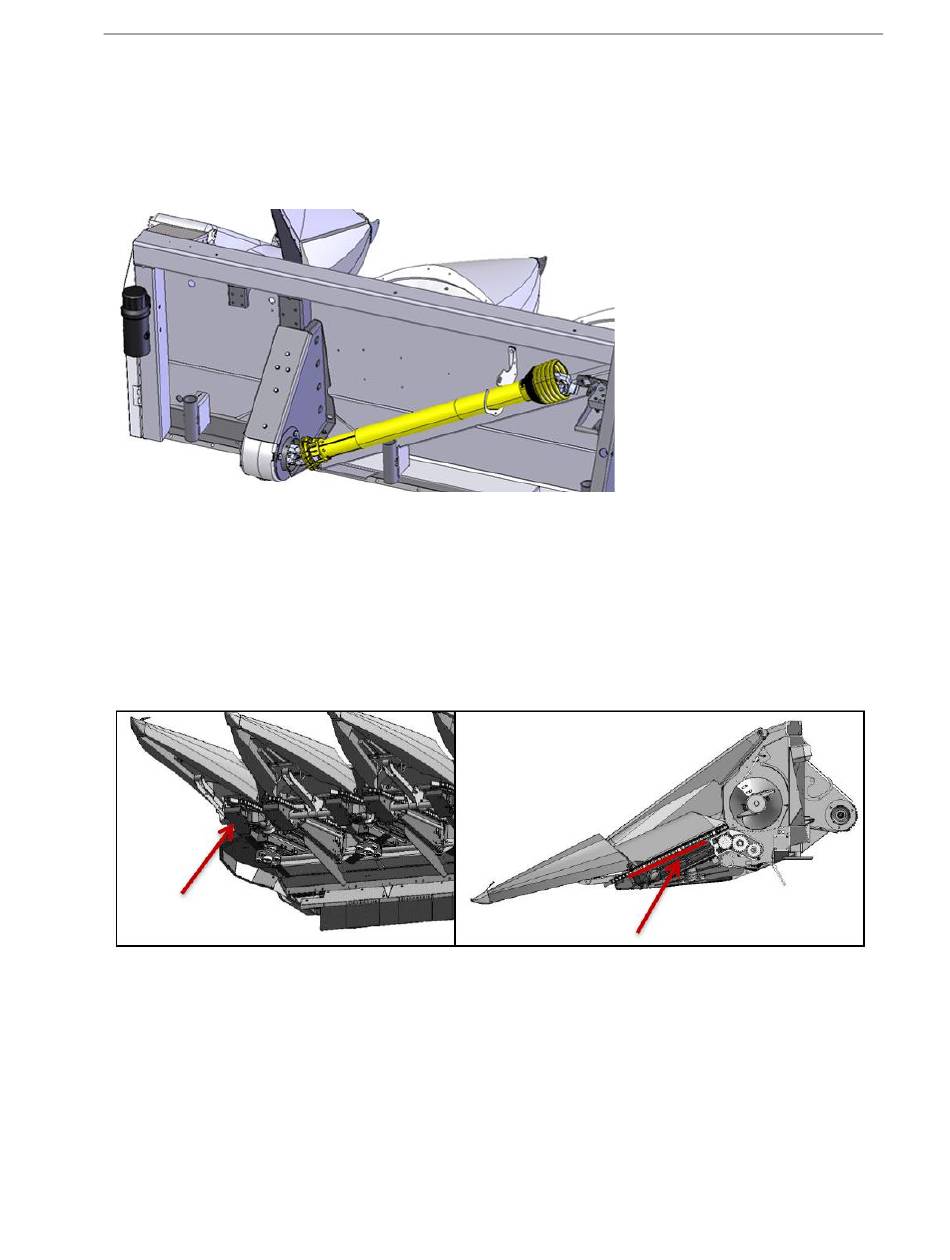

Header Drive Shafts

The Walterscheid brand drive shafts require lubrication every 250 operating hours.
Remove the shaft annually and grease it according to the label instructions provided by the
shaft manufacturer on the shaft cover.
6.7

Adjustment of the corn head

6.7.1

Header angle adjustment

Lower front of row unit on a 10 cm x cm (4X4") block with combine feederhouse. (arrow
left)
The distance between the front of row unit and ground will be 10 cm or 4". Measure deck
plate angle and adjust feedhouse angle until 23 degrees is achieved. (arrow right)
39
