SignaMax I-200 Series Quick Start Manual

I-200 Series Industrial 10G PoE++
Media Converter
Unpack the Device and Check Contents
Part RJ-45 PoE
Number Ports Ports
MI20010 1 1
DIN-Rail Mounting Kit - one bracket
and two screws.
Wall Mounting Kit - two brackets and
four screws
Documentation—Quick Start Guide
(this document) and Warranty Card
Note: Additional documentation can be obtained from
www.signamax.com
Warnings and Cautionary Messages
Warning: This product does not contain any serviceable user
!
parts.
Warning: Installation and removal of the unit must be carried out
by qualified personnel only.
Warning: When connecting this device to a power outlet, connect
the field ground lead on the tri-pole power plug to a valid earth
ground line to prevent electrical hazards.
Warning: This switch uses lasers to transmit signals over fiber
optic cable. The lasers are compliant with the requirements of
a Class 1 Laser Product and are inherently eye safe in normal
operation. However, you should never look directly at a transmit
port when it is powered on.
Warning: When selecting a fiber SFP device, considering safety,
please make sure that it can function at a temperature that is not
less than the recommended maximum operational temperature of
the product. You must also use an approved Laser Class 1 SFP
transceiver.
!
Caution: Wear an anti-static wrist strap or take other suitable
measures to prevent electrostatic discharge when handling this
equipment.
Caution: Do not plug a phone jack connector in the RJ-45 port.
This may damage this device.
Caution: Use only twisted-pair cables with RJ-45 connectors that
conform to FCC standards.
w w w. s i g n a m a x . c o m
9 9 9 N . W. 1 59 th D ri v e
M i a m i , F L 3 3 1 6 9
T e l : 8 0 0 . 4 4 6 . 2 3 7 7
Quic k Start Gu id e
SFP
Ports
1
COPYRIGHT 2007 SIGNAMAX, INC. ■ ALL RIGHTS RESERVED ■ SPECIFICATIONS SUBJECT TO CHANGE

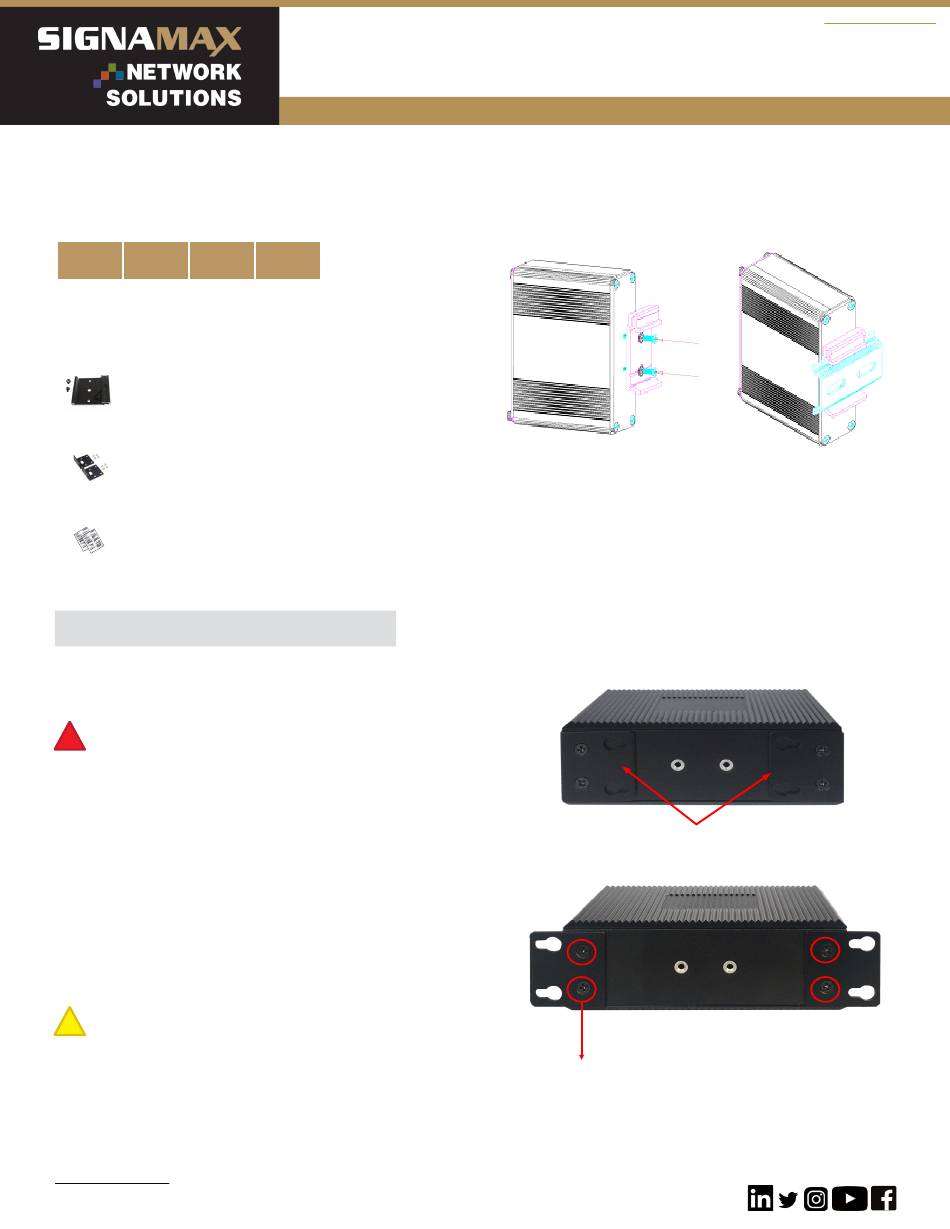

Mount the Media Converter
DIN-Rail Mount
1. Screw the DIN-Rail bracket to the Media Converter
2. Insert the top of the DIN-Rail bracket to the DIN-Rail track.
3. Pull down the DIN-Rail bracket to the DIN-Rail track and check if it is
mounted tightly on the DIN-Rail track.
Wall Mount
Hangers for Installation
Tighten the screws (screw standard:M3*4)
1. Remove the four mounting screws on the rear panel
2. Turn around the 2 brackets and reinsert the the four mounting screws
www.signamax.com
Rear Panel
Rear Panel
QSG-SI20010_A-3-23
