Summary of Contents for Ingenico group AXIUM DX4000

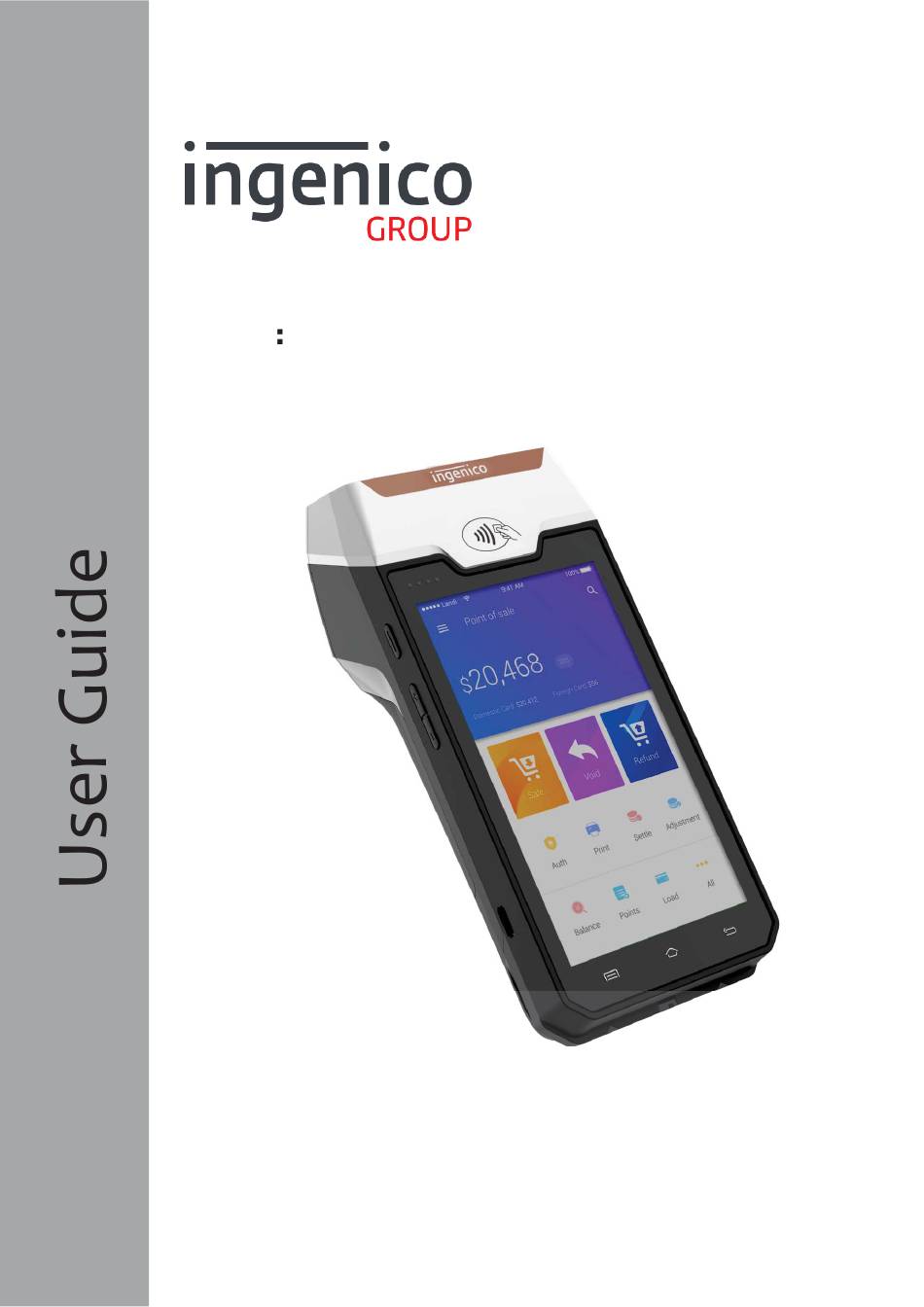

- Page 1 Model AXIUM DX4000 WWW.ingenico.com 13-17 Rue Pages, 92150 Suresnes , Hauts-de-Seine, FRANCE/ (T)+33(0)1 58 01 80 00 / (F)+33 (0)1 58 01 91 35 Ingenico-SA au capital de 47 656 332 / 317 218 758 RCS Nanterre...
-
Page 2: Table Of Contents
Contents Introduction ........................3 Presentation ........................3 Content of the box ....................3 Overview of AXIUM DX4000 ..................4 Keypad Functions ...................... 5 Touch Panel ....................... 5 Use of the terminal ......................5 Power on/Power off the terminal ................5 Reading cards ...................... -
Page 3: Introduction
1. Introduction We hope that you will be fully satisfied with your new AXIUM DX4000 terminal. Read thisguide to understand and make the best use of your terminal. It presents you the necessary information about use,installation,maintenance,safety security recommendations. WARRANTY/SECURITY Use only the power supply included with the product to ensure best performance and safety.Maintenance should only be provided by Ingenico authorized technician. -
Page 4: Overview Of Axium Dx4000

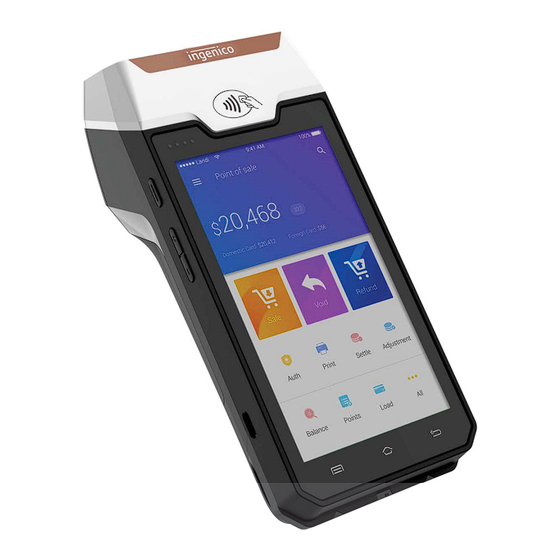

2.2 Overview of AXIUM DX4000 1. Contactless landing zone 2. LEDs for Contactless Card 3. Power Key 4.Volume Keys 5.Battery cover 6.USB Type-C connector 7. Magnetic card reader 8. Smart card reader 9. LCD and touch screen 10.Flash 11. Rearcamera 12. -
Page 5: Keypad Functions
Menu Powerbutton Volume 2.4 Touch Panel The AXIUM DX4000 is equipped with touch panel that allows you capture functions and menus by your finger. 3. Use of the terminal ADVICE Before using the terminal, always check if the roll of paper is present 3.1 Power on/Power off the terminal... -
Page 6: Reading Cards
If the battery is empty, the terminal automatically shuts off. Abnormal power off: When the device works abnormally, for example, it is crashed and no actions menu popped out while pressing the power button, pleaselong-press the power button for 8s, the device will be automatically powered off. -
Page 7: Usbtype-C
3.3 USBtype-C There is a USB type-C connector on the left side of the terminal. The connector manages Host and Slave connections. 4. Installation 4.1 Recommendations Operating conditions Ambient temperature* From -10 to+50 Max relative humidity From 10%to 90%, Non-condensing (*)Excluding battery charging Battery charging conditions Ambient temperature... - Page 8 Close the trapdoor. ADVICE AXIUM DX4000 is equipped with a dual SIM slot. When using two SIM cards,it is recommended to insert the bottom one first,then the top one. When using only one SIM card, it is recommended to insert SIM1 slot (bottom).
-
Page 9: Paper Roll
ADVICE SIM and SAM cards share the same form factor , please do be careful to the SIM card socket position. 4.2.2 MicroSD Memory Card WARNING Switch off the terminal before opening the trapdoor. MicroSD connector is located inside the terminal, in a closed compartment. -
Page 10: Battery
For best product performance,only use heat sensitized paper approved by Ingenico. 4.3.2 Installing paper roll Open the paper cover by lifting the catch located at the top of AXIUM DX4000 and pull the cover to the rear of the terminal. -
Page 11: Visual Impaired Accessory
Connect the power adapter to the power supply mains network. Check the charging status on the top of the screen(it means battery charging). 4.4.2 Installing the battery WARNING Check that the terminal is not connected to the main electric network. Turn your terminal and unclip the battery trapdoor by pushing the clips as shown with the arrow on the picture. -
Page 12: Recommendations
Disconnect the AXIUM DX4000 power supply block adapter from the electrical mainsnetwork. Lithium cell The AXIUM DX4000 is fitted with an internal lithium cell which should only be accessed by a qualified technician. Battery AXIUM DX4000 is fitted with battery specially designed for this terminal. - Page 13 Electrical power supply network The electrical outlet must meet the following criteria: Must be installed near the equipment and easily accessible Do not short-circuit the battery. Do not attempt to open the battery container. The power supply label contains seventeen symbols: CCC (China Comoulsory Certificate) Mark The RegulatoryCompliance Mark(RCM) International Efficiency MarkingProtocol (Energy Star Level 6)
- Page 14 10 Years China RoHS symbol BSMI(Taiwan) PSE Mark(Japan) Recycle in accordance with the waste electronic & electrical equipment directive Underwriters Laboratories Inc (US Compliance) Made from recyclable material Low density version of Polyethylene (LDPE) Chlorinated Polyethylene ( CPE) Risk of explosion if the battery is incorrectly replaced or is placed in a fire Dispose of batteries at a hazardous waste collection site or recycling facility...
-
Page 15: Security Of Your Terminal
SAM/SIM1/SIM2Readers compartment The trapdoor for battery, SAM//SIM1/SIM2, readers located underneath the terminal, must be in place during the normal operation of the terminal.See sections “Installing modules” and “Installing the battery”. On airplanes Your terminal must be switched off by removing the battery pack. Remove the battery from the terminal when on an airplane. -
Page 16: Fixed Installation
You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy.The terminal must never be put in or left at a location where it could be stolen or replaced by another device. -
Page 17: Cleaning The Terminal
50cm. 6. Standard CE MARKING The CE marking indicates AXIUM DX4000 complies with the requirements of European Directive 2014/53/EUon Radio Equipment for: The protection of the health and the safety of the user and any otherperson. The protection requirementswithrespect to electromagnetic compatibility. - Page 18 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 19: Troubleshooting
Environment (WEEE, Batteries and packaging) This product is labeled in accordance with European Directives 2012/19/EU concerning Waste Electrical and Electronic Equipment (WEEE) and 2013/56/EC concerning Batteries and Accumulators. Those provisions are requiring producers and manufacturers to become liable for take-back, treatment and recycling upon end of life of equipment and batteries. - Page 20 If there is still problem, please contact our customer service center. This Document is Copyright © 2020 by ingenico Group. ingenico retains full copyright ownership, rights and protection in all material contained in this document. The recipient...
