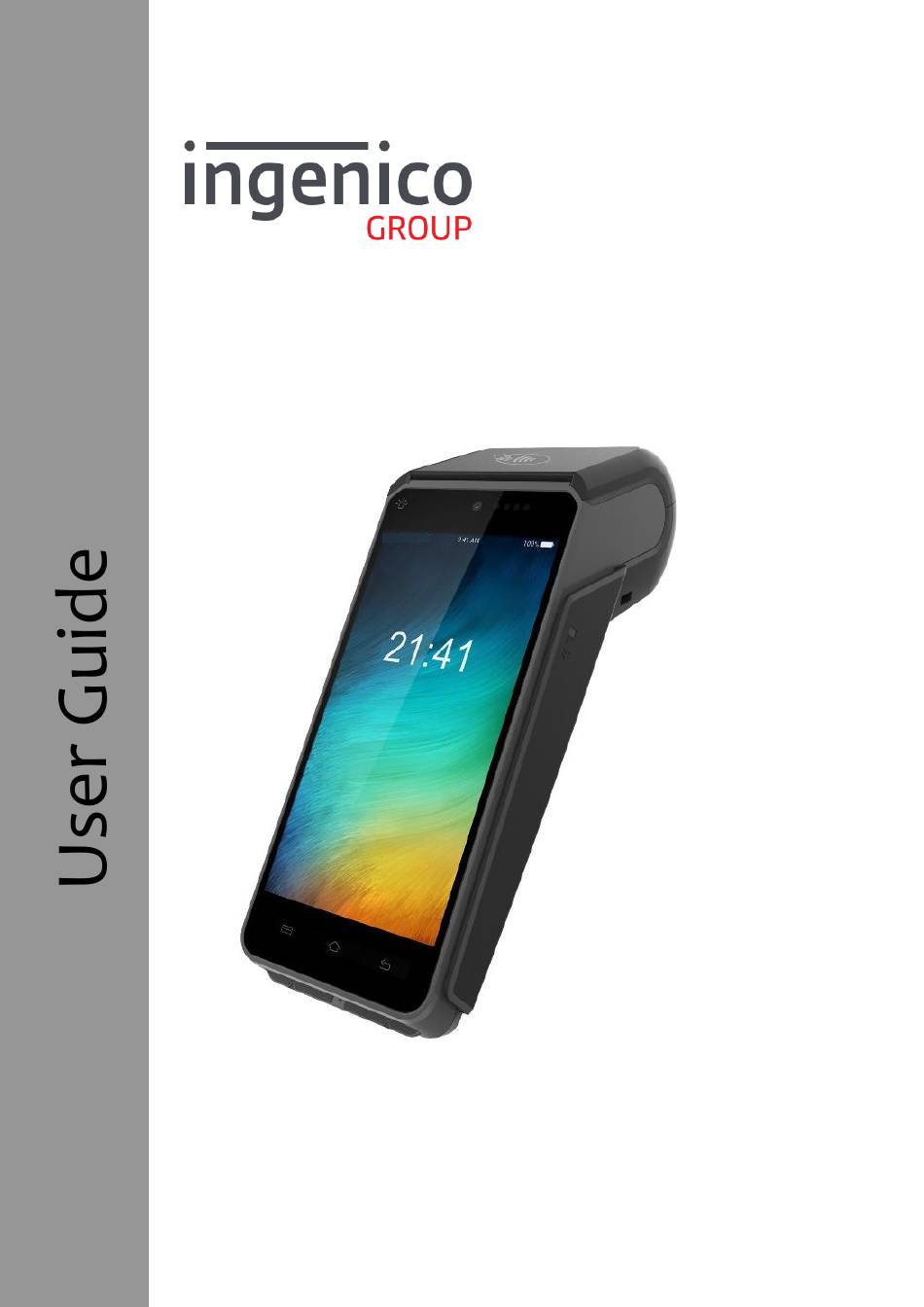

- Page 1 Model：AXIUM DX8000 WWW.ingenico.com 28-32,Boulevard de Grenelle, 75015 PARIS - FRANCE/ (T)+33(0)1 58 01 80 00 / (F)+33 (0)1 58 01 91 35 Ingenico-SA au capital de 47 656 332 / 317 218 758 RCS Nanterre...
- Page 2 1. Introduction We hope that you will be fully satisfied with your new AXIUM DX8000 terminal. Read this guide to understand and make the best use of your terminal. It presents you the necessary information about use, installation, maintenance, safety and security recommendations.
- Page 3 2. Presentation 2.1 Content of the box AXIUM DX8000 terminal unit equipped with a paper roll Power adapter A battery pack This user guide WARNING/ATTENTION The power supply unit provided with your equipment is specially designed for ingenicoAXIUM DX8000 terminal.
- Page 4 2.2 Overview of AXIUM DX8000 1. Contactless landing zone 2. LCD and touch screen 3. Smart card reader 4. Buzzer 5. Magnetic card reader 6. Easy Loading Printer 7. Power Key 8. Volume Keys 9. Battery cover 10. USB Type-C connector 11.Front scanner...
-
Page 5: Keypad Functions
If the terminal has a 5.5 inchscreen, there are three capacitive keys at the bottom of the screen,Menu,Homeand Back keys. 2.4 Touch Panel The AXIUM DX8000 is equipped with touch panel that allows you capture functions and menus by your finger or use a stylus. -
Page 6: Use Of The Terminal
3. Use of the terminal ADVICE Before using the terminal, always check if the roll of paper is present 3.1 Power on/Power off the terminal To power on: Make sure the terminal battery is correctly installed and Press <Power> button for about 1s until the display is turned up. To power off: Press <Power>... - Page 7 3.2 Reading cards Magnetic stripe card The card can be read bi-directionally, with the stripe facing the terminal. Use a regular movement in order to ensure a reliable card reading. Contactless card Bring the card firmly up to the active zone. Keep the card close to the reader during the transaction.
- Page 8 3.3 Usage of Front Camera The brightness of the mobile phone must be set to the brightest or not less than the 2/3 of the maximum brightness. The screen of the mobile phone must face the front scanning head above the terminal screen and keep itstationary.
-
Page 9: Installation
4. Installation 4.1 Recommendations Operating conditions Ambient temperature* From -10℃ to +50℃ Max relative humidity From 10%to 90%, Non-condensing (*)Excluding battery charging Battery charging conditions Ambient temperature From 0℃ to +40℃ Storage conditions Ambient temperature From -20℃to +70℃ Max relative humidity From 5% to 90%, Non-condensing 4.2 Installing modules 4.2.1 SAM1/SAM2... -
Page 10: Microsd Memory Card
Close the trapdoor. ADVICE AXIUM DX8000 is equipped with a dual SAM slot. When using two SAM cards, it is recommended to insert the bottom one first, then the top one. When using only one SAM card, it is recommended to insert SAM1 slot (bottom). -
Page 11: Installing Paper Roll
Pour de meilleures performances, n’utiliser que du papier approuvé par Ingenico. 4.3.2 Installing paper roll Open the paper cover by lifting the catch located at the top of AXIUM DX8000 and pull the cover to the rear of the terminal. ... -
Page 12: Charging The Battery
ADVICE If you insert a new R40 paper roll, tear off the first length (one complete turn to avoid printing on adhesive footprint). WARNING/ATTENTION Switch off the terminal prior to installing a paper roll. Use only paper approved by Ingenico. The use of no-approved paper is likely to damage the printer of your terminal. - Page 13 4.5 Visual Impaired Accessory Install the VI accessory on the screen. Take out the VI accessory. Store the VI accessory. Put the VI accessory flat on the battery.
-
Page 14: Lithium Cell
Powering down the AXIUM DX8000 Disconnect the AXIUM DX8000 power supply block adapter from the electrical mainsnetwork. Lithium cell The AXIUM DX8000 is fitted with an internal lithium cell which should only be accessed by a qualified technician. Battery ... -
Page 15: Electrical Power Supply Network
Electrical power supply network The electrical outlet must meet the following criteria: Must be installed near the equipment and easily accessible Do not short-circuit the battery. Do not attempt to open the battery container. The power supply label contains seventeen symbols: CCC (China Comoulsory Certificate) Mark The Regulatory Compliance Mark (RCM) International Efficiency Marking Protocol (Energy Star Level 6) - Page 16 BSMI(Taiwan) PSE Mark(Japan) Recycle in accordance with the waste electronic & electrical equipment directive Underwriters Laboratories Inc (US Compliance) Made from recyclable material Low density version of Polyethylene (LDPE) Chlorinated Polyethylene (CPE) Risk of explosion if the battery is incorrectly replaced or is placed in a fire Dispose of batteries at a hazardous waste collection site or recycling facility...
-
Page 17: Explosion Areas
SAM1/SAM2 Readers compartment The trapdoor for battery, SAM1/SAM2, readers located underneath the terminal, must be in place during the normal operation of the terminal. See sections “Installing modules” and “Installing the battery”. On airplanes Your terminal must be switched off by removing the battery pack. Remove the battery from the terminal when on an airplane. -
Page 18: Fixed Installation
Detected” and further use of the terminal will not be possible. If you observe the “Warning Detected” message, you should contact the terminal helpdesk immediately. You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy. -
Page 19: Cleaning The Terminal
5.4 Cleaning the terminal Unplug all the wires from terminal. Good rules for proper cleaning of the terminal are: Use a soft cloth that is very slightly soaked with soapy water to clean the outside of terminal. Do not clean the electricalconnections. ... - Page 20 equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
- Page 21 Under Innovation, Science and Economic Development Canada regulations, this radio transmittermay only operate using an antenna of a type and maximum (or lesser) gain approved for thetransmitter by Innovation, Science and Economic Development Canada. To reduce potential radiointerference to other users, the antenna type and its gain should be so chosen that, theequivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successfulcommunication.
-
Page 22: Troubleshooting
Environment (WEEE, Batteries and packaging) This product is labeled in accordance with European Directives 2012/19/EU concerning Waste Electrical and Electronic Equipment (WEEE) and 2013/56/EU concerning Batteries and Accumulators. Those provisions are requiring producers and manufacturers to become liable for take-back, treatment and recycling upon end of life of equipment and batteries. - Page 23 If there is still problem, please contact our customer service center. This Document is Copyright © 2020 by ingenico Group. ingenico retains full copyright ownership, rights and protection in all material contained in this document. The recipient can receive this document on the condition that he will keep the document confidential and will not use its contents in any form or by any means, except as agreed beforehand, without the prior written permission of ingenico.
- Page 24 All trademarks used in this document remain the property of their rightful owners. WWW.ingenico.com 28-32,Boulevard de Grenelle, 75015 PARIS - FRANCE/ (T)+33(0)1 58 01 80 00 / (F)+33 (0)1 58 01 91 35 Ingenico-SA au capital de 47 656 332 / 317 218 758 RCS Nanterre.
