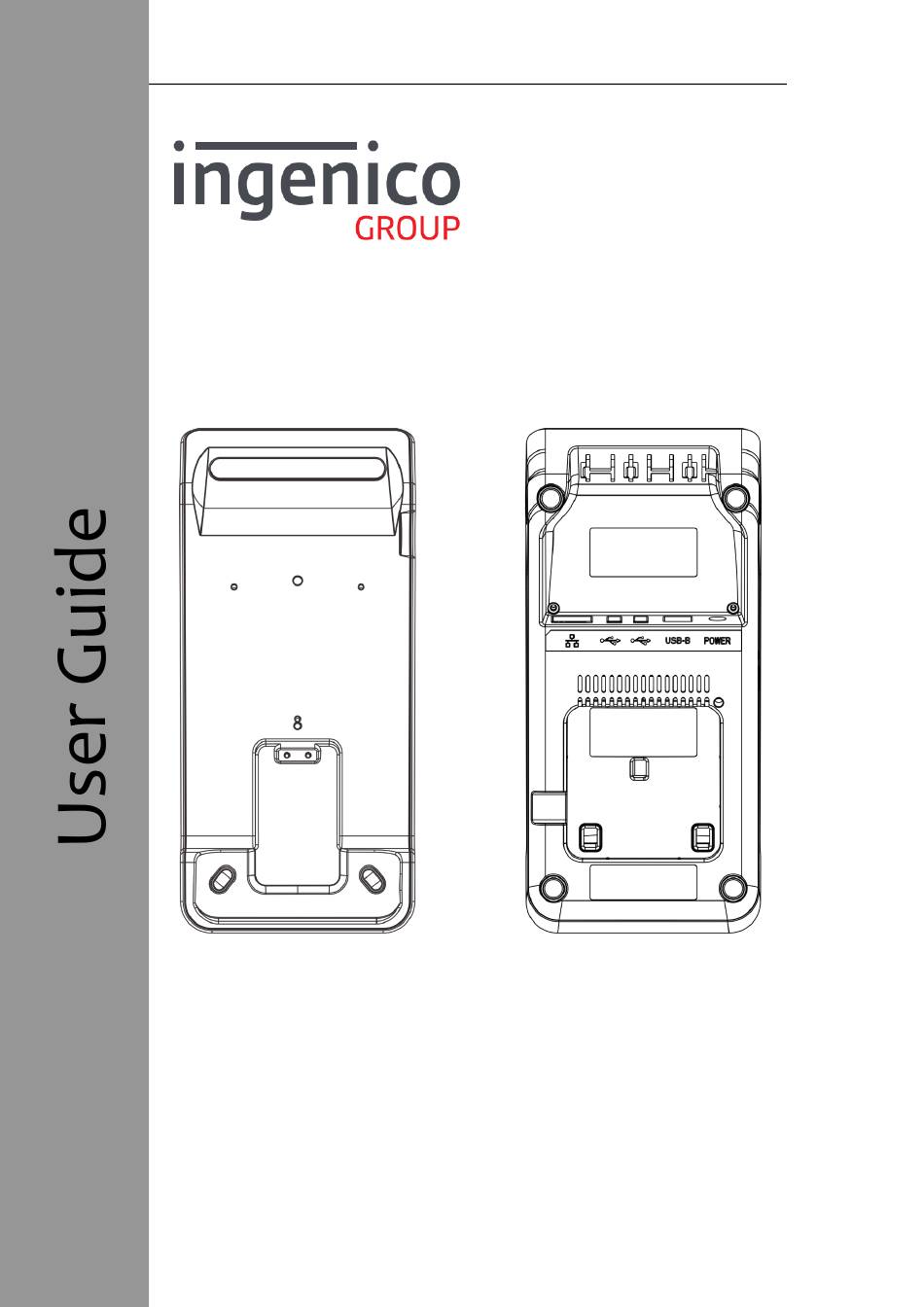

Model: AXIUM DX8000-BASE-W2
WWW.ingenico.com
28-32,boulevard de Grenelle, 75015 Paris - France/ (T)+33(0)1 58 01 80 00 / (F)+33 (0)1 58 01 91 35
Ingenico-SA au capital de 47 656 332 / 317 218 758 RCS Nanterre
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXIUM DX8000-BASE-W2 and is the answer not in the manual?

Questions and answers

Devi
January 28, 2025

Is it Support DX4000/DX8000 to automatically switch between access points.

Subscribe to Our Youtube Channel

Summary of Contents for Ingenico group AXIUM DX8000-BASE-W2

  • Page 1 Model: AXIUM DX8000-BASE-W2 WWW.ingenico.com 28-32,boulevard de Grenelle, 75015 Paris - France/ (T)+33(0)1 58 01 80 00 / (F)+33 (0)1 58 01 91 35 Ingenico-SA au capital de 47 656 332 / 317 218 758 RCS Nanterre...
  • Page 2: Table Of Contents

    Contents 1. Product Introduction ............................3 1.1 Open Package Inspection ..........................3 1.2 Device Introduction ............................. 3 1.3 Interface definition ............................3 2. Product Technology Features ........................... 4 2.1 Product Technology Specifications ......................4 2.2 Environmental Conditions .......................... 5 2.3 Product Functions ............................5 3.
  • Page 3: Product Introduction

    1. Product Introduction 1.1 Open Package Inspection Open the package to check if there are any disabling masks or transportation damage in the terminals and fittings. Procedures: 1) Open the package 2) Check the following items(Subject to actual product configuration) ...
  • Page 4: Product Technology Features

    Sequence RJ45 Signal ETH_TX+ ETH_TX- ETH_RX+ ETH_RX- 2) USB-TYPE A interface Sequence USB-TYPE A Signal VBUS 5.0V 3) USB-TYPE B interface Sequence USB-TYPE B Signal Not connect 2. Product Technology Features 2.1 Product Technology Specifications...
  • Page 5: Environmental Conditions

    a DC12V JACK port a RJ45 network port Port two USB A HOST port supporting USB2.0 a USB B DEVICE port supporting USB2.0 Every USB HOST output: 5.0VDC 0.5A Power Charge output: 5.0VDC 2.0A Power adapter: input 100-240V AC, 50/60Hz; output 12V DC 3.33A Size:193.8mmx89mmx38.6mm Size and Weight Net Weight:0.20kg...
  • Page 6: Wifi Connection

    3. WiFi connection 3.1 Connect DX8000 to the base WiFi  Power on the base.  Check the SSID and password from the label on the back of base.  Click “Settings” menu on DX8000,and then click “Network and Internet”, enter “ Wi-Fi” and select the base SSID to connect.(step 1~4) ...
  • Page 7  User can get and change the Ethernet parameter on the Network page.  User can get and change the WLAN parameter on the WLAN page.
  • Page 8  User can change the operating mode, enable DMZ or set static DHCP on the Advanced page.  User can update the firmware of base, save and reload the settings, change the password on the Manage page.
  • Page 9: Restore Factory Setting

    3.3 Restore factory Setting  Use sharp to click the RESET button to restore the factory setting of the base.  The position of RESET button is below. 4. Pairing connection  If DX8000 want to use the USB ports on the base, it should be paired to the base. 4.1 Prepare for Base Pairing ...
  • Page 10: Pair Method

     Illumination of two color indicator lights: Light Condition Base Status Red light on Base to be paired Green light flashing Base paired but disconnected with DX8000 Green light on Base paired and connected with DX8000 Red light flashing Base in upgrading 4.2 Pair method ...
  • Page 11: Ethernet Parameter Setting

     Enter WLAN menu.[Step1]  AXIUM DX8000-BASE-W2 has 2.4G WLAN and 5G WLAN,so we can click “2.4GHz WLAN” to set 2.4G parameter and click “5GHz WLAN” to set 5GHz WLAN. [Step2]  We can set channel, RF power, band width and get WLAN MAC on the menu. [Step3,4]...
  • Page 12: Advanced Setting

    Step 1 Step 2 Step 3 Step 4 4.6 Advanced Setting  Enter advanced menu.  We can set the operating mode,DMZ and static DHCP of the base[Chart 1].  In operating mode,we can set the base work in different mode [Chart 2]. ...
  • Page 13: Fixing Of The Base

     Second,we pair the base with DX8000 and enter management menu.We can get current version and lastest version information and click upload to upgrade the firmware[Step1]. Wait for updating. [Step2].And get the successful tips[Step3]. Check the version of the base[Step4]. [Step1] [Step2] [Step3]...
  • Page 14  If we want to unfix the base and DX8000,we can use screwdriver to push the area of the structure to unfix them.
  • Page 15: Faqs

    6. FAQs Q1: The base fails to connect DX8000.  Cause1:DX8000 WLAN is not yet opened.  Solution:Open WLAN via the drop-down box of DX8000.  Cause 2:DX8000 is placed too far away from base.  Solution:Place and pair the devices within 10 meters. ...
  • Page 16: Notes

    50cm from the wall, heat source, cold source, window or air inlet. 9. Power Adapter The base can only be connected to the adapter which is provided with AXIUM DX8000-BASE-W2. WARNING The power adapter provided is specially designed for ingenico AXIUM DX8000-BASE-W2. Do not use any other power supply.
  • Page 17: Standard

    10. Standard FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 18 Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
  • Page 19 This Document is Copyright © 2020 by ingenico Group. ingenico retains full copyright ownership, rights and protection in all material contained in this document. The recipient can receive this document on the condition that he will keep the document confidential and will not use its contents in any form or by any means, except as agreed beforehand, without the prior written permission of ingenico.
