1)
Introduction
2)
3)
4)
Unit Layout & Description
5)
Connection and Operation
6)
Connection Diagram
7)
KanexPro™ reserves the right to make changes in the hardware, packaging and any accompanying docu-
mentation without prior written notice

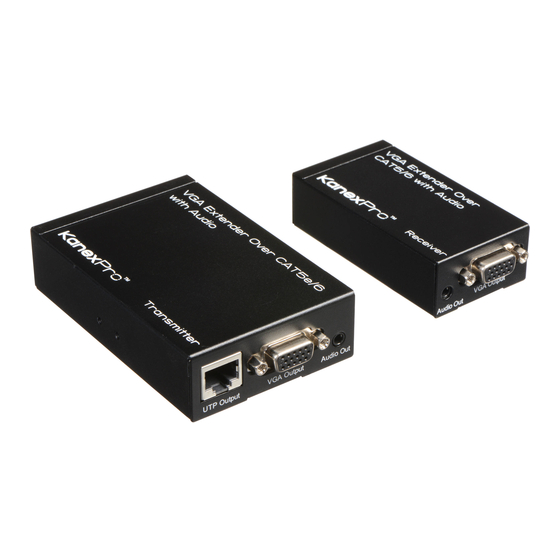

1x1 VGA Extender over CAT5/6 with Audio up to 1000ft. (300m)
The KanexPro VGA extender over a single CAT5e/6 cable is designed for routing high-resolution VGA
signals and stereo audio over remote distances up to 1,000ft (300m) Each receiver set features a separate
gain and peaking rotary switch used in adjusting brightness and skew over long distances The 15-pin
HD connectors are convenient and cost-effective for all input/ output connections supporting full band-
width compatible from VGA to WUXGA graphics card resolutions and HDTV's to projectors In addi-
tion, each output performs a separate buffering to maintain signal integrity and reject noise interference
Features:
• Extend high-resolution VGA signal with audio over a single Cat5E/6 cable up to 1,000 feet (300m)
• Adjust GAIN and PEAK levels to adapt for variable lengths of UTP cable on the receiver
• Supports maximum resolutions up to WUXGA (1920x1200@60Hz)
• Stereo audio through 3.5mm jack
• Dual output for transmitter: VGA for local display and 1 x Cat5e/6
• EDID Compliant
• Rack or under-desk mountable
• 5VDC external power supply included
TM
Setup Guide
Table of Contents
Notice
1
Introduction
1
VGAEXTX1
1
2
2
3
4
4
5
Advertisement
Table of Contents
Related Manuals for KanexPro VGAEXTX1
Summary of Contents for KanexPro VGAEXTX1
- Page 1 Connection and Operation Connection Diagram Warranty Notice KanexPro™ reserves the right to make changes in the hardware, packaging and any accompanying docu- mentation without prior written notice Introduction 1x1 VGA Extender over CAT5/6 with Audio up to 1000ft. (300m) The KanexPro VGA extender over a single CAT5e/6 cable is designed for routing high-resolution VGA...
- Page 2 Specifications Transmitter(TX) Interface: Input: VGA x1/3 5mm Stereo x1 Output: Cat 5e/6 x1/VGA Output (Local) x1/3 5mm Stereo x1 Receiver (Rx) Input: Cat 5e/6 x1 Output: VGA x1/3 5mm Stereo x1 Operating Frequency: Vertical Frequency Range 60/75/85Hz Resolutions (PC): 640x480 800x600 1024x768 1280x720 1280x768 1280x960 1280x1024 1600x900...
- Page 3 Unit Layout & Description VGA Input Transmitter Front Back VGA Input VGA Input VGA Output Output VGA Input VGA Input Cat5e/6 Output a. Connect to the Cat5e/6(UTP) input on the Receiver unit. VGA Output Output Video/Audio Output Connect to VGA display (TV, Monitor, Projector, etc) using a VGA 15 pin Male to Male cable for video and 3 5mm Stereo Male to Male cable for audio Video/Audio Input Power...
- Page 4 Connection and Operation Connect VGA source(PC, laptop, etc) and the 3 5mm audio cable to the VGA and stereo audio input of the VGA Extender Tx unit 2) Connect CAT5 output from the Tx to the VGA Extender Rx unit using a UTP Cat5e/6 cable. Plug local VGA display to the VGA Output and Audio Out on the Tx unit 4) Connect VGA display(Monitor, Projector, etc) to the VGA output on the Rx unit as well as the audio out to the display 5) Add power supplies to the Tx and Rx units.
- Page 5 KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro option, either return of the price paid for the product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customer’s receipt This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication Any replace-...
