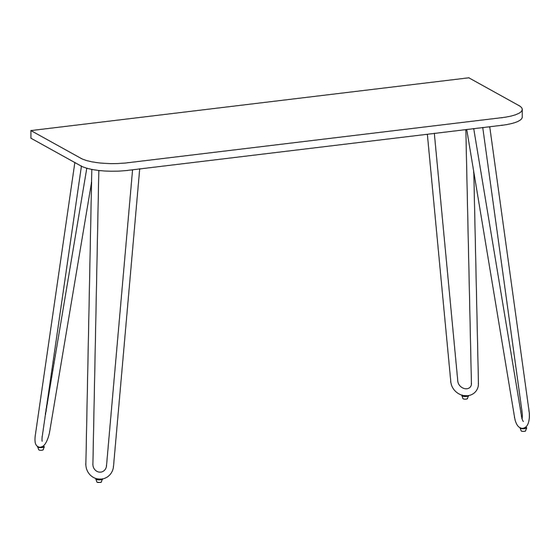

Lewis Console Table
A
B
x16
x3
x4
1
2
3
3
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
C
D
x1
3
3
WARNING: Any furniture that is not anchored to a wall has
the potential to tip over in certain circumstances, ie. if a
child attempts to climb on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Advertisement
Table of Contents
Related Manuals for Mocka Lewis
Summary of Contents for Mocka Lewis
- Page 1 Lewis Console Table WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, ie. if a child attempts to climb on the furniture or in the event of an earthquake. Accordingly, we recommend that all furniture is anchored to a wall.
- Page 2 Lewis Console Table Attach 2 x legs (3) to table (1) as shown and secure with 8 x bolts (A). Tighten Attach 2 x legs (3) to table (1) as shown and secure with 8 x bolts (A). Tighten with an Allen Key (D).
- Page 3 Lewis Console Table Attach 1 x beam (2) and 4 x feet rests (C) to assembled frame as shown and Once assembled lift furniture into place, do not drag. Ensure unit is secure with 3 x screws (B). Tighten with an Allen Key (D).
